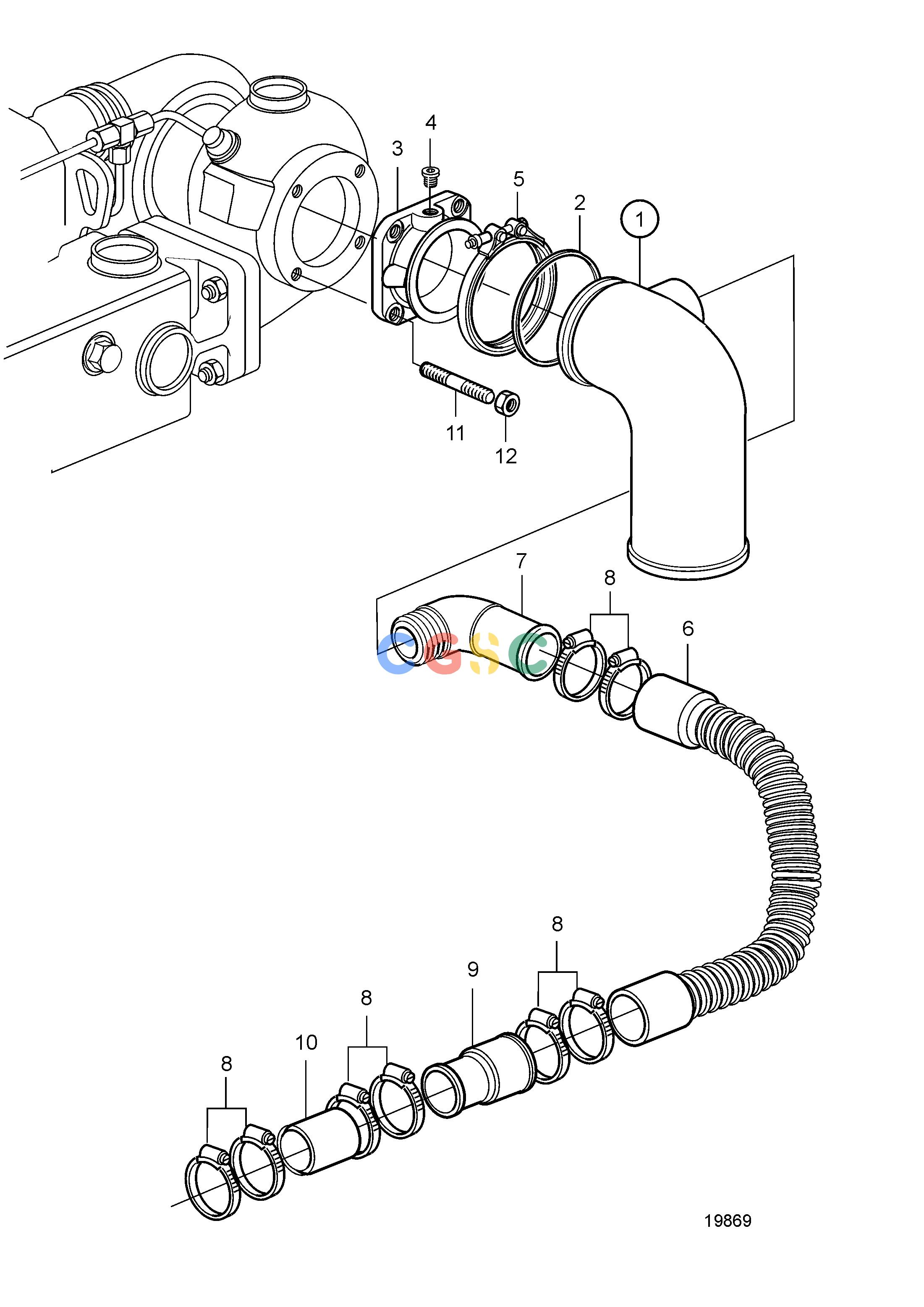

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAIntake and Exhaust SystemWet Exhaust Line 5'' (127mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3830988
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
|
|
|
Not interchangeable.
|
| 3. |
3835923
|
[1] |
Adapter
|
|
| 4. |
952075
|
[1] |
Plug
|
|
| 5. |
3807212
|
[1] |
V-clamp
|
(3838942)
|
| 6. |
3886729
|
[1] |
Hose
|
D7 ZF 220, ZF 280., L=576mm
|
| 7. |
848420
|
[1] |
Hose connection
|
|
| 8. |
988031
|
[8] |
Clamp
|
|
| 9. |
3838494
|
[1] |
Pipe
|
|
| 10. |
858471
|
[1] |
Hose
|
|
| 11. |
888785
|
[4] |
Stud
|
|
| 12. |
20412308
|
[4] |
Hexagon nut
|
|
