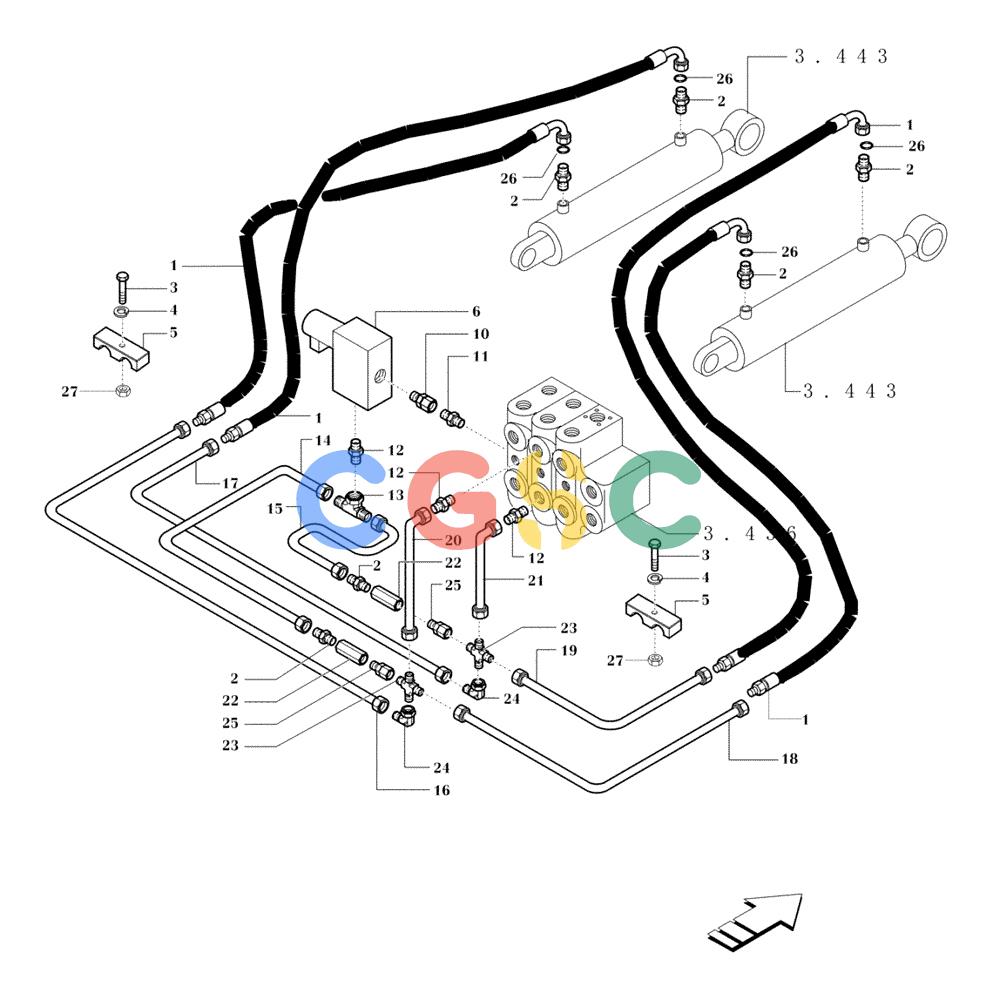

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.440[01A]) - LIFT CYLINDERS PIPING (DC70 - STD S/N 13041067 & DOWN) (DC80 - STD 13141055 & DOWN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598637 | [4] | FLEXIBLE HOSE | MAC |
| 1. | 76591170 | [4] | HOSE | MACFLEXIBLE |
| 2. | 76590982 | [6] | HYD CONNECTOR | MAC |
| 3. | 76590845 | [2] | SCREW | MAC |
| 4. | 76598290 | [2] | LOCK WASHER | MACLOCK Superseded by part number: 11194079 |
| 5. | 76591174 | [2] | CLAMP | MAC |
| 6. | 76594898 | [1] | HYDRAULIC VALVE | MAC- ASSY. SEE FIG. 3.440 (02) |
| 10. | 76591003 | [1] | HYD CONNECTOR | MAC |
| 11. | 76591169 | [1] | HYD CONNECTOR | MAC |
| 12. | 76591181 | [3] | HYD CONNECTOR | MAC |
| 13. | 76591182 | [1] | HYD CONNECTOR | MAC |
| 14. | 76595872 | [1] | RIGID TUBE | MAC |
| 15. | 76595873 | [1] | RIGID TUBE | MAC |
| 16. | 76591185 | [1] | HYD. TUBE | MAC |
| 17. | 76593245 | [1] | HYD. TUBE | MAC |
| 18. | 76591187 | [1] | HYD. TUBE | MAC |
| 19. | 76591188 | [1] | HYD. TUBE | MAC |
| 20. | 76598640 | [1] | RIGID TUBE | MAC |
| 21. | 76591190 | [1] | HYD. TUBE | MAC |
| 22. | 76591191 | [2] | CHECK VALVE | MAC |
| 23. | 76591192 | [2] | HYD CONNECTOR | MAC |
| 24. | 76591193 | [2] | HYD CONNECTOR | MAC |
| 25. | 76591194 | [2] | HYD CONNECTOR | MAC |
| 26. | 76596045 | [4] | SEAL | MACO-RING |
| 27. | 76590848 | [2] | NUT | MAC Superseded by part number: 15503611 |
