纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.443[01A]) - LIFT CYLINDERS DC70 - STD S/N 13041067 & DOWN,LGP S/N 13045015 & DOWN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
845 次

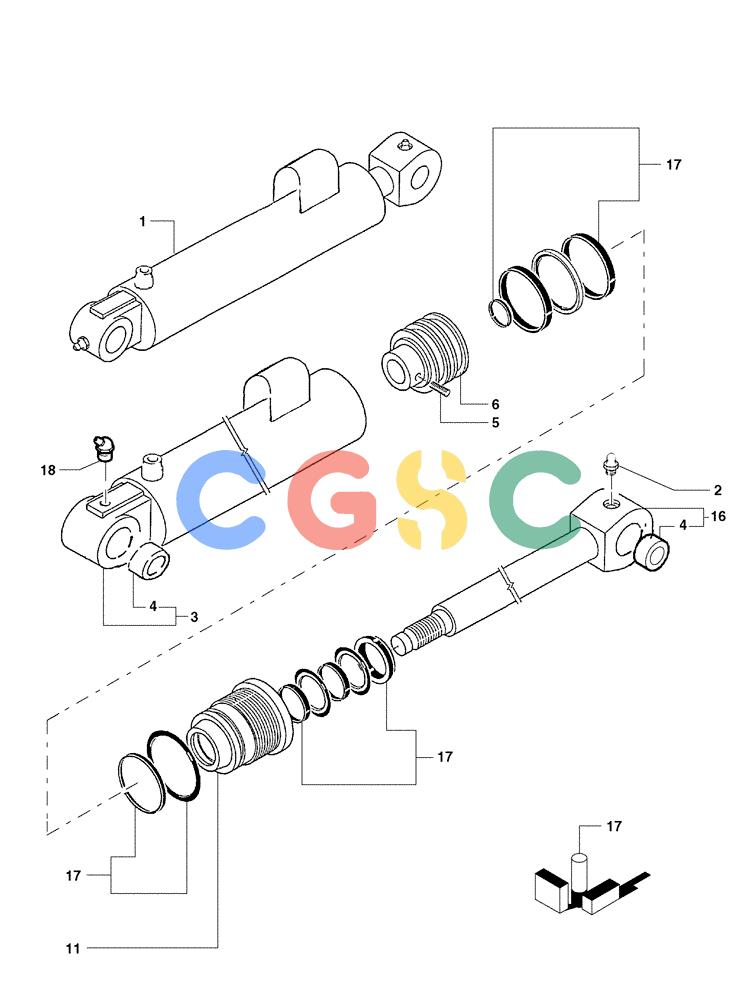

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598704 | [2] | CYLINDER | MACASSY. (DC70 - STD S/N 13041067 & DOWN; LGP S/N 13045015 & DOWN) (DC80 - STD S/N 13141055 & DOWN; LGP S/N 13145015 & DOWN) |
| 2. | 76591112 | [1] | LUBE NIPPLE | MAC |
| 3. | 76593246 | [1] | BARREL | MAC |
| 4. | 76591221 | [2] | SLEEVE | MAC |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76598709 | [1] | PISTON | MAC |
| 11. | 76598710 | [1] | BUSHING | MAC |
| 16. | 76598711 | [1] | ROD | MAC |
| 17. | 76598712 | [1] | KIT | MAC |
| 18. | 76598253 | [1] | LUBE NIPPLE | MAC Superseded by part number: 13408411 |
