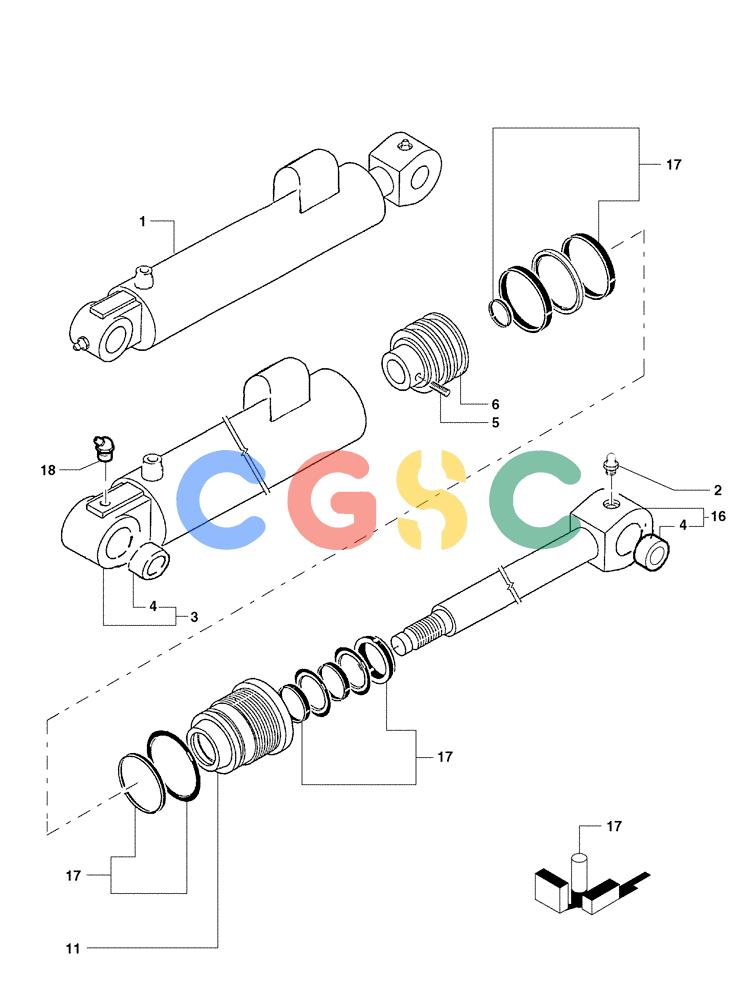

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.443[01B]) - LIFT CYLINDERS DC70 STD FROM S/N 13041068,LGP FROM S/N 13045016 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76609697 | [2] | HYDRAULIC CYLINDER | MAC |
| 2. | 76591112 | [1] | LUBE NIPPLE | MAC |
| 3. | 76609698 | [1] | BARREL | MAC |
| 4. | 76595885 | [2] | BUSHING | MAC |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76605923 | [1] | PISTON | MAC |
| 11. | 76605914 | [1] | BUSHING | MAC |
| 16. | 76609699 | [1] | ROD | MAC |
| 17. | 76605911 | [1] | SEAL KIT | MAC Superseded by part number: 8403291, 8210979, 8207016, Z282186, 6904034, BER4149142, A2982180, E1182158 |
| 18. | 76598253 | [1] | LUBE NIPPLE | MAC Superseded by part number: 13408411 |
| 19. | 76591034 | [1] | GASKET | MAC |
| 20. | 76591033 | [1] | PLUG | MAC |
