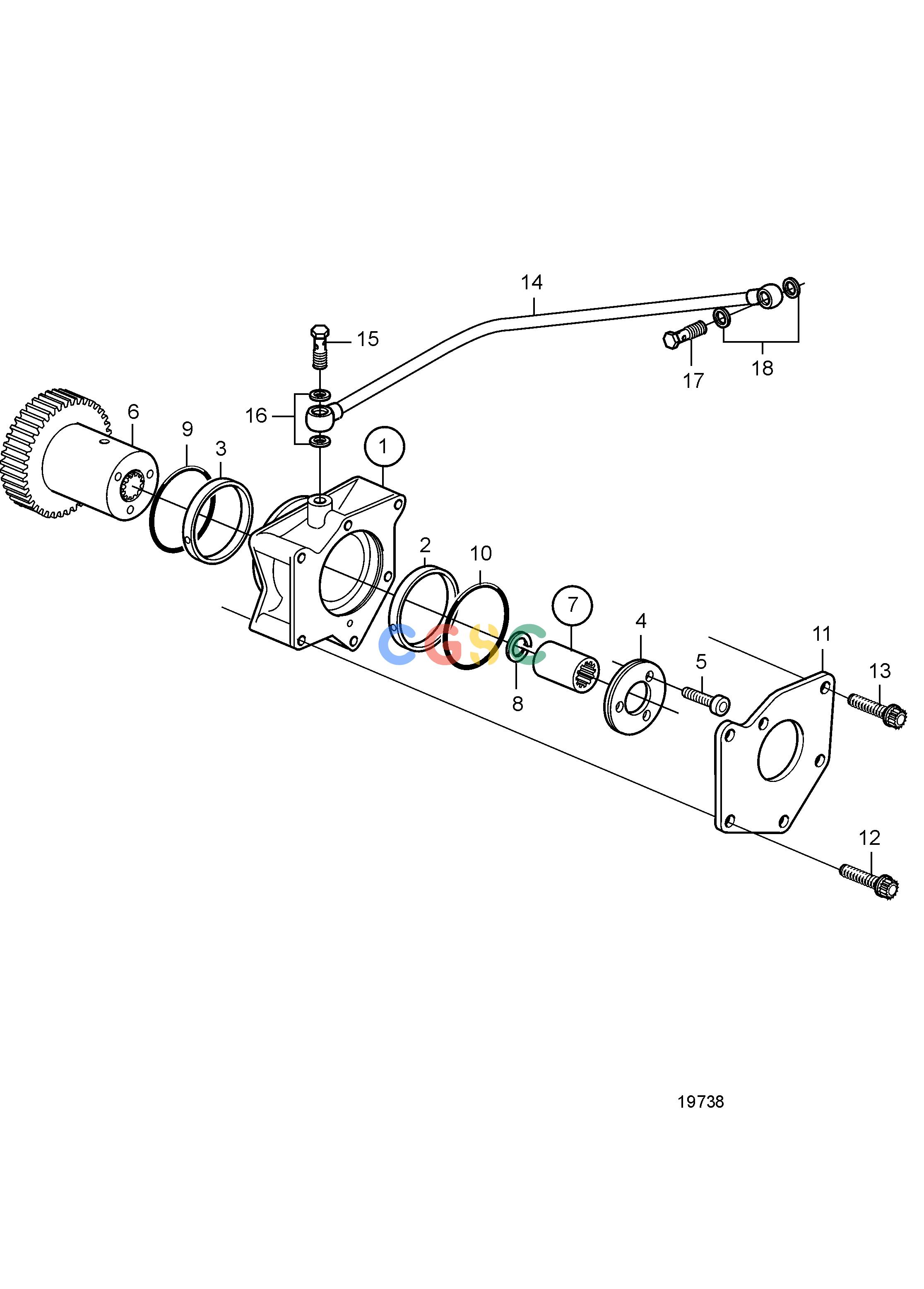

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAMiscellaneous EquipmentConnecting Kit for Hydraulic Pump, ''PTO A''. Serrated ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20460518
|
[1] |
Bearing flange
|
|
| 2. |
20450809
|
[1] |
Bushing
|
|
| 3. |
20450807
|
[1] |
Bushing
|
|
| 4. |
20450811
|
[1] |
Thrust washer
|
|
| 5. |
20450822
|
[3] |
Hex. socket screw
|
|
| 6. |
21090036
|
[1] |
Gear
|
|
| 6. |
21249485
|
[1] |
Gear
|
(21090036)
|
| 7. |
3586622
|
[1] |
Clutch flange
|
|
| 8. |
20464560
|
[1] |
Clip
|
|
| 9. |
20450818
|
[1] |
O-ring
|
|
| 10. |
20460524
|
[1] |
O-ring
|
|
| 11. |
3586621
|
[1] |
Adapter
|
|
| 12. |
20450820
|
[2] |
Six point screw
|
SN-1099412
|
| 12. |
21077470
|
[2] |
Hex. socket screw
|
SN1099413-
|
| 13. |
20450821
|
[2] |
Six point screw
|
|
| 14. |
20450980
|
[1] |
Oil line
|
|
| 15. |
25167
|
[1] |
Hollow screw
|
|
| 16. |
947281
|
[2] |
Gasket
|
|
| 17. |
980973
|
[1] |
Hollow screw
|
|
| 18. |
969011
|
[2] |
Gasket
|
|
