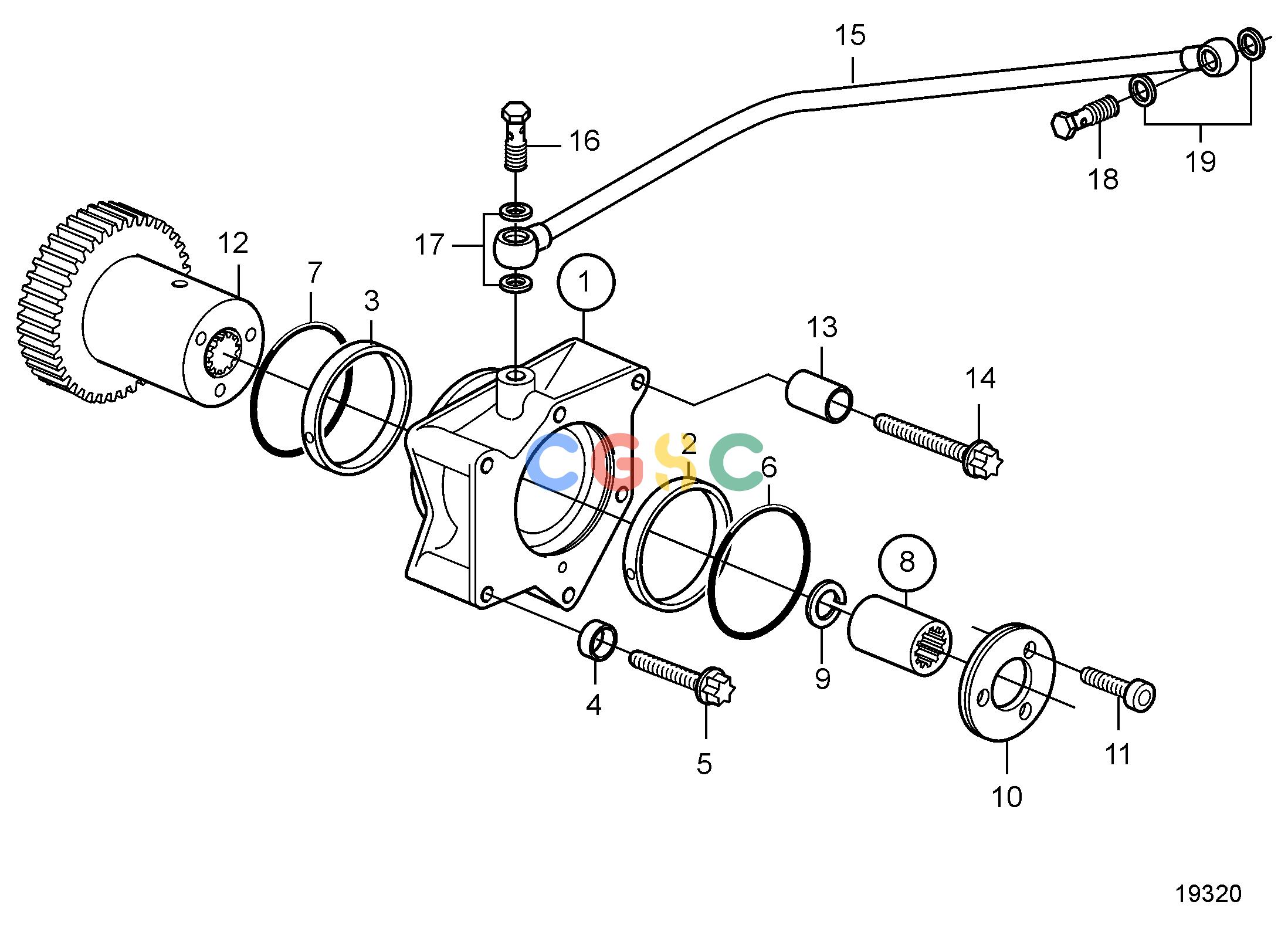

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAMiscellaneous EquipmentConnecting Kit for Hydraulic Pump, PTO A. 2-hole, SAE A, Shaft 9T-16/32DPEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20460518
|
[1] |
Bearing flange
|
PTO A, i=1: 1,116, below, to front.
|
| 2. |
20450809
|
[1] |
Bushing
|
|
| 3. |
20450807
|
[1] |
Bushing
|
|
| 4. |
20544299
|
[2] |
Spacer sleeve
|
|
| 5. |
20450820
|
[2] |
Six point screw
|
SN-1099412
|
| 5. |
21077470
|
[2] |
Hex. socket screw
|
SN1099413-
|
| 6. |
20460524
|
[1] |
O-ring
|
|
| 7. |
20450818
|
[1] |
O-ring
|
|
| 8. |
20460520
|
[1] |
Engaging sleeve
|
|
| 9. |
20460522
|
[1] |
E-circlip
|
|
| 10. |
20450811
|
[1] |
Thrust washer
|
|
| 11. |
20450822
|
[3] |
Hex. socket screw
|
|
| 12. |
20460519
|
[1] |
Gear
|
Replaced by 20958540
|
| 12. |
20958540
|
[1] |
Gear
|
|
| 13. |
20459936
|
[2] |
Bushing
|
|
| 14. |
20450821
|
[2] |
Six point screw
|
|
| 15. |
20450980
|
[1] |
Oil line
|
|
| 16. |
25167
|
[1] |
Hollow screw
|
|
| 17. |
947281
|
[2] |
Gasket
|
|
| 18. |
980973
|
[1] |
Hollow screw
|
|
| 19. |
969011
|
[2] |
Gasket
|
|
