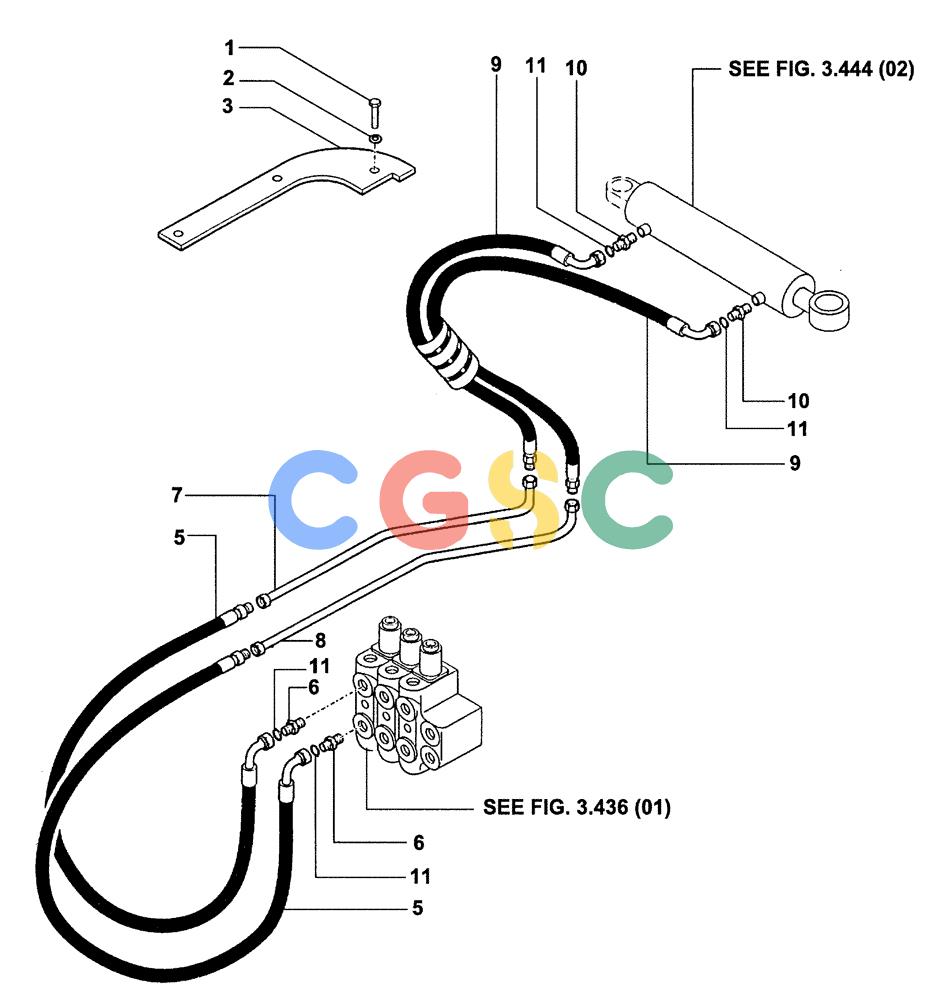

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.444[01A]) - CONTROL VALVE DISTRIBUTEUR - TILT DC70 FROM S/N 13041002 - S/N 13041067,LGP UP TO S/N 13045015 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590928 | [3] | SCREW | MAC Superseded by part number: 16043824 |
| 2. | 76598290 | [3] | LOCK WASHER | MAC Superseded by part number: 11194079 |
| 3. | 76598426 | [1] | SHIELD | MAC |
| 5. | 76591212 | [2] | HOSE | MAC |
| 6. | 76591181 | [2] | HYD CONNECTOR | MAC |
| 7. | 76598629 | [1] | RIGID TUBE | MACHOSE |
| 8. | 76598630 | [1] | RIGID TUBE | MACHOSE |
| 9. | 76591170 | [2] | HOSE | MAC |
| 10. | 76590982 | [2] | HYD CONNECTOR | MAC |
| 11. | 76596045 | [4] | SEAL | MACO-R |
