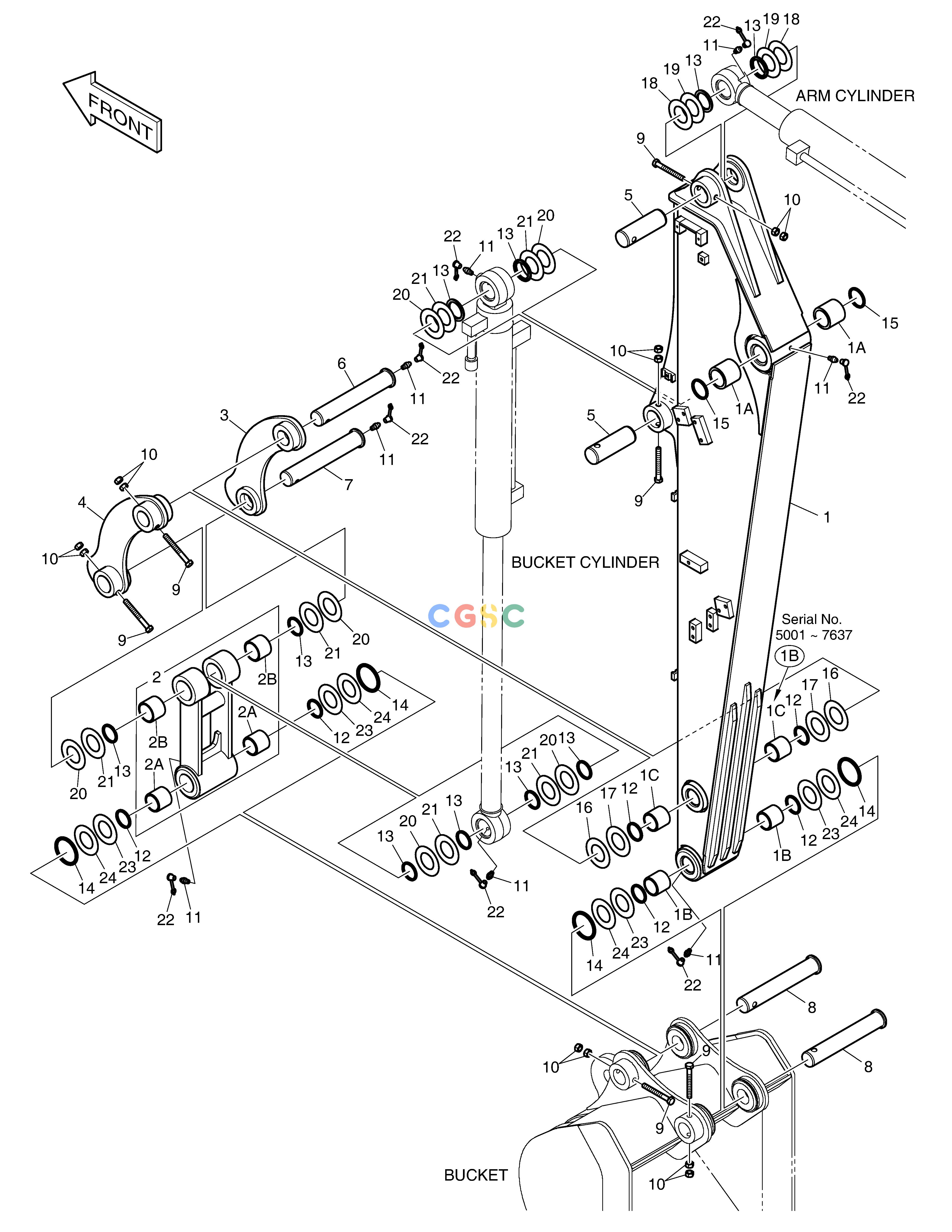

斗山零件查询ARM - 1.9m DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046392A
|
[-] |
ARM ASS'Y
|
|
| -. |
230201-00151
|
[-] |
|
|
| 1. |
K1046393
|
[1] |
ARM;MACH(1.9m)
|
K1046393A
|
| 1. |
K1046393A
|
[1] |
ARM;MACH(1.9m)
|
230204-00244
|
| 1. |
230204-00244
|
[1] |
|
230204-00244A
|
| 1. |
230204-00244A
|
[1] |
|
230204-00244B
|
| 1. |
230204-00244B
|
[1] |
|
|
| 10. |
S4012733
|
[12] |
NUT
|
|
| 11. |
S6710041
|
[8] |
NIPPLE,GREASE
|
|
| 12. |
2180-1106BD11
|
[6] |
SEAL;DUST
|
|
| 13. |
2180-1106BD12
|
[10] |
SEAL;DUST
|
|
| 14. |
180-00077D1
|
[4] |
O-RING
|
DS2855001
|
| 14. |
DS2855001
|
[4] |
RING,O
|
|
| 15. |
2180-1106BD1
|
[2] |
SEAL;DUST
|
|
| 16. |
DS7752081
|
[2] |
SHIM
|
|
| 17. |
DS7752082
|
[2] |
SHIM
|
|
| 18. |
DS7752083
|
[2] |
SHIM
|
|
| 19. |
DS7752084
|
[2] |
SHIM
|
|
| 1A. |
K1026049
|
[2] |
BUSHING
|
K1026049A
|
| 1A. |
K1026049A
|
[2] |
BUSHING
|
131008-00098
|
| 1A. |
131008-00098
|
[2] |
|
131004-00193A
|
| 1A. |
131004-00193A
|
[2] |
|
|
| 1B. |
K1026050
|
[4] |
BUSHING
|
K1026050A
|
| 1B. |
K1026050A
|
[4] |
BUSHING
|
131008-00113
|
| 1B. |
131008-00113
|
[4] |
|
|
| 1B. |
131008-00157
|
[2] |
|
|
| 1C. |
131008-00149
|
[2] |
|
|
| 2. |
K1025244
|
[1] |
LINK;PUSH
|
K1025244A
|
| 2. |
K1025244A
|
[1] |
LINK;PUSH
|
101541-00089
|
| 2. |
101541-00089
|
[1] |
|
|
| 20. |
DS7752087
|
[6] |
SHIM
|
|
| 21. |
DS7752088
|
[6] |
SHIM
|
|
| 22. |
160-00020
|
[8] |
CAP
|
|
| 23. |
2114-1059D160
|
[4] |
SHIM
|
|
| 24. |
2114-1059D161
|
[4] |
SHIM
|
|
| 2A. |
K1026050
|
[2] |
BUSHING
|
K1026050A
|
| 2A. |
K1026050A
|
[2] |
BUSHING
|
131008-00113
|
| 2A. |
131008-00113
|
[2] |
|
|
| 2B. |
K1026051
|
[2] |
BUSHING
|
K1026051A
|
| 2B. |
K1026051A
|
[2] |
BUSHING
|
131008-00114
|
| 2B. |
131008-00114
|
[2] |
|
|
| 3. |
155-00016B
|
[1] |
LINK;GUIDE(R.H)
|
|
| 4. |
155-00017C
|
[1] |
LINK;GUIDE(L.H)
|
|
| 5. |
2123-2250A
|
[2] |
PIN
|
120501-01022
|
| 5. |
120501-01022
|
[2] |
|
120501-02588
|
| 5. |
120501-02588
|
[2] |
|
|
| 6. |
K1033123
|
[1] |
PIN
|
120501-01023
|
| 6. |
120501-01023
|
[1] |
|
120501-02617A
|
| 6. |
120501-02617A
|
[1] |
|
|
| 7. |
K1033124
|
[1] |
PIN
|
120501-01024
|
| 7. |
120501-01024
|
[1] |
|
120501-02618A
|
| 7. |
120501-02618A
|
[1] |
|
|
| 8. |
2123-2391A
|
[2] |
PIN
|
120501-00324
|
| 8. |
120501-00324
|
[2] |
|
120501-02619
|
| 8. |
120501-02619
|
[2] |
|
|
| 9. |
S0561866
|
[6] |
BOLT
|
|
