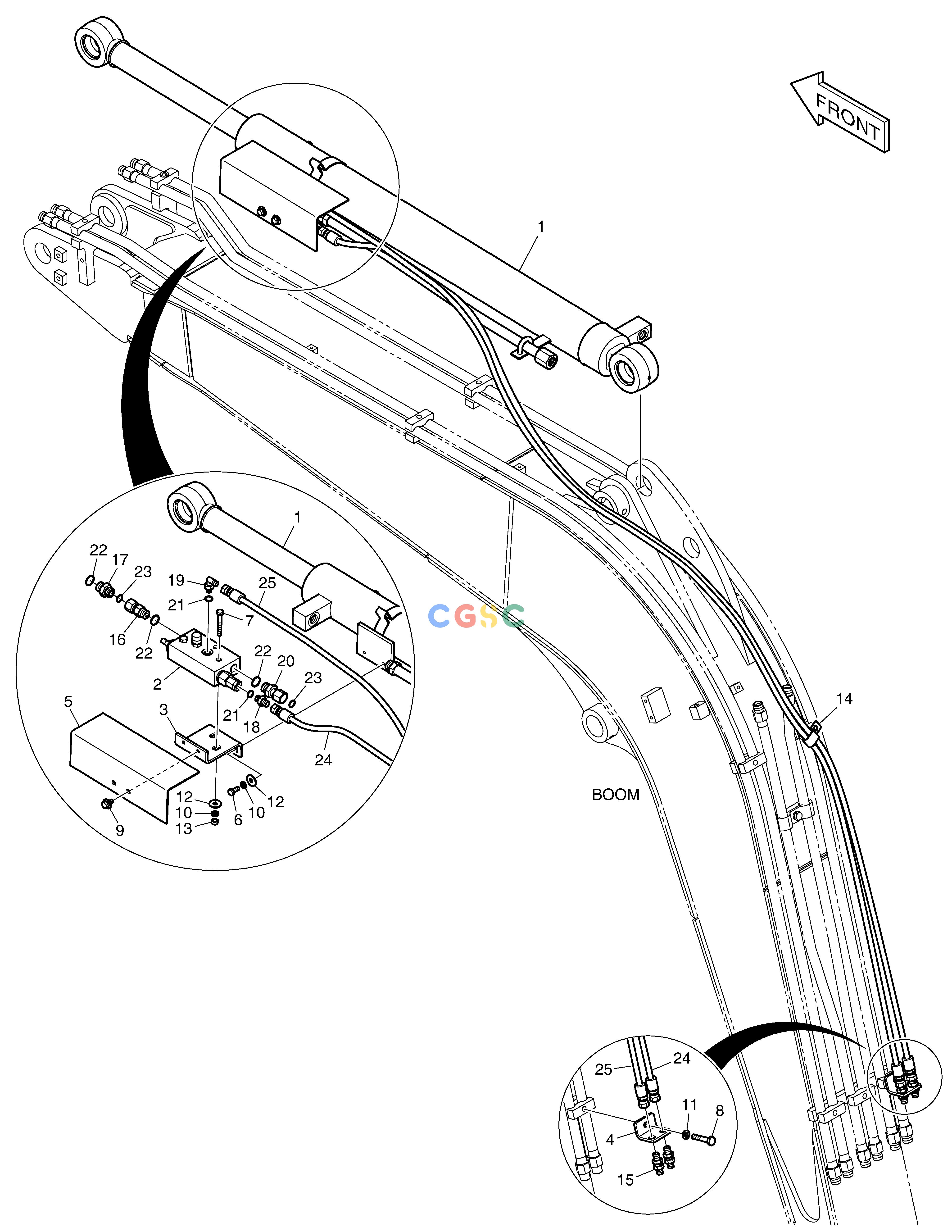

斗山零件查询ARM PIPING - LOCK VALVE DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07673
|
[-] |
|
|
| 1. |
400305-00270
|
[1] |
|
400305-00270A
|
| 1. |
400305-00270A
|
[1] |
|
|
| 10. |
S5102503
|
[4] |
. WASHER
|
|
| 11. |
S5102603
|
[1] |
. WASHER
|
|
| 12. |
2114-1058D29
|
[4] |
WASHER
|
|
| 13. |
S4012533
|
[2] |
NUT
|
|
| 14. |
DS2805009
|
[1] |
CLIP
|
DS2876013
|
| 14. |
DS2876013
|
[1] |
CLIP
|
|
| 15. |
181-00020
|
[2] |
ADAPTER
|
|
| 16. |
DS2235002
|
[1] |
ADAPTER
|
|
| 17. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 18. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 19. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 2. |
410114-00217
|
[1] |
|
|
| 20. |
DS2236004
|
[1] |
|
|
| 21. |
S8000111
|
[2] |
O-RING
|
|
| 22. |
S8000181
|
[3] |
O-RING
|
|
| 23. |
S8030081
|
[2] |
O-RING
|
|
| 24. |
DS20531232
|
[1] |
|
|
| 25. |
DS20531233
|
[1] |
|
|
| 3. |
110406-02269
|
[1] |
|
|
| 4. |
K1033141
|
[1] |
BRACKET
|
|
| 5. |
110508-11793
|
[1] |
|
|
| 6. |
S0508866
|
[2] |
BOLT
|
|
| 7. |
S0556566
|
[2] |
BOLT
|
|
| 8. |
S0558666
|
[1] |
BOLT
|
|
| 9. |
DS0025033
|
[2] |
BOLT
|
|
