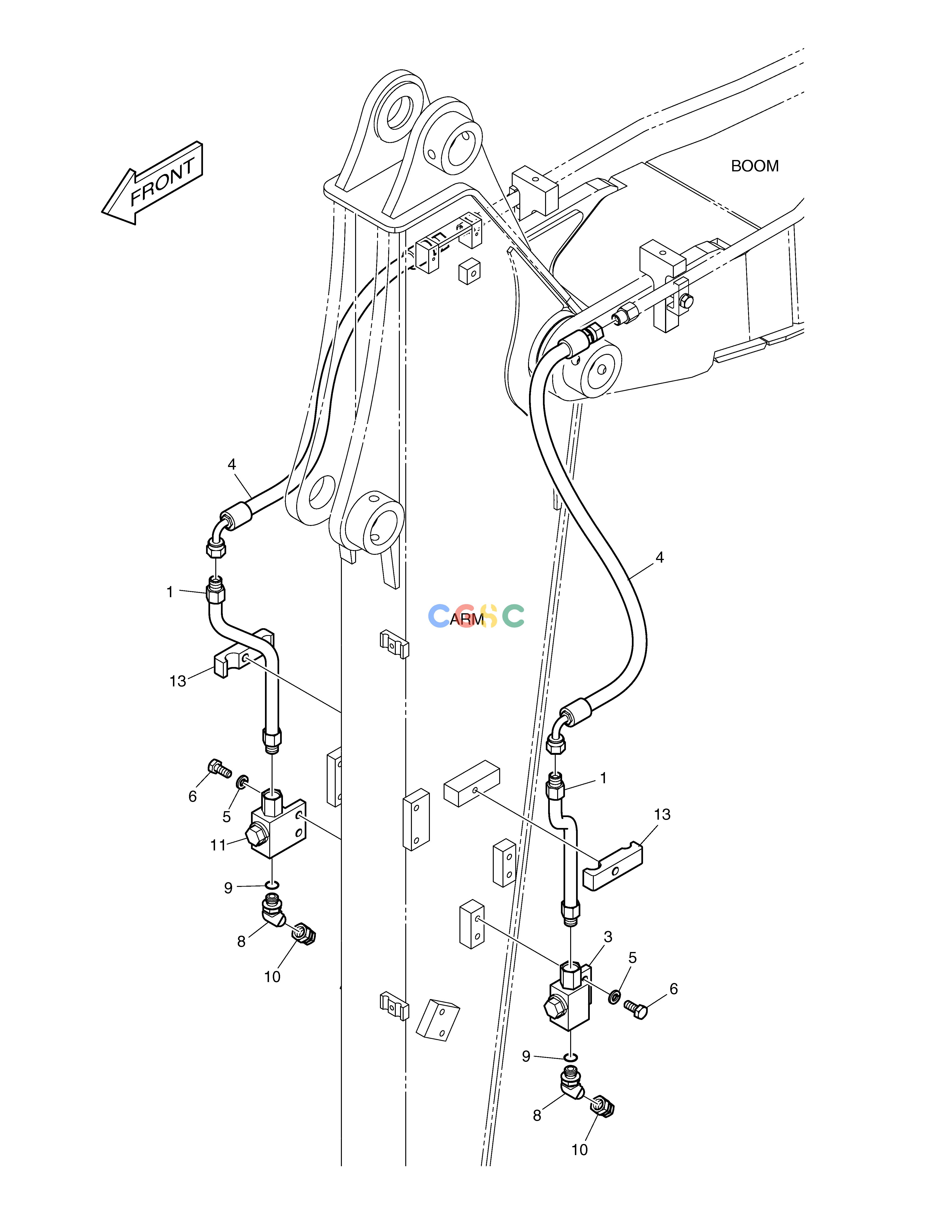

斗山零件查询ARM PIPING - ROTATING/TILTING(ARM 1.6m) DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1028637C
|
[-] |
ARM PIPING-ROTATION
|
|
| -. |
420212-10038
|
[-] |
|
|
| 1. |
K1027922B
|
[2] |
PIPE
|
|
| 10. |
2181-2820D2
|
[2] |
PLUG
|
|
| 11. |
K1033160
|
[1] |
VALVE;STOP
|
410137-00107
|
| 11. |
410137-00107
|
[1] |
|
|
| 13. |
K1027946A
|
[2] |
CLAMP
|
|
| 3. |
K1033159
|
[1] |
VALVE;STOP
|
410137-00105
|
| 3. |
410137-00105
|
[1] |
|
|
| 4. |
DS2093479
|
[2] |
HOSE
|
|
| 5. |
S5102603
|
[4] |
. WASHER
|
|
| 6. |
S0512066
|
[4] |
. BOLT
|
|
| 8. |
2181-2419D2
|
[2] |
ELBOW
|
|
| 9. |
S8000141
|
[2] |
O-RING
|
|
