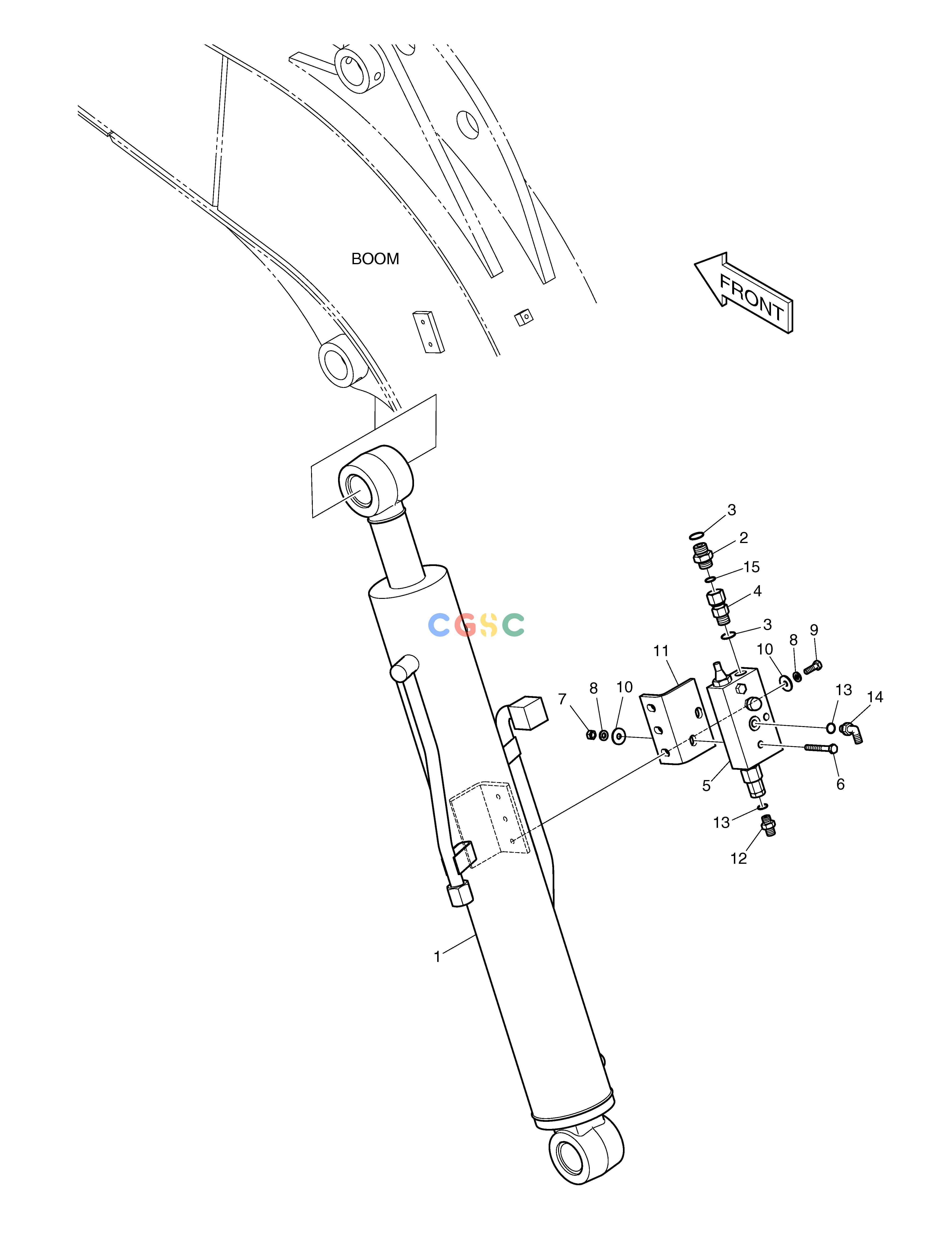

斗山零件查询BOOM PIPING - LOCK VALVE DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1029261C
|
[-] |
BOOM PIPING;LOCK VALVE
|
|
| -. |
420212-00648
|
[-] |
|
|
| 1. |
K1027523A
|
[1] |
CYLINDER;BOOM
|
K1027523B
|
| 1. |
K1027523B
|
[1] |
CYLINDER;BOOM
|
K1027523C
|
| 1. |
K1027523C
|
[1] |
CYLINDER;BOOM
|
400309-00019
|
| 1. |
400309-00019
|
[1] |
|
400309-00019A
|
| 1. |
400309-00019A
|
[1] |
|
|
| 1. |
400309-00019C
|
[1] |
|
400309-00019E
|
| 1. |
400309-00019E
|
[1] |
|
|
| 10. |
2114-1058D29
|
[5] |
WASHER
|
|
| 11. |
195-01454A
|
[1] |
BRACKET
|
|
| 11. |
110406-02890
|
[1] |
|
|
| 12. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 14. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 15. |
S8030081
|
[1] |
O-RING
|
|
| 2. |
2181-4133D3
|
[1] |
ADAPTER
|
DS2232012
|
| 2. |
DS2232012
|
[1] |
ADAPTER
|
|
| 3. |
S8000181
|
[2] |
O-RING
|
|
| 4. |
DS2235002
|
[1] |
ADAPTER
|
|
| 5. |
426-00143
|
[1] |
VALVE;LOCK
|
|
| 6. |
S0556666
|
[2] |
BOLT
|
|
| 7. |
S4012533
|
[2] |
NUT
|
|
| 8. |
S5102503
|
[5] |
. WASHER
|
|
| 9. |
S0509066
|
[3] |
BOLT
|
|
