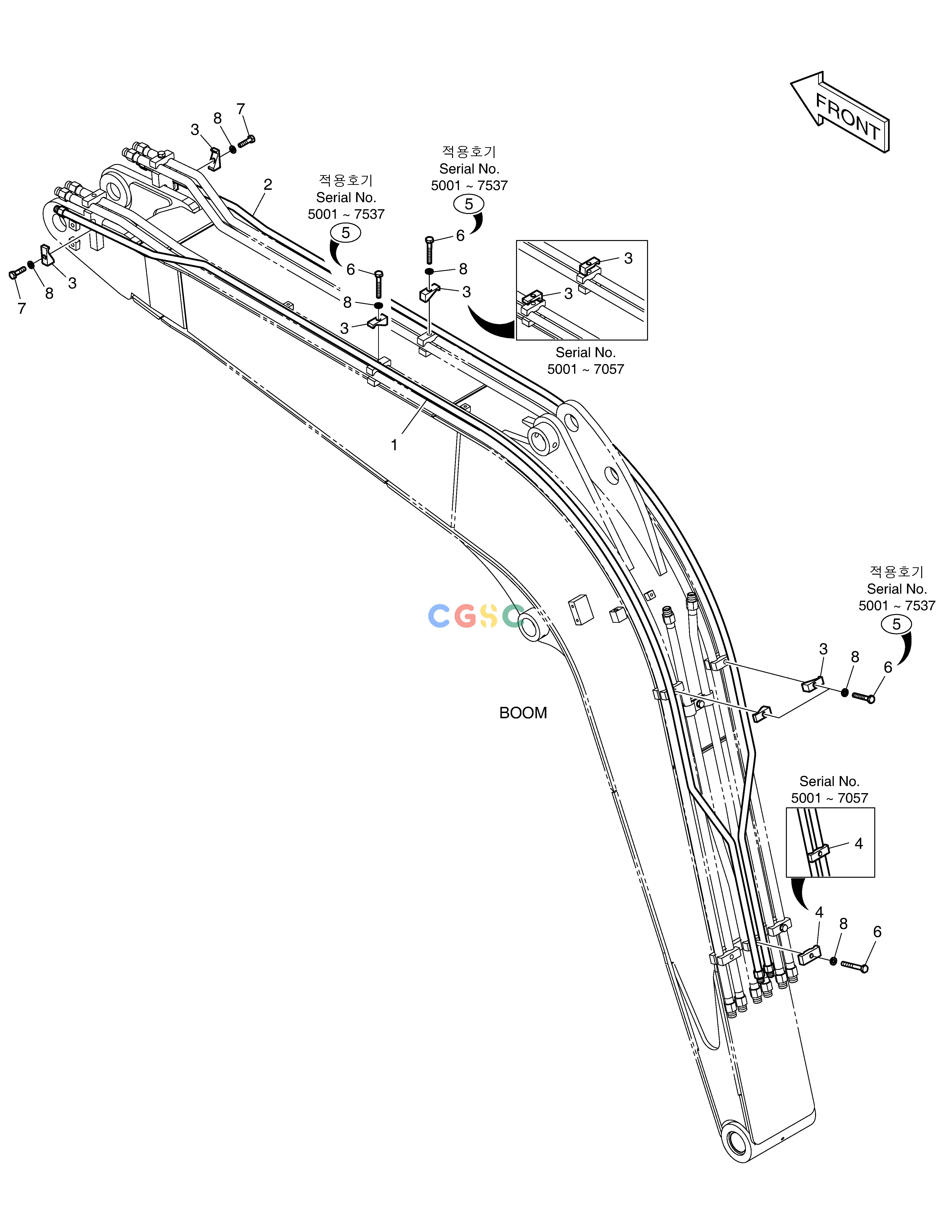

斗山零件查询BOOM PIPING - ROTATING/TILTING DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1028487A
|
[-] |
BOOM PIPING;RO&TILTING
|
|
| -. |
420212-05336
|
[-] |
|
|
| 1. |
K1027845A
|
[1] |
PIPE
|
|
| 1. |
420207-03193
|
[1] |
|
|
| 2. |
K1027846A
|
[1] |
PIPE
|
|
| 2. |
420207-02904
|
[1] |
|
|
| 3. |
K1027934
|
[6] |
CLAMP
|
120208-00157
|
| 3. |
120208-00157
|
[6] |
|
|
| 4. |
K1027936
|
[1] |
CLAMP
|
120208-00158
|
| 4. |
120208-00158
|
[1] |
|
|
| 5. |
S0558966
|
[4] |
BOLT
|
|
| 6. |
S0559066
|
[1] |
BOLT
|
|
| 6. |
S0559066
|
[5] |
BOLT
|
|
| 7. |
S0558366
|
[2] |
BOLT M10X1.5X40
|
|
| 8. |
S5102603
|
[7] |
. WASHER
|
|
