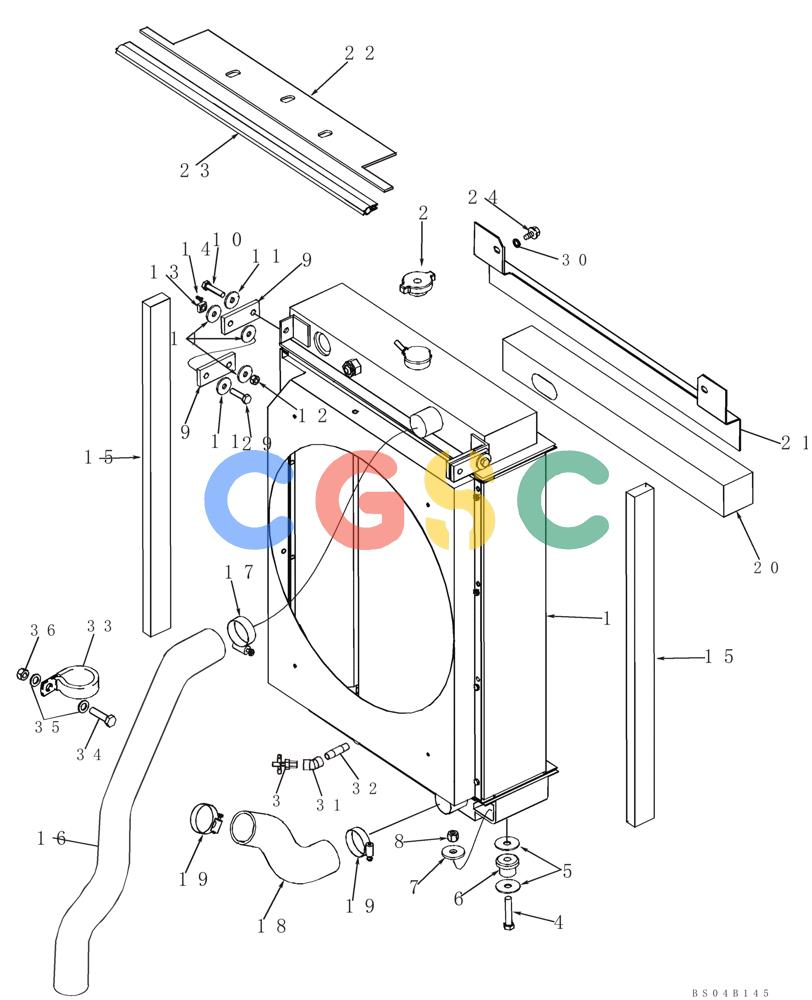

| 1. | 87449353 | [1] | RADIATOR | BURSee Figure 02-04 Superseded by part number: 84377348 |
| 2. | A170241 | [1] | RADIATOR CAP | CAS15 psi Superseded by part number: 83957211 |
| 3. | 217-92 | [1] | COCK | CAS1/4 Superseded by part number: 86625234 |
| 4. | 814-12060 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8 | CAS Superseded by part number: 9706693 |
| 5. | R40262 | [4] | WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk | CAS |
| 6. | R29799 | [2] | SHOCK ABSORBER | CASRubber |
| 7. | D25022 | [2] | WASHER | CAS |
| 8. | 832-10412 | [2] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 9. | 87441007 | [4] | STRAP | BURRadiator Mount |
| 10. | 827-10045 | [2] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9 | CAS Superseded by part number: 86508618 |
| 11. | 39519 | [10] | WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk | CAS |
| 12. | 832-41410 | [2] | NUT,M10 x 1.5, Cl 10 | CAS Superseded by part number: 86512554 |
| 13. | 309096A1 | [2] | SQUARE NUT | CASM10 Superseded by part number: 229197A1 |
| 14. | 336371A1 | [2] | PIN | CASNut Retainer |
| 15. | R53624 | [2] | PAD | CAS2 x 31-5/16; Adhesive Back |
| 16. | 87450954 | [1] | LARGE HOSE,44.50 mm ID x 390.70 mm, SAE 20R4 CLASS C | CASHOSE,LARGE Upper |
| 17. | 214-3140 | [2] | HOSE CLAMP,1-3/4" - 2-5/8", HD Worm | CAS Superseded by part number: 86637709 |
| 18. | 87431917 | [1] | LARGE HOSE,58.00 mm ID x 214.20 mm, SAE 20R4 CLASS C | CASHOSE,LARGE Lower |
| 19. | 214-3148 | [2] | HOSE CLAMP,2-1/4" - 3-1/8", HD Worm | CAS Superseded by part number: 86633352 |
| 20. | 366861A2 | [1] | SEAL | CAS690 mm (27-3/16 in); Adhesive Back |
| 21. | 87418012 | [1] | PLATE | BURLower Radiator Seal |
| 22. | 87439934 | [1] | PLATE | BURLower Radiator |
| 23. | 432943A1 | [1] | SEAL | BUR673 mm |
| 24. | 614-8016 | [2] | BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 16043224 |
| 29. | 827-10040 | [2] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43248 |
| 30. | 87016617 | [2] | LOCK WASHER,M8 | RAC Superseded by part number: 83990583 |
| 31. | 87025801 | [1] | ELBOW | BUR45 Deg. Elbow |
| 32. | 221-1137 | [1] | PIPE,Nipple, 1/4" NPT x 2" | CAS1/4 x 2 Superseded by part number: 221-137 |
| 33. | R57155 | [1] | CLAMP | CASUpper Radiator Hose |
| 34. | 614-8025 | [1] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 35. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 36. | 832-10408 | [1] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
