纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-04) - RADIATOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
845 次

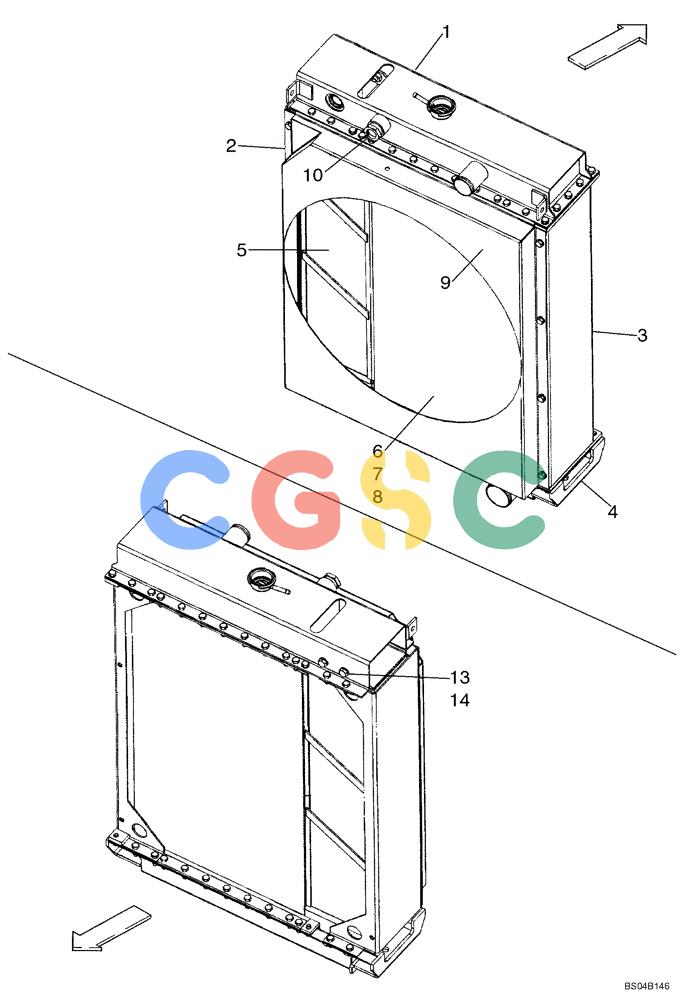

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87449353 | [1] | RADIATOR | BURIncl. All Part Numbers Below Superseded by part number: 84377348 |
| 1. | 87411727 | [1] | TANK | BURUpper |
| 2. | 87411728 | [1] | RADIATOR PANEL | BURLeft-Hand Side Member |
| 3. | 87411729 | [1] | RADIATOR PANEL | BURRight-Hand Side Member |
| . . | 87411730 | [1] | PAD | BURVibration Dampener |
| 4. | 87411731 | [1] | TANK | BURLower |
| 5. | 87411732 | [1] | OIL COOLER | BUR Superseded by part number: 84377936, 84377349 |
| 6. | 87411733 | [1] | CORE, RADIATOR | BURCore |
| 7. | 87411734 | [4] | PLATE | BURCore Reinforcement |
| 8. | 87411735 | [2] | PLATE | BURCore End Reinforcement |
| . . | N9762 | [2] | GASKET | CASGasket |
| 9. | 87450245 | [1] | SHROUD | BURRadiator Fan Shroud |
| 10. | 87411737 | [1] | SIGHTGLASS | BURRadiator Sight Glass |
| . . | 614-8020 | [29] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| . . | 614-8025 | [39] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| . . | 87016617 | [20] | LOCK WASHER,M8 | RAC Superseded by part number: 83990583 |
| . . | 832-10408 | [47] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| . . | 844-8012 | [8] | BOLT,M8 x 1.25 x 20.1mm, Cl 8.8 | CAS Superseded by part number: 86512520 |
| 13. | 614-10025 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8 | CAS Superseded by part number: 11106231 |
| 14. | 895-18010 | [4] | WASHER,10.5mm ID x 18mm OD x 1.6mm Thk | CAS Superseded by part number: 86625251 |
