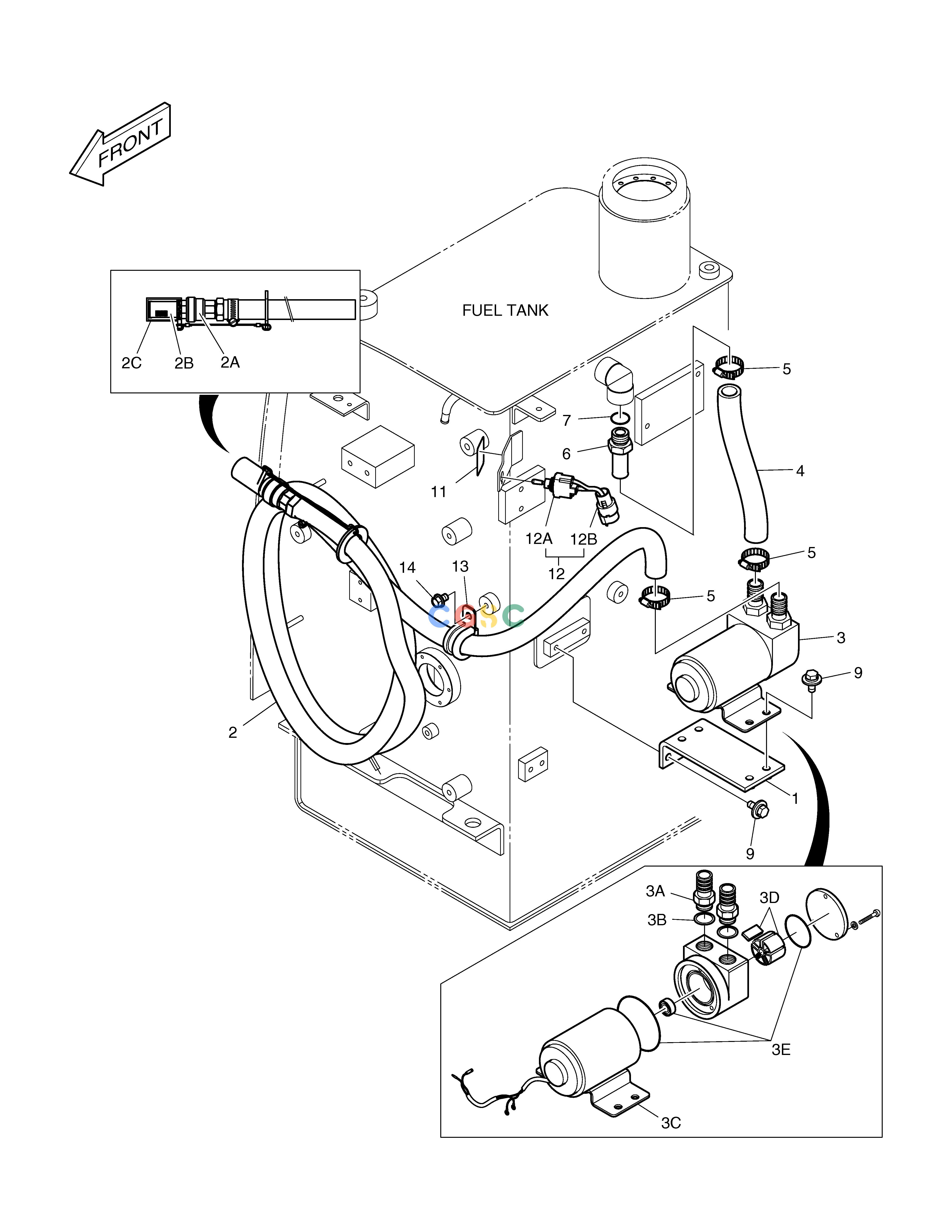

斗山零件查询FUEL FILLER PUMP DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00152
|
[-] |
|
|
| -. |
K1026942B
|
[-] |
FUEL FILLER PUMP
|
|
| 1. |
K1025429
|
[1] |
BRACKET
|
|
| 11. |
190-01172
|
[1] |
PLATE,NAME
|
|
| 12. |
K1024144
|
[1] |
TOGGLE SWITCH ASS'Y
|
301405-00247
|
| 12. |
301405-00247
|
[1] |
SWITCH,TOGGLE
|
|
| 12A. |
549-00093
|
[1] |
. SWITCH
|
|
| 12B. |
530-00214A
|
[1] |
. HARNESS;JOINT
|
|
| 13. |
124-00208D4
|
[1] |
CLIP
|
|
| 14. |
K1001029
|
[1] |
BOLT
|
|
| 2. |
185-00167D2
|
[1] |
HOSE ASS'Y 3000L
|
|
| 2A. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 2B. |
2471-1152
|
[1] |
. STRAINER
|
|
| 2C. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 3. |
K1030262
|
[1] |
PUMP;FUEL FILLER
|
|
| 3A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 3B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 3C. |
523-00003
|
[1] |
MOTOR;FUEL TRANSFER PUMP
|
|
| 3D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 3E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 4. |
2185-1247D143
|
[1] |
HOSE
|
|
| 5. |
S8470032
|
[3] |
CLAMP
|
|
| 5. |
S8450023
|
[3] |
CLAMP
|
|
| 6. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 7. |
S8000181
|
[1] |
O-RING
|
|
| 9. |
DS0025040
|
[6] |
BOLT;SET
|
|
