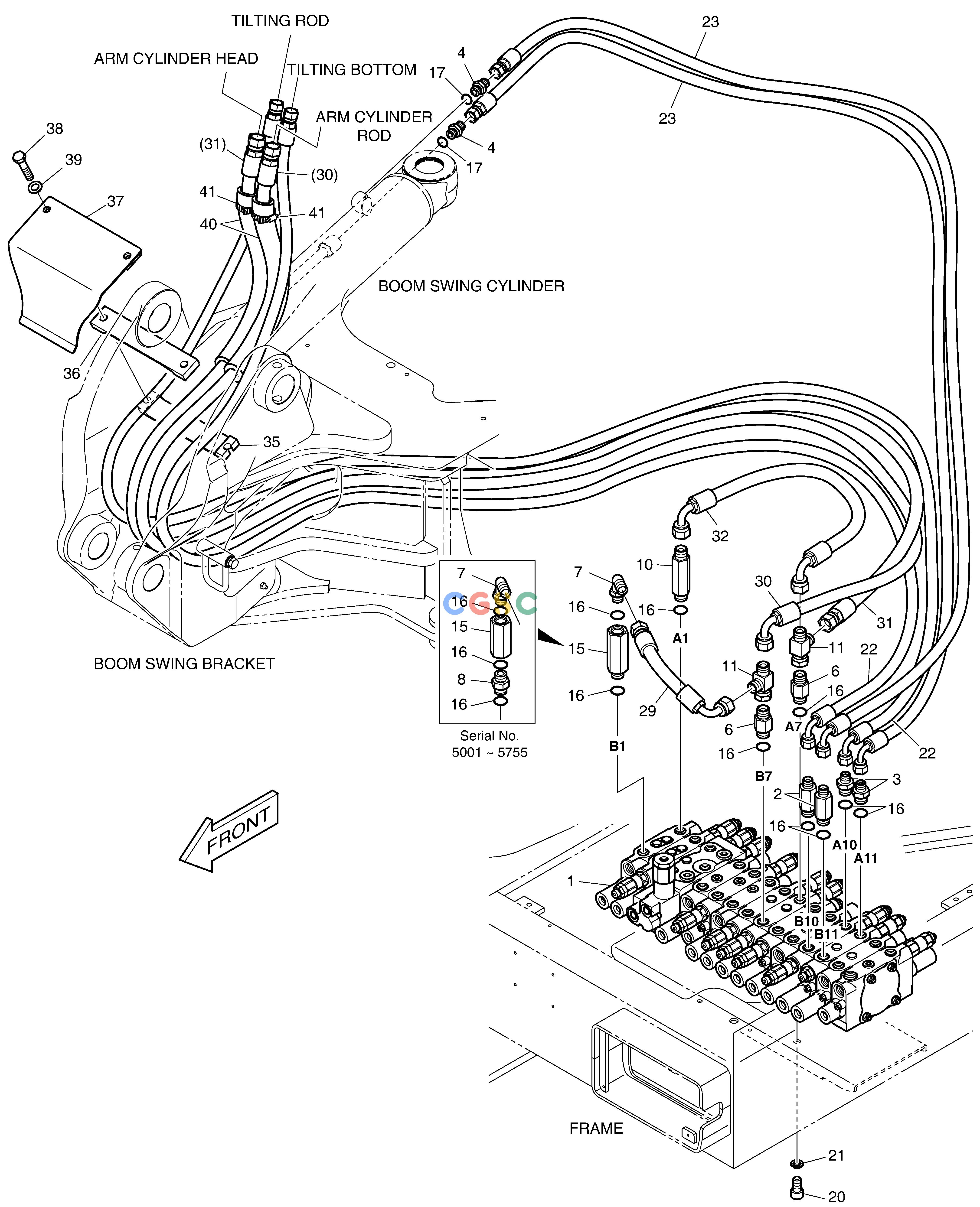

斗山零件查询MAIN PIPING(1) - TILTING DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00673
|
[-] |
|
|
| -. |
K1036051E
|
[-] |
MAIN PIPING
|
|
| 1. |
K1027670
|
[1] |
CONTROL VALVE
|
K1027670A
|
| 1. |
K1027670A
|
[1] |
CONTROL VALVE
|
K1027670B
|
| 1. |
K1027670B
|
[1] |
CONTROL VALVE
|
|
| 10. |
2181-1126D117
|
[1] |
ADAPTER
|
|
| 11. |
181-00673D5
|
[2] |
TEE;UNION
|
|
| 15. |
K1057312
|
[1] |
VALVE,CHECK
|
|
| 15. |
420-00526
|
[1] |
VALVE;CHECK
|
K1057312
|
| 16. |
S8000181
|
[9] |
O-RING
|
|
| 16. |
S8000181
|
[10] |
O-RING
|
|
| 17. |
S8000141
|
[2] |
O-RING
|
|
| 2. |
2181-1126D73
|
[2] |
ADAPTER
|
|
| 20. |
S2211866
|
[2] |
BOLT
|
|
| 21. |
S5110603
|
[2] |
WASHER
|
|
| 22. |
DS2093525
|
[2] |
HOSE
|
|
| 23. |
DS2093526
|
[2] |
HOSE
|
|
| 29. |
DS2093541
|
[1] |
HOSE
|
|
| 3. |
2181-1126D23
|
[2] |
ADAPTER
|
|
| 30. |
DS2093534
|
[1] |
HOSE
|
|
| 31. |
DS2094293
|
[1] |
HOSE
|
|
| 32. |
DS2091115
|
[1] |
HOSE
|
|
| 35. |
K1043326
|
[1] |
CLAMP;HOSE
|
|
| 36. |
K1043328
|
[1] |
CLAMP;HOSE
|
|
| 37. |
K1043341
|
[1] |
COVER
|
|
| 38. |
S0560966
|
[2] |
BOLT
|
|
| 39. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 4. |
2181-1126D45
|
[2] |
ADAPTER
|
|
| 40. |
K1052731
|
[4] |
PROTECTOR
|
|
| 41. |
S8450016
|
[4] |
. CLAMP
|
|
| 6. |
2181-1126D33
|
[2] |
ADAPTER
|
|
| 7. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 8. |
2181-1938D15
|
[1] |
ADAPTER
|
|
