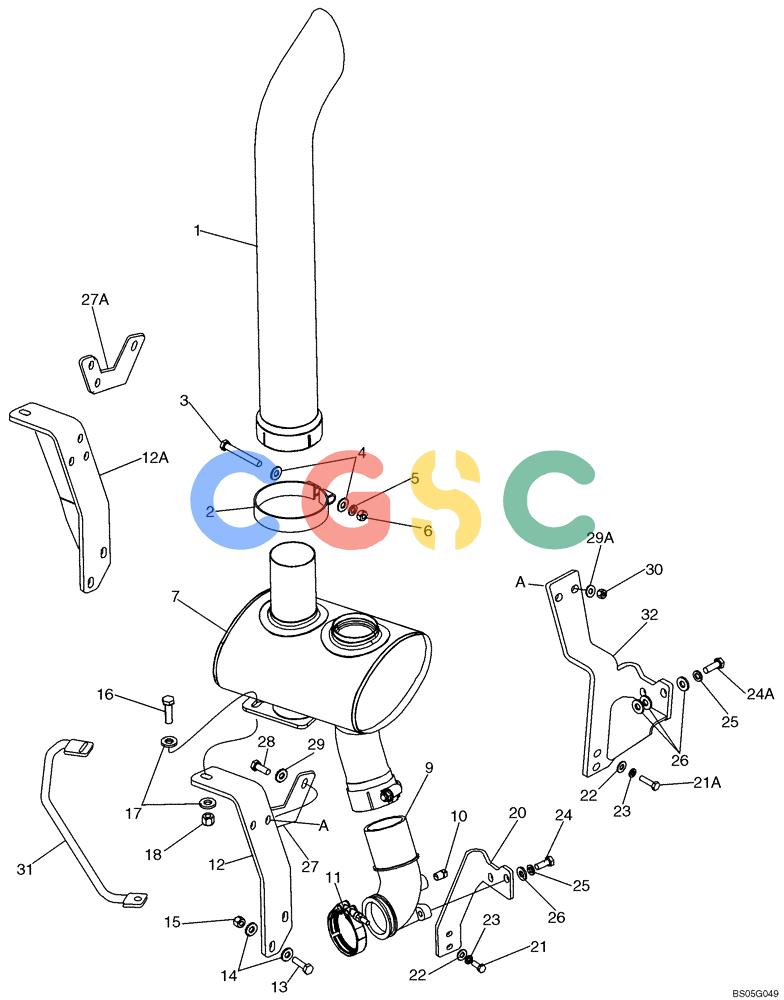

| 1. | 87438478 | [1] | PIPE, EXHAUST SYSTEM | CAS |
| 2. | R27699 | [1] | CLAMP,114.3mm | CAS |
| 3. | 614-10090 | [1] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd | CASM10 x 90 Superseded by part number: 538885 |
| 4. | 896-15010 | [2] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS11 x 24 x 2 mm Superseded by part number: 86639325 |
| 5. | 140028 | [1] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 6. | 829-1410 | [1] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 7. | 87311625 | [1] | MUFFLER | BURMuffler; Includes Clamp; Replaces 87433764 |
| 9. | J910992 | [1] | ELBOW | CASExhaust Outlet Elbow; Replaces 87416402 Elbow Used On Some Models |
| 10. | 217-506 | [1] | DRAIN PLUG,Sq Hd, 1/4"-18 NPTF | CAS1/4 PT |
| 11. | A170467 | [1] | CLAMP,72mm ID | CASIncludes Hardware |
| 12. | 87446365 | [1] | BRACKET, SUPPORTING | BURMuffler Support; No Longer Available, Order 87324593 Bracket, Ref 12A Superseded by part number: 87324593 |
| 12A. | 87324593 | [1] | BRACKET, SUPPORTING | BURMuffler Support |
| 13. | 614-10035 | [2] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd | CASM10 x 35; 8,8 Superseded by part number: 9706704 |
| 15. | 832-10410 | [2-3] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 16. | 814-12045 | [1] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8 | CAS Superseded by part number: 9628065 |
| 17. | 896-15012 | [2] | WASHER,13.5mm ID x 28mm OD x 4mm Thk | CAS13.5 x 28 x 4 mm Superseded by part number: 86625256 |
| 18. | 832-10412 | [1] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 20. | 87435848 | [1] | BRACKET, SUPPORTING | BURIf Used |
| 21. | 614-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CASUsed with Ref 20 Bracket Superseded by part number: 43127 |
| 21A. | 627-8030 | [3-4] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | CASM10 x 30; Used with Ref 32 Bracket Superseded by part number: 43235 |
| 22. | 895-15008 | [2-3] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 23. | 87016617 | [2-3] | LOCK WASHER,M8 | RAC Superseded by part number: 83990583 |
| 24. | 614-10025 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8 | CASUsed with Ref. 20 Bracket Superseded by part number: 11106231 |
| 24A. | 614-10030 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd | IHUsed with Ref 32 Bracket Superseded by part number: 43140 |
| 27. | 87450952 | [1] | BRACKET, SUPPORTING | BURHose Support; Two Holes; No Longer Available, Order 87324592 Bracket, Ref 27A Superseded by part number: 87324592 |
| 27A. | 87324592 | [1] | BRACKET, SUPPORTING | BURHose Support; Three Holes |
| 28. | 614-8040 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd | CASReplaces 614-8030 M8 x 30 bolt used on some models Superseded by part number: 16044024 |
| 29. | 895-11008 | [2-3] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 30. | 832-10408 | [2-3] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 31. | 87454469 | [1] | Muffler Support Brace; No Longer Used; Not Required | |
| 32. | 87308312 | [1] | BRACKET, SUPPORTING | BURElbow Support Bracket |
