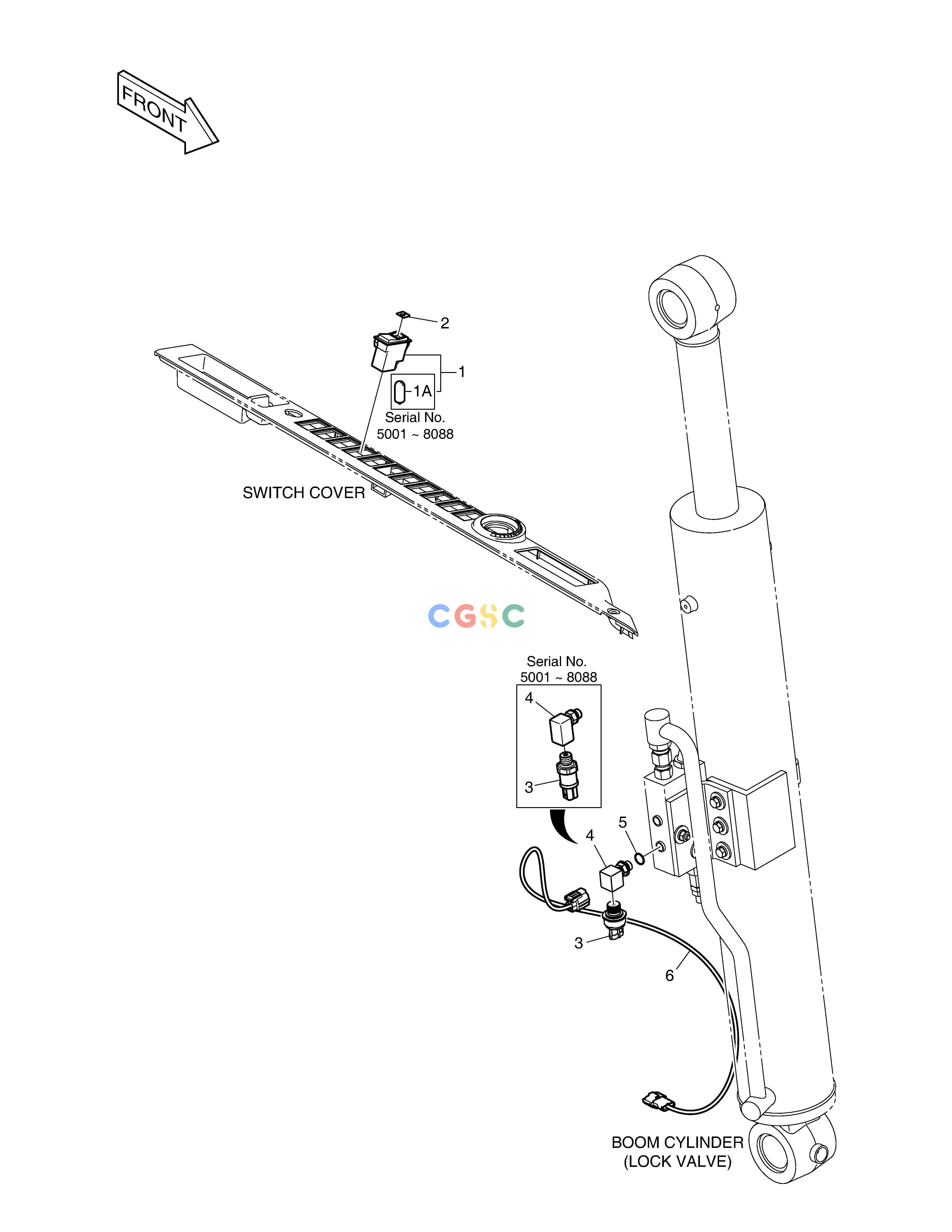

斗山零件查询OVERLOAD WARNING DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1036709A
|
[-] |
OVERLOAD WARNING
|
|
| 1. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
301423-00053
|
| 1. |
301423-00053
|
[1] |
SWITCH,ROCKER
|
|
| 1A. |
K9000354
|
[1] |
LAMP;PILOT
|
|
| 2. |
2190-2036D25
|
[1] |
INSERT;OVERLOAD WARNING
|
|
| 3. |
2547-9045
|
[1] |
SENSOR;PRESSURE
|
|
| 3. |
K1048145
|
[1] |
SENSOR,PRESSURE
|
|
| 4. |
DS2308018
|
[1] |
ELBOW
|
|
| 4. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 5. |
S8000111
|
[1] |
O-RING
|
|
| 6. |
530-00333
|
[1] |
HARNESS
|
|
| 6. |
K1047448
|
[1] |
HARNESS;PRESS SENSOR
|
|
| 6. |
310207-05012
|
[1] |
|
|
