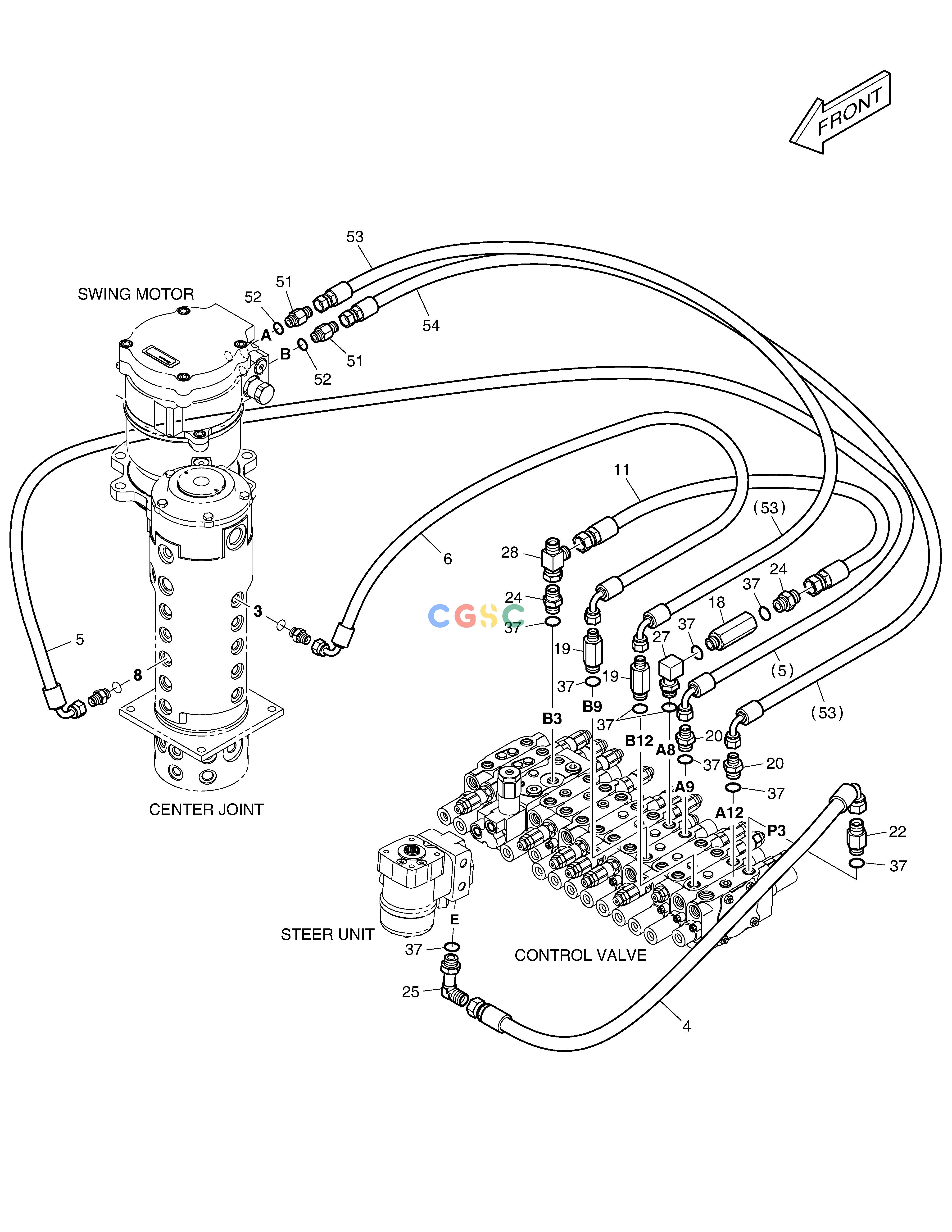

斗山零件查询MAIN PIPING(2) - TILTING DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
603 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06498
|
[-] |
|
|
| 11. |
DS2094294
|
[1] |
HOSE
|
|
| 18. |
K1057312
|
[1] |
VALVE,CHECK
|
|
| 19. |
2181-1126D73
|
[2] |
ADAPTER
|
|
| 20. |
2181-1126D23
|
[2] |
ADAPTER
|
|
| 22. |
2181-1126D33
|
[1] |
ADAPTER
|
|
| 24. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 25. |
2181-1702D34
|
[1] |
ELBOW
|
|
| 27. |
2181-2295D15
|
[1] |
ELBOW
|
|
| 28. |
181-00673D5
|
[1] |
TEE;UNION
|
|
| 37. |
S8000181
|
[10] |
O-RING
|
|
| 4. |
DS2093524
|
[1] |
HOSE
|
|
| 5. |
DS2091171
|
[1] |
HOSE
|
|
| 51. |
2181-1126D48
|
[2] |
ADAPTER
|
|
| 52. |
S8000141
|
[2] |
O-RING
|
|
| 53. |
DS2093630
|
[1] |
HOSE
|
|
| 54. |
DS2093522
|
[1] |
HOSE
|
|
| 6. |
DS2091107
|
[1] |
HOSE
|
|
