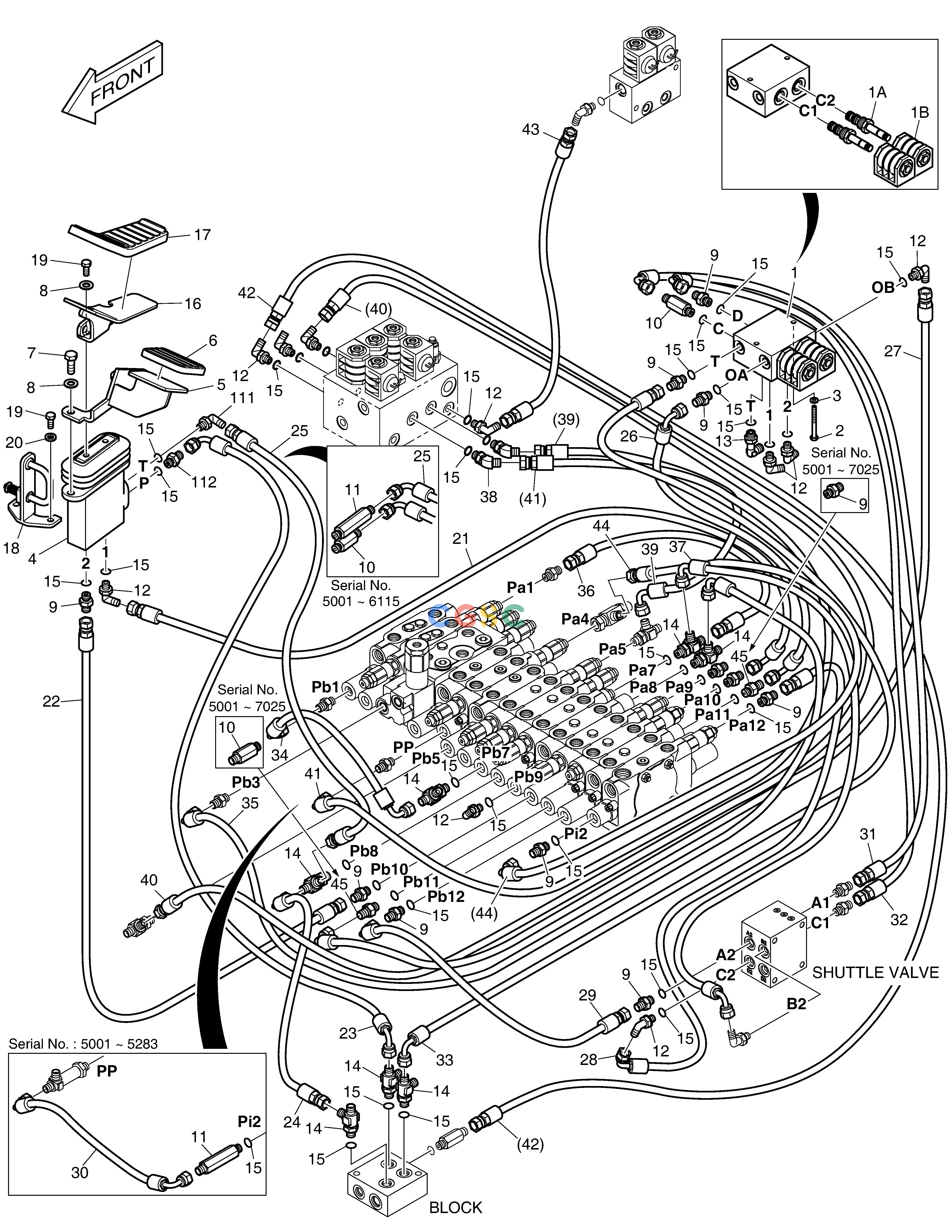

斗山零件查询PILOT PIPING - TILTING DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1036498H
|
[-] |
|
|
| -. |
K1036498G
|
[-] |
PILOT PIPING;TILTING
|
|
| 1. |
2420-9509
|
[1] |
VALVE;CHANGE
|
|
| 10. |
2181-1126D34
|
[3] |
ADAPTER
|
|
| 10. |
2181-1126D34
|
[2] |
ADAPTER
|
|
| 10. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 11. |
2181-1126D51
|
[2] |
ADAPTER
|
|
| 11. |
2181-1126D51
|
[1] |
ADAPTER
|
|
| 111. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 112. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 12. |
2181-1702D4
|
[6] |
ELBOW
|
|
| 12. |
2181-1702D4
|
[10] |
ELBOW
|
|
| 12. |
2181-1702D4
|
[11] |
ELBOW
|
|
| 13. |
2181-1702D57
|
[1] |
ELBOW
|
|
| 14. |
2181-1951D1
|
[7] |
TEE
|
|
| 15. |
S8000111
|
[30] |
O-RING
|
|
| 15. |
S8000111
|
[36] |
O-RING
|
|
| 16. |
K1029947
|
[1] |
BRACKET;PEDAL
|
|
| 17. |
K1017235
|
[1] |
RUBBER;PEDAL
|
|
| 18. |
K1001873A
|
[1] |
PLATE
|
|
| 19. |
2120-2166D5
|
[4] |
BOLT
|
|
| 1A. |
1.420-00134
|
[2] |
SOLENOID
|
|
| 1B. |
1.519-00002
|
[2] |
COIL
|
|
| 2. |
S0553863
|
[2] |
BOLT
|
|
| 20. |
2114-1898D2
|
[2] |
WASHER
|
|
| 21. |
DS2093340
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 22. |
DS2094238
|
[1] |
HOSE
|
|
| 23. |
DS2091109
|
[1] |
HOSE
|
|
| 24. |
DS2093555
|
[1] |
HOSE(ST-90)
|
|
| 25. |
DS2093071
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 25. |
DS2094173
|
[1] |
HOSE
|
|
| 26. |
DS2090068
|
[1] |
HOSE
|
|
| 27. |
DS2093183
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 28. |
DS2093254
|
[1] |
HOSE
|
|
| 29. |
DS2093027
|
[1] |
HOSE
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 30. |
DS2091136
|
[1] |
HOSE
|
|
| 31. |
DS2093180
|
[1] |
HOSE
|
|
| 32. |
DS2093197
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 33. |
DS2093069
|
[1] |
HOSE
|
|
| 34. |
DS2091154
|
[1] |
HOSE
|
|
| 35. |
DS2091098
|
[1] |
HOSE
|
|
| 36. |
DS2094035
|
[1] |
HOSE
|
|
| 36. |
DS2094121
|
[1] |
HOSE
|
|
| 37. |
DS2091116
|
[1] |
HOSE
|
|
| 38. |
2181-2430D1
|
[2] |
ELBOW
|
|
| 39. |
DS2093205
|
[1] |
HOSE
|
|
| 4. |
420-00160
|
[1] |
VALVE;PEDAL
|
|
| 40. |
DS2094277
|
[1] |
HOSE
|
|
| 41. |
DS2093281
|
[1] |
HOSE
|
|
| 42. |
DS2094279
|
[1] |
HOSE
|
|
| 43. |
DS2094041
|
[1] |
HOSE
|
|
| 44. |
DS2093590
|
[1] |
HOSE
|
|
| 45. |
181-00144D20
|
[2] |
|
181-00144D21
|
| 45. |
181-00144D21
|
[2] |
ADAPTER;ORIFICE
|
|
| 5. |
K1036700
|
[1] |
FOOT REST(L.H)
|
|
| 6. |
K1006656
|
[1] |
RUBBER,PEDAL
|
|
| 7. |
2120-2166D1
|
[2] |
BOLT
|
|
| 8. |
2114-1898D15
|
[4] |
WASHER
|
|
| 9. |
2181-1126D14
|
[11] |
ADAPTER
|
|
| 9. |
2181-1126D14
|
[12] |
ADAPTER
|
|
| 9. |
2181-1126D14
|
[10] |
ADAPTER
|
|
