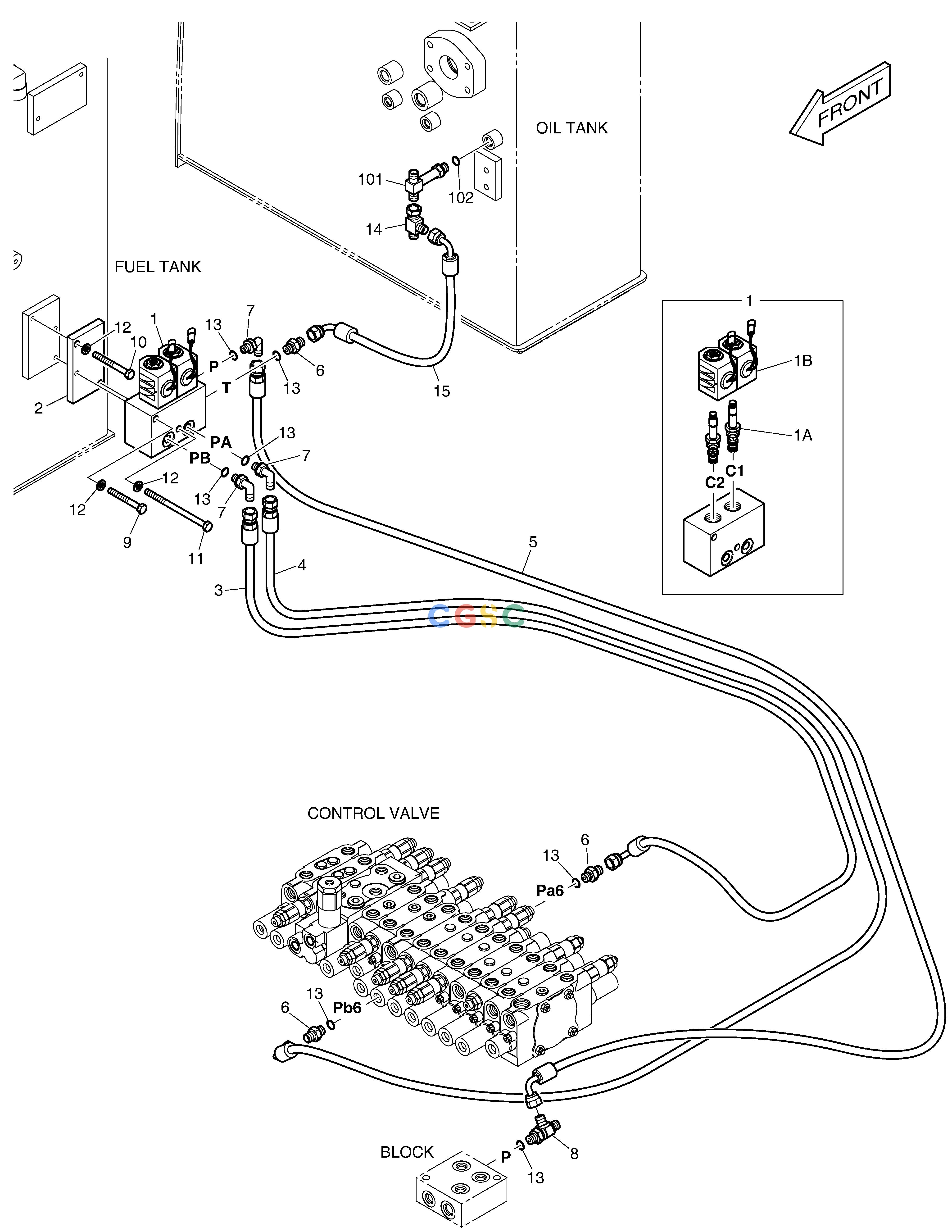

斗山零件查询PILOT PIPING - TWO WAY + QUICK CLAMP DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06409
|
[-] |
|
|
| 1. |
422-00010A
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
S0556753
|
[1] |
BOLT M8X1.25X70
|
|
| 101. |
2181-2281D17
|
[1] |
TEE
|
|
| 102. |
S8000111
|
[1] |
O-RING
|
|
| 11. |
S0557863
|
[1] |
|
|
| 12. |
S5102503
|
[3] |
. WASHER
|
|
| 13. |
S8000111
|
[7] |
O-RING
|
|
| 14. |
181-00837D1
|
[1] |
TEE;UNION
|
|
| 15. |
DS2091020
|
[1] |
HOSE (90-90)
|
|
| 1A. |
K9001354
|
[2] |
SOLENOID VALVE
|
|
| 1B. |
1.519-00002
|
[2] |
COIL
|
|
| 2. |
K1051327
|
[1] |
|
|
| 3. |
DS2093128
|
[1] |
HOSE
|
|
| 4. |
DS2093181
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 5. |
DS2093072
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 6. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 7. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 8. |
2181-1951D1
|
[1] |
TEE
|
|
| 9. |
S0556666
|
[1] |
BOLT
|
|
