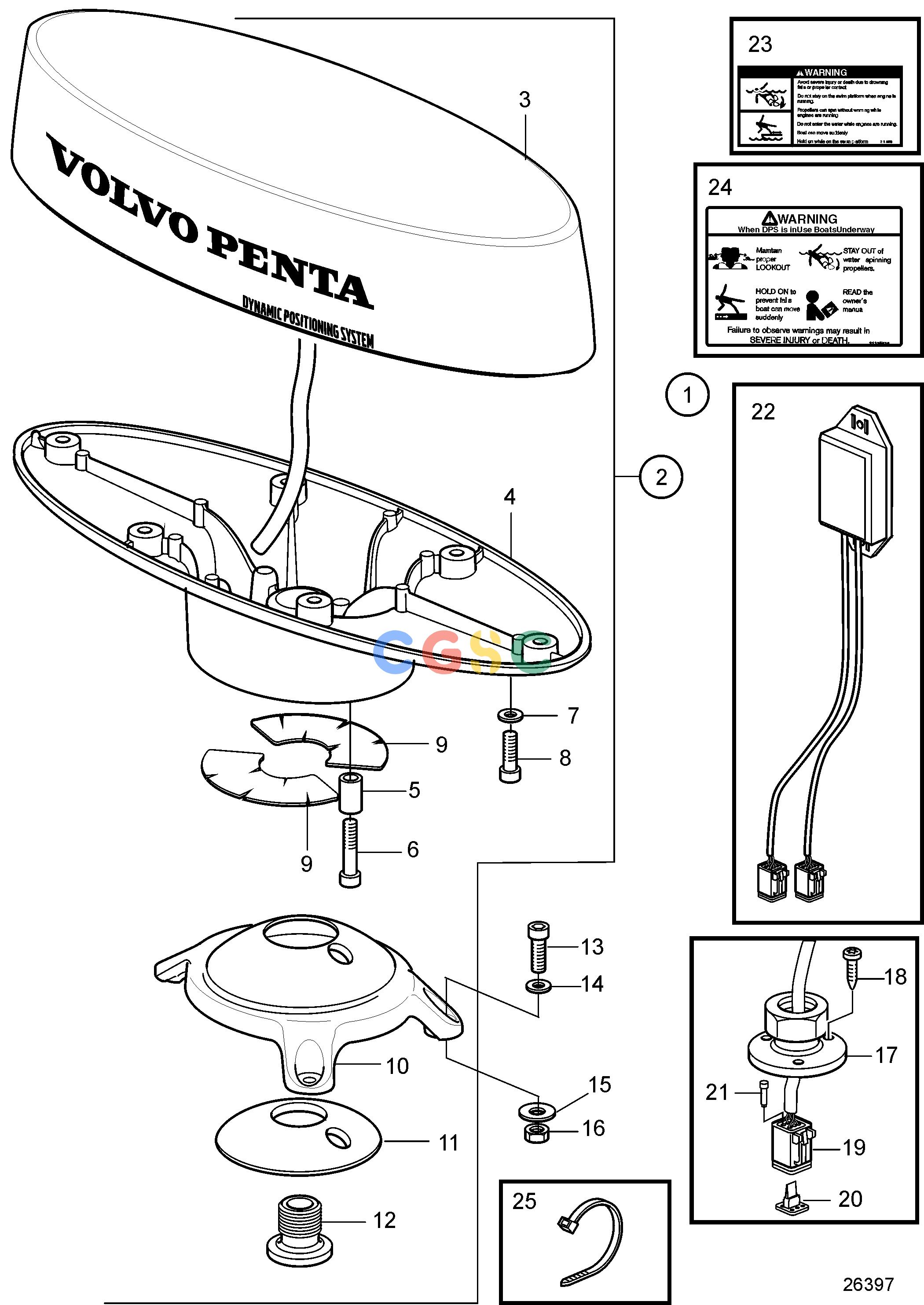

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemAntenna for Dynamic Positioning SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21300833
|
[1] |
Antenna kit
|
|
| 2. |
21300831
|
[1] |
Antenna
|
|
| 3. |
21231832
|
[1] |
Sensor
|
|
| 4. |
21395738
|
[1] |
Antenna base
|
|
| 5. |
478344
|
[2] |
Spacer sleeve
|
|
| 6. |
994153
|
[2] |
Hex. socket screw
|
|
| 7. |
941670
|
[6] |
Washer
|
|
| 8. |
994138
|
[6] |
Hex. socket screw
|
|
| 9. |
21328699
|
[2] |
Decal
|
|
| 10. |
21300823
|
[1] |
Antenna base
|
|
| 11. |
21300829
|
[1] |
Clamping ring
|
|
| 12. |
21330777
|
[1] |
Hollow screw
|
|
| 13. |
994153
|
[3] |
Hex. socket screw
|
|
| 14. |
941670
|
[3] |
Washer
|
|
| 15. |
993419
|
[3] |
Washer
|
|
| 16. |
946330
|
[3] |
Hexagon nut
|
|
| 17. |
21303890
|
[1] |
Cable grommet
|
|
| 18. |
961314
|
[1] |
Cross recessed screw
|
|
| 19. |
874960
|
[1] |
Housing
|
|
| 20. |
874961
|
[1] |
Wedge
|
|
| 21. |
8397660
|
[2] |
Cable seal
|
|
| 22. |
21231837
|
[1] |
Converter
|
|
| 23. |
21318999
|
[1] |
Decal
|
|
| 24. |
21325536
|
[1] |
Label
|
|
| 25. |
948211
|
[3] |
Cable tie
|
|
