沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemCables, EVC-E, EVC-E2EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
875 次

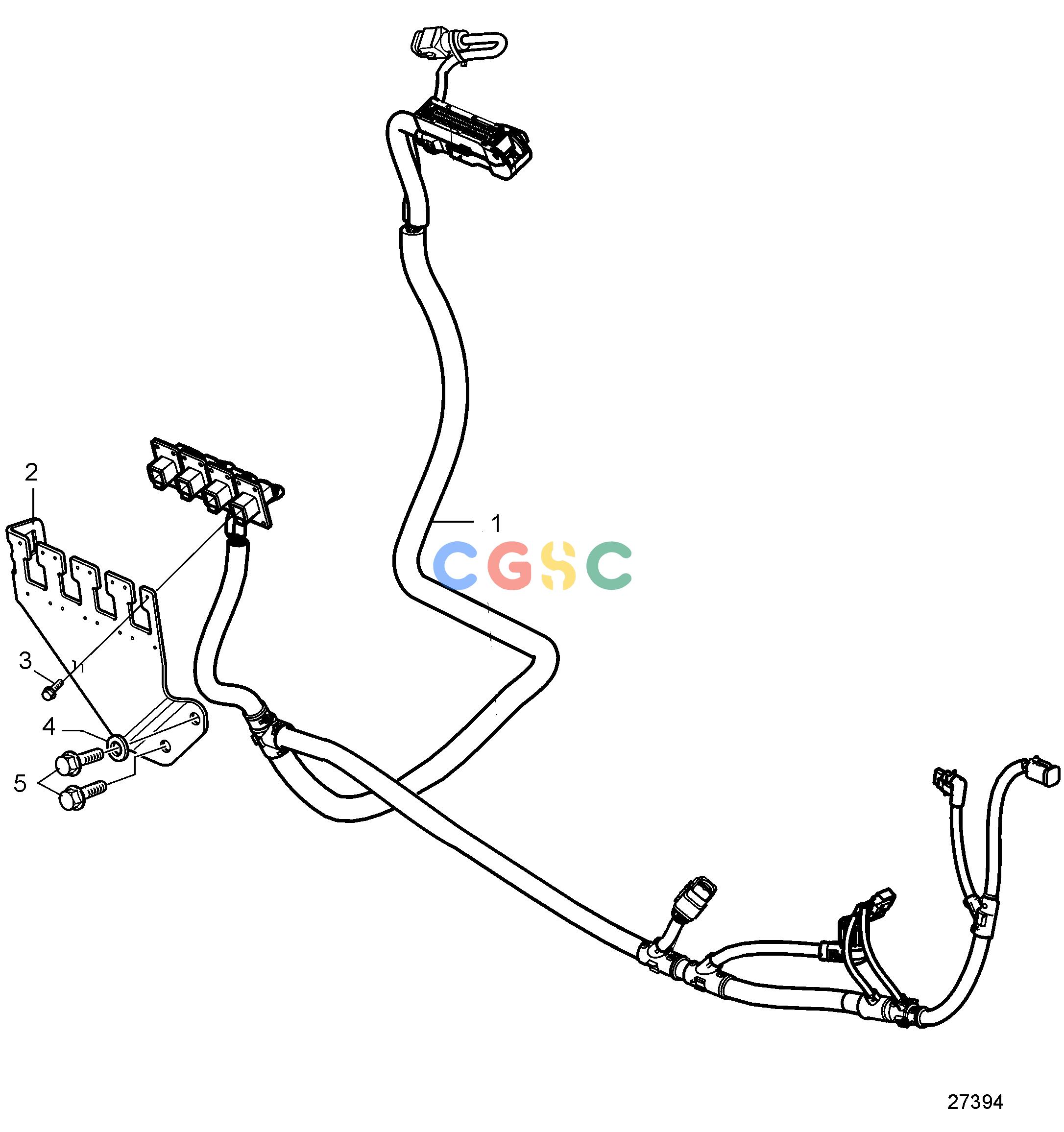

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22002029
|
[1] |
Wiring harness
|
Transmission cable for IPS
|
| 1. |
22002030
|
[1] |
Wiring harness
|
Transmission cable for IPS Jack Shaft
|
| 1. |
21865856
|
[1] |
Wiring harness
|
Transmission cable for AQ
|
| 1. |
21865858
|
[1] |
Wiring harness
|
Transmission cable for reverse gear
|
| 2. |
21997961
|
[1] |
Bracket
|
|
| 3. |
968476
|
[16] |
Flange screw
|
|
| 4. |
11978
|
[1] |
Washer
|
|
| 5. |
946173
|
[2] |
Flange screw
|
|
