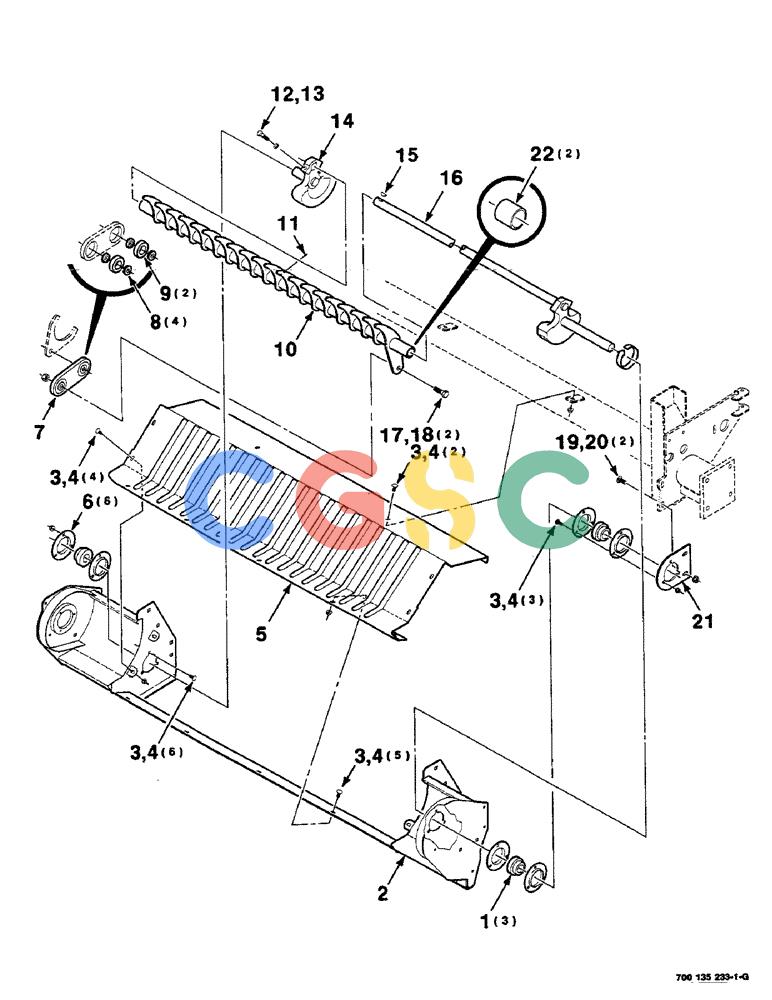

| 1. |
700708091
|
[3] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 2. |
700135713
|
[1] |
FRAME
|
HFI
WA - stuffer
|
| 3. |
434-616
|
[20] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 4. |
232-5316
|
[20] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
700135711
|
[1] |
GRATE
|
HFI
|
| 6. |
617863R1
|
[6] |
FLANGED BEARING
|
IH
|
| 7. |
700132212
|
[1] |
LINK
|
HFI
ASSEMBLY (Includes items 8 and 9)
|
| 8. |
700124038
|
[4] |
BUSHING,16.27mm ID x 34.92mm OD x 10mm L
|
CAS
- bearing
|
| 9. |
616154R92
|
[2] |
BEARING, ROLLER, CYL,16 mm
|
IH
BEARING - cylindrical Superseded by part number: 84356151
|
| 10. |
700132200
|
[1] |
SHAFT ASSY.
|
HFI
STUFFER WA (Includes item 22) Superseded by part number: 700155975, 700155974
|
| 11. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
NIPPLE, LUBE, 1/4"-28 x .52" lg Superseded by part number: 88775
|
| 12. |
413-828
|
[1] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 13. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 14. |
700132088
|
[1] |
CRANK
|
HFI
WA - idler, right
|
| 15. |
126-124
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1", HT
|
CAS
Superseded by part number: 47471
|
| 16. |
700132087
|
[1] |
CRANK
|
HFI
WA - drive, left
|
| 17. |
413-1032
|
[2] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
C Hex, 5/8"-11 x 2", G5 Superseded by part number: 86505999
|
| 18. |
230-41110
|
[2] |
LOCK NUT,5/8"-11, GA
|
CAS
5/8-11 HTLN GR/B Superseded by part number: 85700693
|
| 19. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 20. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 21. |
700135946
|
[1] |
PLATE
|
HFI
Superseded by part number: 700155699
|
| 22. |
740514
|
[2] |
BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L
|
L
- bronze
|
