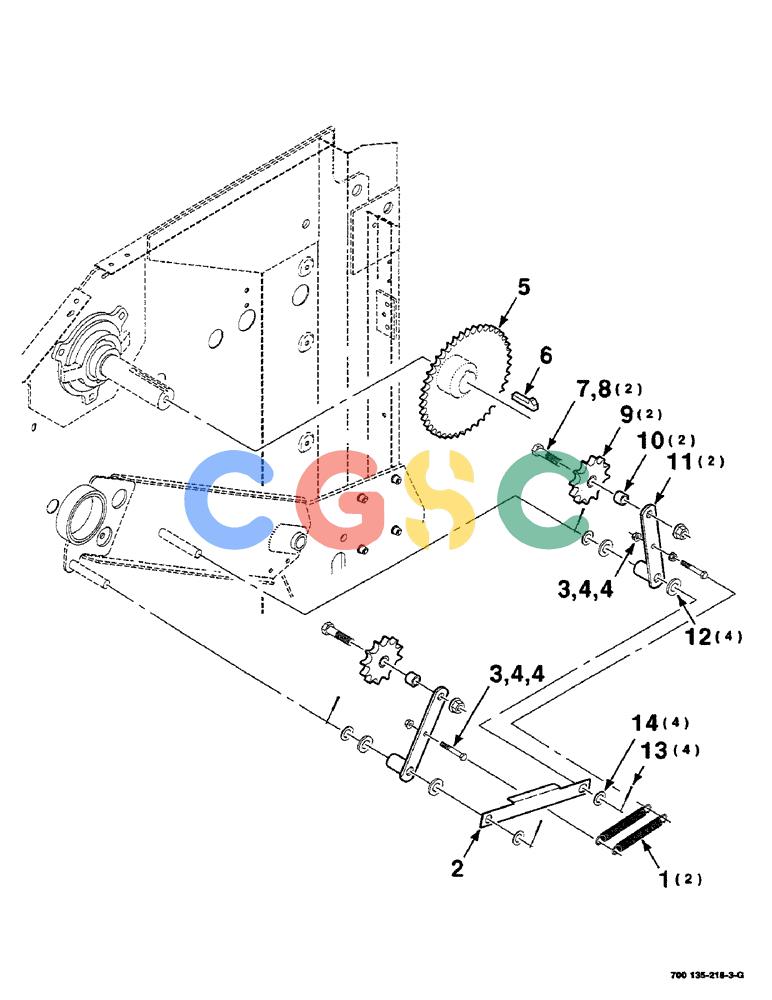

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (2-34) - ROLLER DRIVE ASSEMBLY, UPPER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
539 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700717556
|
[2] |
SPRING
|
CAS
- extension
|
| 2. |
700151479
|
[1] |
STOP
|
HFI
- idler
|
| 3. |
413-640
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 4. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 5. |
700135033
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 42 tooth
|
| 6. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
1/2 X 2 KEY - gib
|
| 7. |
413-1040
|
[2] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
| 8. |
232-53110
|
[2] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 9. |
541857R92
|
[2] |
SPROCKET,15T
|
IH
- idler, 15 tooth
|
| 10. |
50061K
|
[2] |
SPACER,1" Tube x 3/4"
|
IH
|
| 11. |
700150107
|
[2] |
ARM
|
HFI
WA - idler
|
| 12. |
705566
|
[4] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 13. |
432-1020
|
[4] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 14. |
95-81182
|
[4] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 X 14 GAUGE NRMB
|
