沃尔沃零件查询D6-280A-A D6-280A-B D6-280A-C D6-280A-D D6-280A-E D6-280I-A D6-280I-B D6-280I-C D6-280I-D D6-280I-E D6-310I-A D6-310A-A D6-310A-Electrical SystemElectrical Materials, Instrument EVC-C, EVC-C2, EVC-C3EPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemElectrical Materials, Instrument EVC-C, EVC-C2, EVC-C3EPC Volvo Penta Parts catalog

广数供应链运营团队, 15 02月, 2025，浏览： 807 次

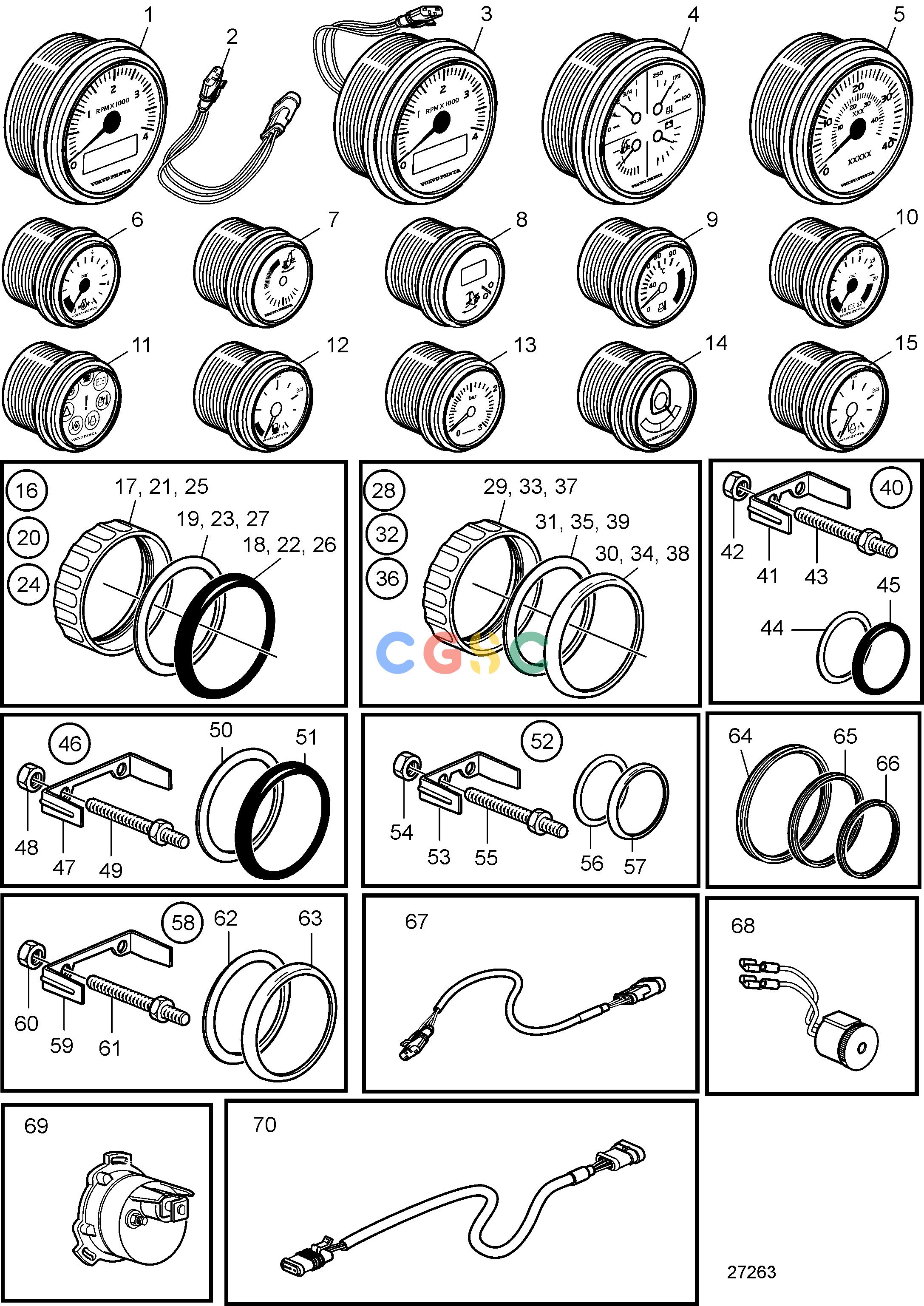

Pos.	Part No	Qty	Parts name	Comments
1.	21509650	[1]	Tachometer kit	Black, 4000rpm, Cable included, D=85mm
1.	21509649	[1]	Tachometer kit	White, 4000rpm, Cable included, D=85mm
2.	3884843	[1]	Wiring harness
3.	21234542	[1]	Tachometer kit	White, 4000rpm, Cable included, D=110mm
3.	21234543	[1]	Tachometer kit	Black, 4000rpm, Cable included, D=110mm
4.	3885214	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), White, D=110mm
4.	3885215	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), White, D=110mm
4.	3847876	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), Black, D=110mm
4.	3847879	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), Black, D=110mm
5.	874930	[1]	Speedometer	White 0-40 Knots, 0-40 mph
5.	874917	[1]	Speedometer	Black 0-40 knots, 0-40 mph
5.	881650	[1]	Speedometer	White 0-60 Knots, 0-60 mph
5.	881645	[1]	Speedometer	Black 0-60 knots, 0-60 mph
5.	3807508	[1]	Speedometer	Black, 0-40 mph
5.	3847851	[1]	Speedometer	Black, 0-45 mph
5.	3807510	[1]	Speedometer	Black, 0-60 mph
5.	3847857	[1]	Speedometer	Black, 0-70 mph
5.	3807512	[1]	Speedometer	White, 0-40 mph
5.	3847854	[1]	Speedometer	White, 0-45 mph
5.	3807513	[1]	Speedometer	White, 0-60 mph
5.	3847860	[1]	Speedometer	White, 0-70 mph
5.	3595249	[1]	Speedometer	Unit neutral, White, D=110mm, 0-40
5.	3595253	[1]	Speedometer	Unit neutral, White, D=110mm, 0-60
5.	3595246	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-40
5.	3595250	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-60
6.	874919	[1]	Oil pressure gauge	Black 0-100 psi
6.	874923	[1]	Oil pressure gauge	White 0-7 bar
6.	874932	[1]	Oil pressure gauge	White 0-100 psi
7.	3812881	[1]	Instrument	Black analog
7.	3812911	[1]	Instrument	White analog
8.	881648	[1]	Trimmer	Black digital
8.	881654	[1]	Trimmer	White digital
9.	874904	[1]	Thermometer, coolant water	Black 0-120°C
9.	874921	[1]	Thermometer, coolant water	White 0-120°C
9.	874918	[1]	Thermometer, coolant water	Black 40-250 °F
9.	874931	[1]	Thermometer, coolant water	White 40-250 °F
9.	881857	[1]	Thermometer, oil	Black 40-300 °F
9.	881858	[1]	Thermometer, oil	White 40-300 °F
10.	881649	[1]	Voltmeter	12V, black
10.	881658	[1]	Voltmeter	12V, white
10.	874913	[1]	Voltmeter	24V, black
10.	874925	[1]	Voltmeter	24V, white
11.	874915	[1]	Instrument, alarm	Black D=52mm
11.	874927	[1]	Instrument, alarm	White D=52mm
12.	874914	[1]	Fuel gauge	Black D=52mm
12.	874926	[1]	Fuel gauge	White D=52mm
13.	874910	[1]	Turbo pressure gauge	Black 0-3 bar
13.	874920	[1]	Turbo pressure gauge	Black 0-45 psi
13.	874924	[1]	Turbo pressure gauge	White 0-3 bar
13.	874933	[1]	Turbo pressure gauge	White 0-45 psi
14.	3812914	[1]	Rudder indicator	Black
14.	3812917	[1]	Rudder indicator	White
15.	874911	[1]	Pressure gauge, freshwater	Black 0-3 bar
15.	874912	[1]	Pressure gauge, sea water	Black 0-3 bar
16.	874709	[1]	Mounting kit	Black D=52mm
17.	874450	[1]	Attaching ring
18.	874448	[1]	Ring
19.	874707	[1]	Gasket
20.	874708	[1]	Mounting kit	Black D=85mm
21.	874449	[1]	Attaching ring
22.	874447	[1]	Ring
23.	874706	[1]	Gasket
24.	3847888	[1]	Mounting kit	Black D=110mm
25.	3884098	[1]	Attaching ring
26.	3847887	[1]	Ring
27.	3884103	[1]	Gasket
28.	874733	[1]	Mounting kit	Chrome D=52mm
29.	874450	[1]	Attaching ring
30.	874731	[1]	Ring
31.	874707	[1]	Gasket
32.	874732	[1]	Mounting kit	Chrome D=85mm
33.	874449	[1]	Attaching ring
34.	874730	[1]	Ring
35.	874706	[1]	Gasket
36.	3885216	[1]	Mounting kit	Chrome D=110mm
37.	3884098	[1]	Attaching ring
38.	3884096	[1]	Ring
39.	3884103	[1]	Gasket
40.	881611	[1]	Brace kit	Black D=52mm
41.	881607	[1]	Brace
42.	881610	[2]	Nut
43.	881609	[2]	Stud
44.	874707	[1]	Gasket
45.	874448	[1]	Ring
46.	881612	[1]	Brace kit	Black D=85mm
47.	881608	[1]	Brace
48.	881610	[2]	Nut
49.	881609	[2]	Stud
50.	874706	[1]	Gasket
51.	874447	[1]	Ring
52.	881613	[1]	Brace kit	Chrome D=52mm
53.	881607	[1]	Brace
54.	881610	[2]	Nut
55.	881609	[2]	Stud
56.	874707	[1]	Gasket
57.	874731	[1]	Ring
58.	881614	[1]	Brace kit	Chrome D=85mm
59.	881608	[1]	Brace
60.	881610	[2]	Nut
61.	881609	[2]	Stud
62.	874706	[1]	Gasket
63.	874730	[1]	Ring
64.	3886791	[1]	X-ring	For flush mounting., D=110mm
65.	874844	[1]	X-ring	For flush mounting., D=85mm
66.	874843	[1]	X-ring	For flush mounting., D=52mm
67.	874759	[1]	Extension cable	L=1000mm
67.	3807043	[1]	Extension cable	L=3000mm
68.	3817974	[1]	Alarm
69.	3809099	[1]	Rudder position sens	Rudder indicator
70.	22275729	[1]	Extension cable	L=300mm
