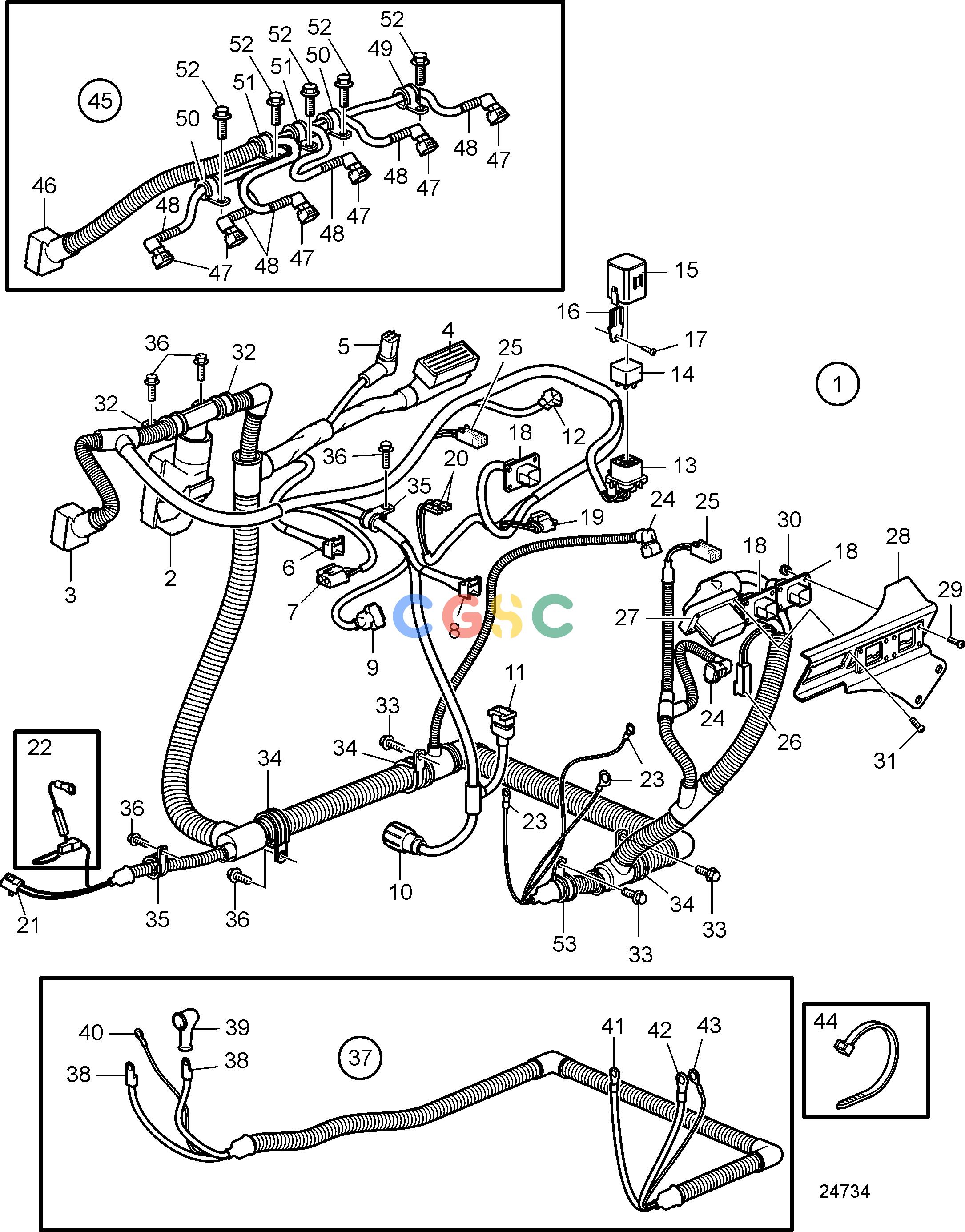

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
612 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3595024
|
[1] |
Wiring harness
|
|
| 2. |
874567
|
[1] |
Cover, 89-pole
|
EDC-unit
|
| 3. |
874568
|
[1] |
Cover, 36-pole
|
EDC-unit
|
| 4. |
3889166
|
[1] |
Wiring harness
|
|
| 5. |
874960
|
[1] |
Housing
|
|
| 6. |
976256
|
[1] |
Housing
|
|
| 7. |
970753
|
[1] |
Housing
|
|
| 8. |
976256
|
[1] |
Housing
|
|
| 9. |
874455
|
[1] |
Receptacle housing
|
3-pole
|
| 10. |
8159013
|
[1] |
Housing
|
|
| 11. |
874211
|
[1] |
Tab housing
|
|
| 12. |
874368
|
[1] |
Receptacle housing, pressure/temp
|
2-pole
|
| 13. |
3587172
|
[1] |
Relay socket
|
|
| 14. |
873765
|
[1] |
Relay
|
12V
|
| 14. |
3171420
|
[1] |
Relay
|
24V
|
| 15. |
3587173
|
[1] |
Relay box
|
|
| 16. |
3587174
|
[1] |
Relay retainer
|
|
| 17. |
969407
|
[1] |
Six point socket scr
|
|
| 18. |
992330
|
[3] |
Housing
|
|
| 19. |
874456
|
[1] |
Receptacle housing
|
4-pole
|
| 20. |
973121
|
[2] |
Cable terminal
|
|
| 21. |
1307048
|
[1] |
Housing
|
|
| 22. |
881679
|
[1] |
Resistor, alternator
|
12V
|
| 22. |
21967118
|
[1] |
Resistor, alternator
|
24V
|
| 23. |
940336
|
[1] |
Cable terminal
|
|
| 23. |
978969
|
[1] |
Cable terminal
|
|
| 23. |
978970
|
[1] |
Cable terminal
|
|
| 24. |
874368
|
[2] |
Receptacle housing
|
2-pole
|
| 25. |
874957
|
[2] |
Housing
|
|
| 26. |
874954
|
[1] |
Housing
|
|
| 27. |
992329
|
[1] |
Housing
|
|
| 28. |
3595025
|
[1] |
Bracket
|
|
| 29. |
969515
|
[8] |
Six point socket scr, temperature
|
|
| 30. |
963103
|
[8] |
Lock nut
|
|
| 31. |
969405
|
[4] |
Six point socket scr, temperature
|
|
| 32. |
952632
|
[2] |
Clamp
|
|
| 33. |
946440
|
[3] |
Flange screw
|
|
| 34. |
949997
|
[3] |
Clamp
|
|
| 35. |
952629
|
[2] |
Clamp
|
|
| 36. |
946501
|
[5] |
Flange screw
|
|
| 37. |
21163206
|
[1] |
Wiring harness
|
Replaced by 21736443
|
| 37. |
21736443
|
[1] |
Wiring harness
|
|
| 38. |
976478
|
[1] |
Cable terminal, alternator
|
|
| 39. |
842150
|
[1] |
Protective cap
|
|
| 40. |
973121
|
[1] |
Cable terminal, alternator
|
|
| 41. |
940336
|
[1] |
Cable terminal, starter motor
|
|
| 42. |
940337
|
[1] |
Cable terminal, starter motor
|
|
| 43. |
978966
|
[1] |
Cable terminal, starter motor
|
|
| 44. |
948211
|
[1] |
Cable tie
|
|
| 45. |
3809879
|
[1] |
Wiring harness
|
|
| 46. |
874569
|
[1] |
Retainer
|
|
| 47. |
874368
|
[4] |
Receptacle housing
|
|
| 48. |
3809871
|
[4] |
Adapter
|
|
| 49. |
952624
|
[1] |
Clamp
|
|
| 50. |
952627
|
[2] |
Clamp
|
|
| 51. |
952629
|
[2] |
Clamp
|
|
| 52. |
946501
|
[5] |
Flange screw
|
|
| 53. |
945081
|
[1] |
Clamp
|
|
