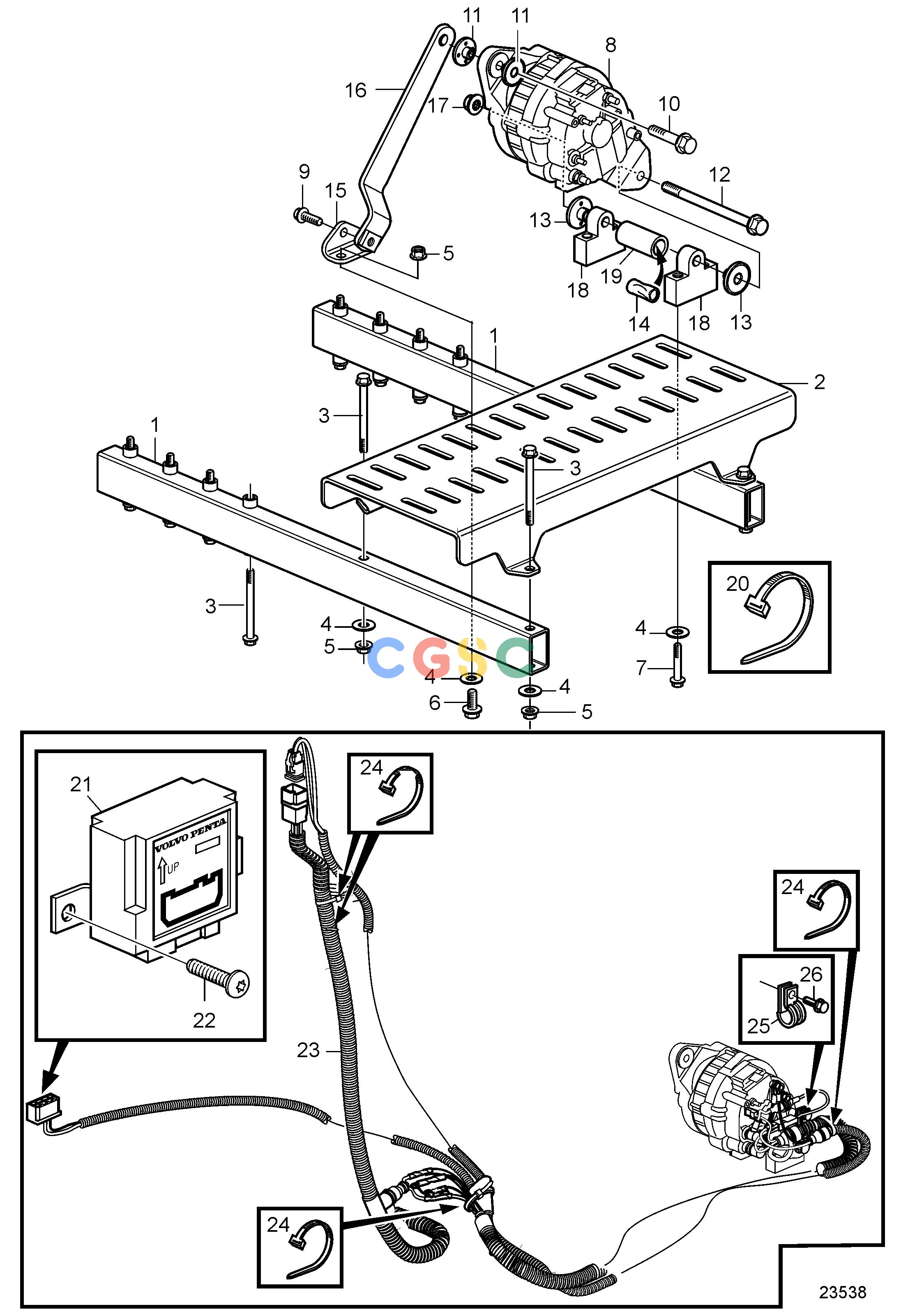

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemElectrical System and Instruments, SOLASEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3885266
|
[2] |
Bracket
|
|
| 2. |
3807984
|
[1] |
Bracket
|
|
| 3. |
965182
|
[12] |
Flange screw
|
|
| 4. |
948880
|
[10] |
Washer
|
|
| 5. |
948645
|
[6] |
Flange lock nut
|
|
| 6. |
945444
|
[2] |
Flange screw
|
|
| 7. |
947760
|
[4] |
Flange screw
|
|
| 8. |
3803911
|
[1] |
Alternator, exch
|
14V, 115A
|
| 8. |
3803912
|
[1] |
Alternator, exch
|
28V, 80A
|
| 9. |
946441
|
[1] |
Flange screw
|
|
| 10. |
946470
|
[1] |
Flange screw
|
|
| 11. |
3589369
|
[2] |
Insulating bushing
|
D=8mm
|
| 12. |
978447
|
[1] |
Flange screw
|
|
| 13. |
21308514
|
[2] |
Insulating bushing
|
D=12mm
|
| 14. |
|
|
|
|
| 15. |
3885739
|
[1] |
Bracket
|
|
| 16. |
3584076
|
[1] |
Bracket
|
|
| 16. |
3588184
|
[1] |
Bracket
|
350A-B, 370D-B, 435D-A
|
| 17. |
971096
|
[1] |
Flange nut
|
|
| 18. |
3885686
|
[2] |
Support
|
|
| 19. |
978429
|
[1] |
Spacer sleeve
|
|
| 20. |
980464
|
[7] |
Cable tie
|
|
| 21. |
873112
|
[1] |
Position sensor
|
|
| 22. |
|
|
|
|
| 23. |
3884119
|
[1] |
Wiring harness
|
12V
|
| 23. |
21388098
|
[1] |
Wiring harness
|
24V
|
| 24. |
948211
|
[16] |
Cable tie
|
|
| 25. |
952632
|
[1] |
Clamp
|
|
| 26. |
948663
|
[1] |
Flange screw
|
|
