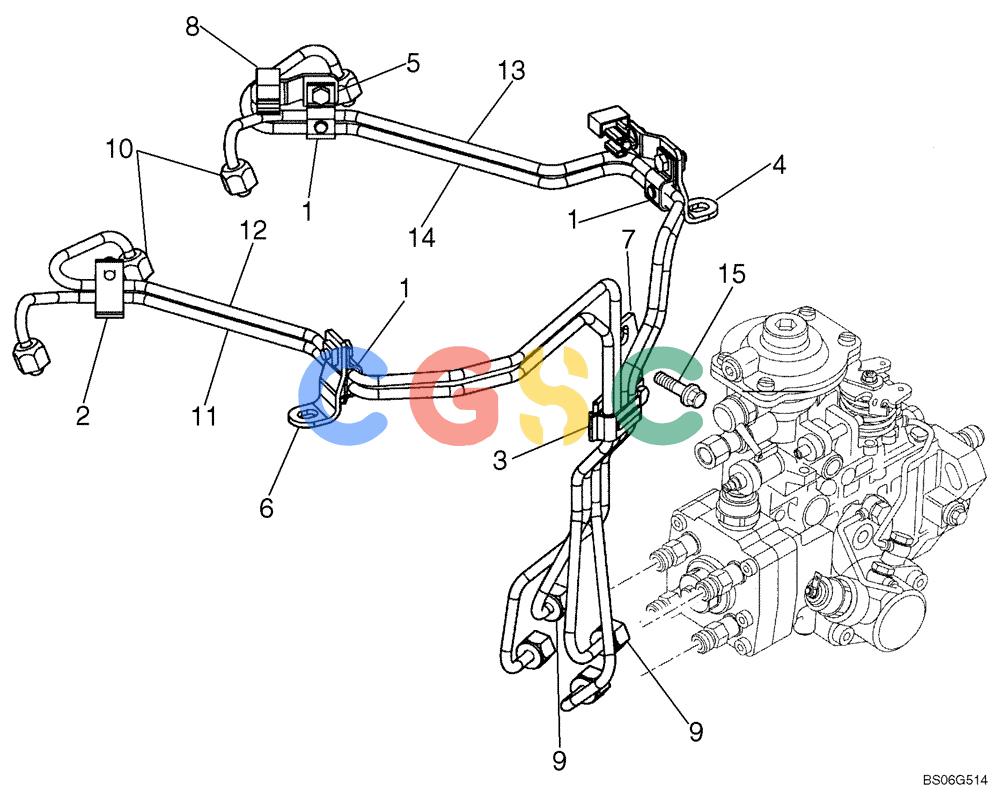

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2852075 | [1] | PIPE SET | TORFuel Injection Supply Pipe Assy; Incl. Ref 1-14 |
| 1. | 2852871 | [3] | BRACKET | TORFuel Injection Pipe Bracket |
| 2. | 2852872 | [1] | BRACKET | TORFuel Injection Pipe Bracket |
| 3. | 2852873 | [1] | BRACKET | TORFuel Injection Pipe Bracket |
| 4. | 2852874 | [1] | BRACKET | TORFuel Injection Pipe Bracket |
| 5. | 2852875 | [1] | BRACKET | TORFuel Injection Pipe Bracket Superseded by part number: 5801462765 |
| 6. | 2852876 | [1] | BRACKET | TORFuel Injection Pipe Bracket |
| 7. | 2852877 | [1] | BRACKET | TORFuel Injection Pipe Bracket |
| 8. | 2852878 | [2] | CLAMP BRACKET | TORFuel Injection Pipe Bracket |
| 9. | 2852879 | [4] | NUT | TORHex |
| 10. | 2852880 | [4] | NUT | TORHex |
| 11. | 2852881 | [1] | INJECTION PIPE | TORFuel Injector Supply Pipe |
| 12. | 2852882 | [1] | INJECTION PIPE | TORFuel Injector Supply Pipe |
| 13. | 2852883 | [1] | INJECTION PIPE | TORFuel Injector Supply Pipe |
| 14. | 2852884 | [1] | INJECTION PIPE | TORFuel Injector Supply Pipe |
| 15. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TORReplaces 4899068 |
