纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (03-10) - FUEL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
743 次

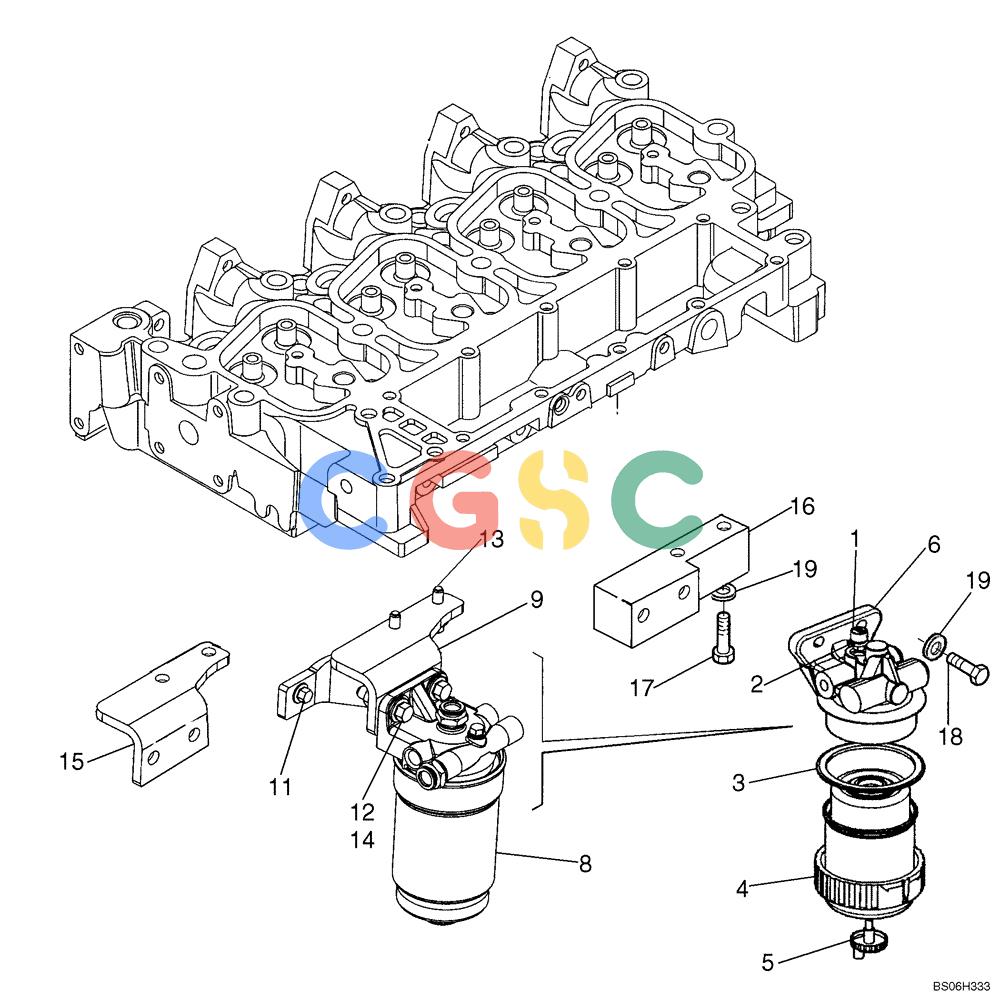

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2854621 | [1] | FUEL FILTER | TORFILTER ASSY; Incl. Ref 1- 6 |
| 1. | 87840178 | [1] | PLUG | IMOAir Vent |
| 2. | 87840177 | [1] | O-RING | IMO |
| 3. | 87840171 | [1] | SEAL | IMO Superseded by part number: |
| 4. | 87840170 | [1] | LOCKING RING | IMO |
| 5. | NSS | [1] | NOT SERVICED SEPARATELY | CONValve Drain |
| 8. | 2852547 | [1] | FILTER ASSY | TOR |
| 8A. | 2854796 | [1] | FUEL FILTER | BASReplacement for Ref 8 |
| 9. | 2855103 | [1] | SUPPORT | TOR Superseded by part number: 504168524 |
| 11. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 12. | 2852235 | [2] | SCREW | TORM10 x 1.5 x 35; Replaces 4899849 Superseded by part number: 16587325 |
| 13. | 2830411 | [2] | BOLT,Flng, M8 x 1.25 x 30mm | TORM8 x 1.25 x 30 |
| 14. | 4895166 | [2] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BASM10 x 1.5 |
| 15. | 2852099 | [1] | SUPPORT | TOR Superseded by part number: 504168524, 4899068, 16587325, 2830411 |
| 16. | 2854620 | [1] | BRACKET | BASSupport, No Longer Available; Order 2852099, Ref 15 |
| 17. | 16043621 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CASReplaces 4899020, 16 mm Superseded by part number: |
| 18. | 16044224 | [2] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTFReplaces 16044221 |
| 19. | 14496501 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | TTF Superseded by part number: 86624184 |
| 20. | 87803192 | [1] | FUEL FILTER | PASpin-on Superseded by part number: 84565884 |
