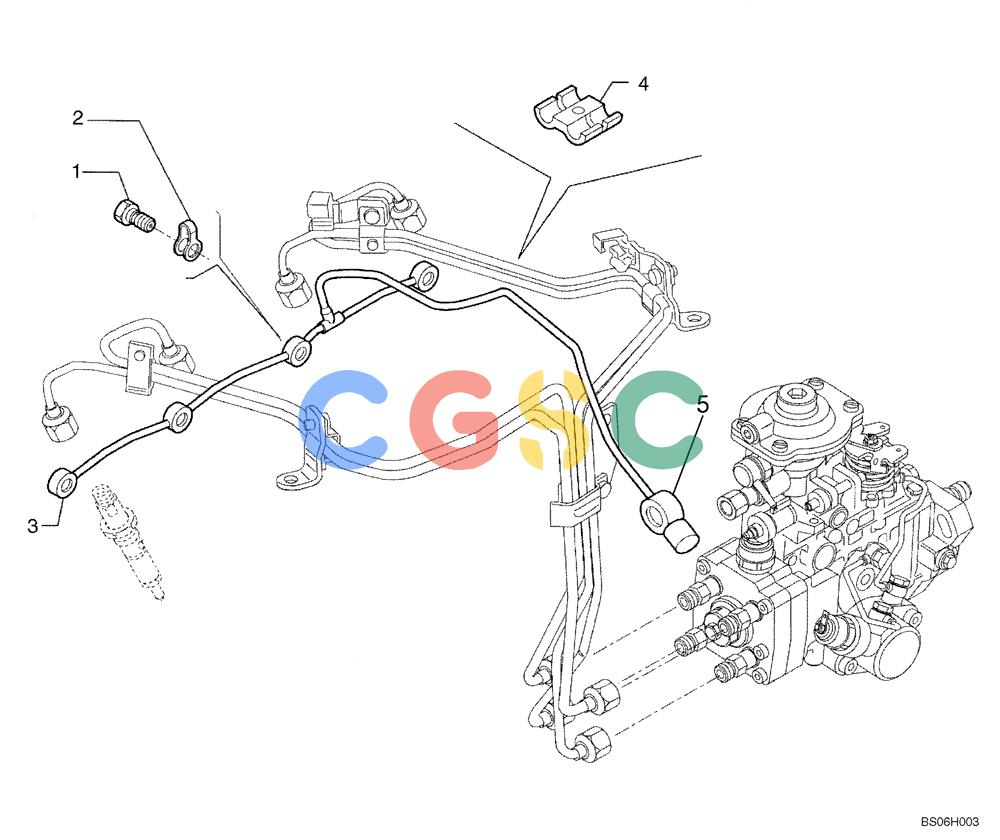

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (03-13) - FUEL INJECTION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
384 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8097552 | [4] | SCREW | TOR |
| 2. | 4895305 | [4] | SEAL | TOR Superseded by part number: 1118641 |
| 2. | J903380 | [8] | SEAL | CASReplaces 2855903 |
| 3. | 2852113 | [1] | TUBE,268, 106 mm Length | TOR |
| 3. | 2852065 | [1] | TUBE,264, 110 mm Length | TORFuel Drain Superseded by part number: 504051276 |
| 4. | 2852521 | [1] | CLIP | TORIf Used Superseded by part number: 98429625 |
| 5. | 2852118 | [1] | FITTING | TORNot Service Separatly |
