纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (03-12) - FUEL INJECTION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
457 次

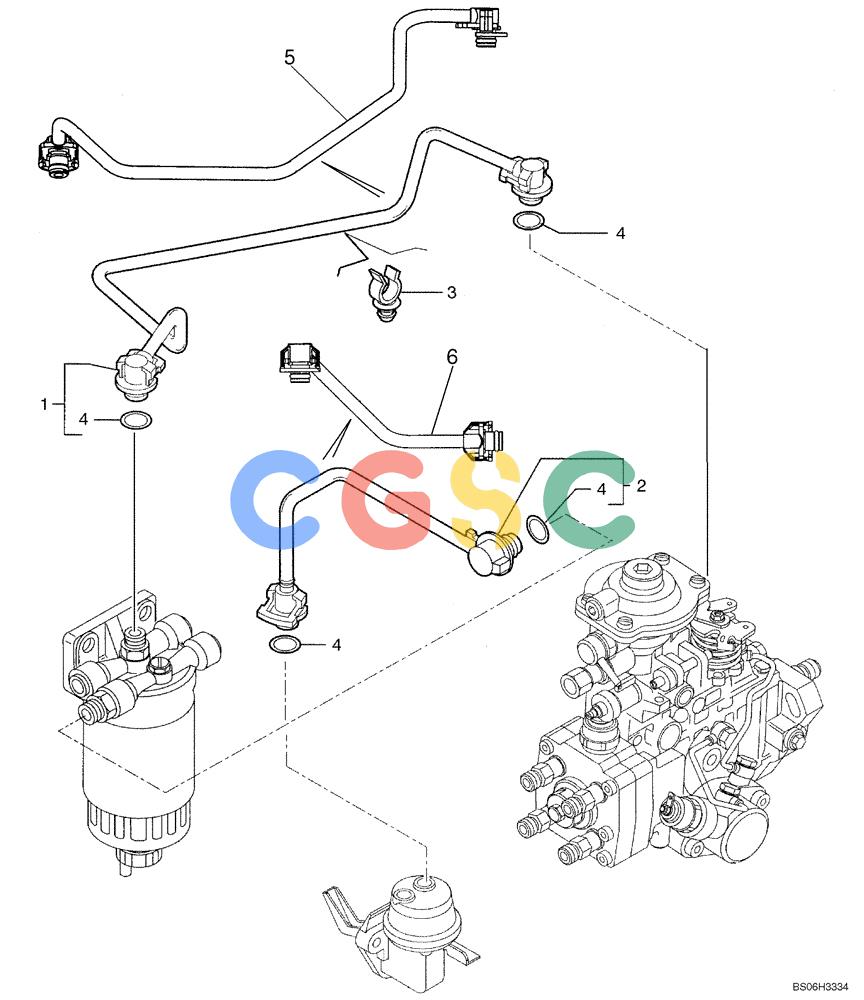

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855279 | [1] | PIPE | TORPipe Assy Fuel Supply, Incl. 4; Replaces 2854619 |
| 2. | 2853243 | [1] | PIPE | TORPipe Assy Fuel Supply; Incl. Ref 4; Replaces 2854615 Superseded by part number: 2852108 |
| 3. | 2852111 | [1] | CLIP | TOR Superseded by part number: 504065285 |
| 4. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
| 5. | 2852105 | [1] | TUBE | TORIncl. Ref 4 |
| 6. | 2852108 | [1] | RIGID TUBE | TORIncl. Ref 4 |
