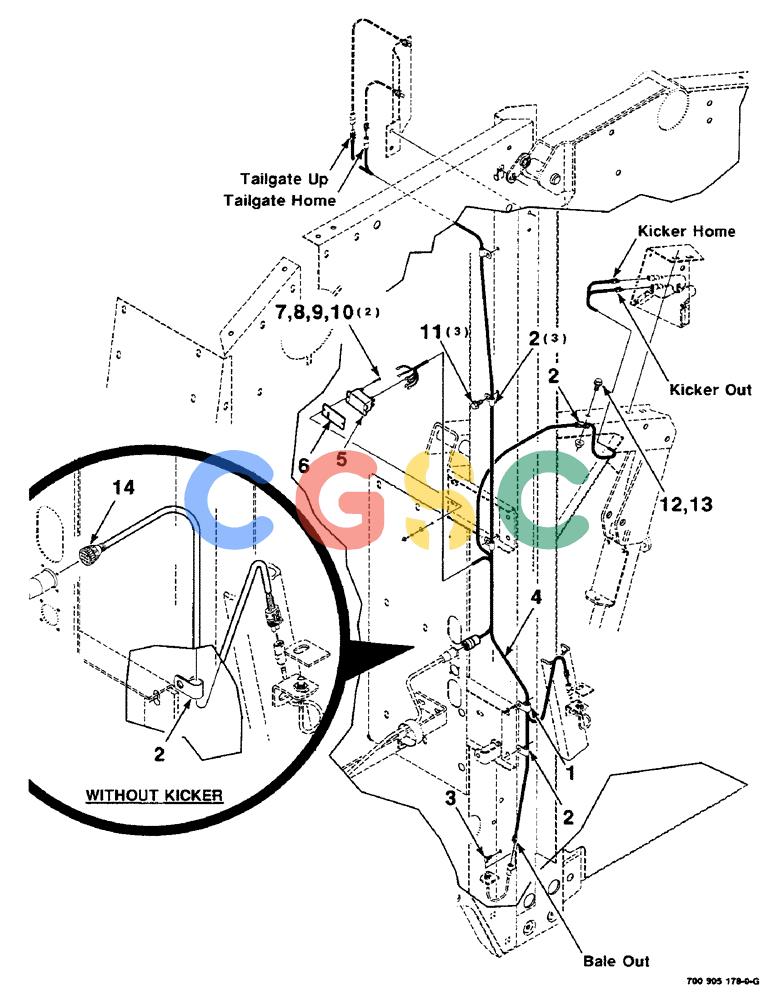

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (4-14) - ELECTRICAL ASSEMBLY, KICKER CONTROL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
515-25127
|
[1] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 2. |
515-2395
|
[6] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Line 3/8", Insul, 3/8" Bolt Superseded by part number: 86572009
|
| 3. |
700718506
|
[1] |
CLIP
|
CAS
- plastic, barbed
|
| 4. |
700716058
|
[1] |
HARNESS
|
CAS
- wire, kicker (Without mesh wrap)
|
| . . |
700718006
|
[1] |
HARNESS
|
CAS
- wire, kicker (With mesh wrap)
|
| 5. |
700716828
|
[1] |
RELAY
|
CAS
- electrical
|
| 6. |
700718448
|
[1] |
GASKET
|
CAS
- relay
|
| 7. |
440-1088
|
[2] |
SCREW,Cross Pan Hd, #8-32 x 1/2"
|
CAS
GR60M Cross Pan Hd, #8-32 x 1/2" Superseded by part number: 81822758
|
| 8. |
495-21019
|
[2] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 9. |
492-11008
|
[2] |
LOCK WASHER,#8
|
CAS
Washer, Lock, #8 Superseded by part number: 87812
|
| 10. |
225-14108
|
[2] |
NUT,#8-32
|
CAS
H GR2 #8-32 Superseded by part number: 86977693
|
| 11. |
281-34912
|
[3] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHTCTS
|
| 12. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 13. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 14. |
700716059
|
[1] |
CABLE
|
CAS
- electric (Without kicker)
|
