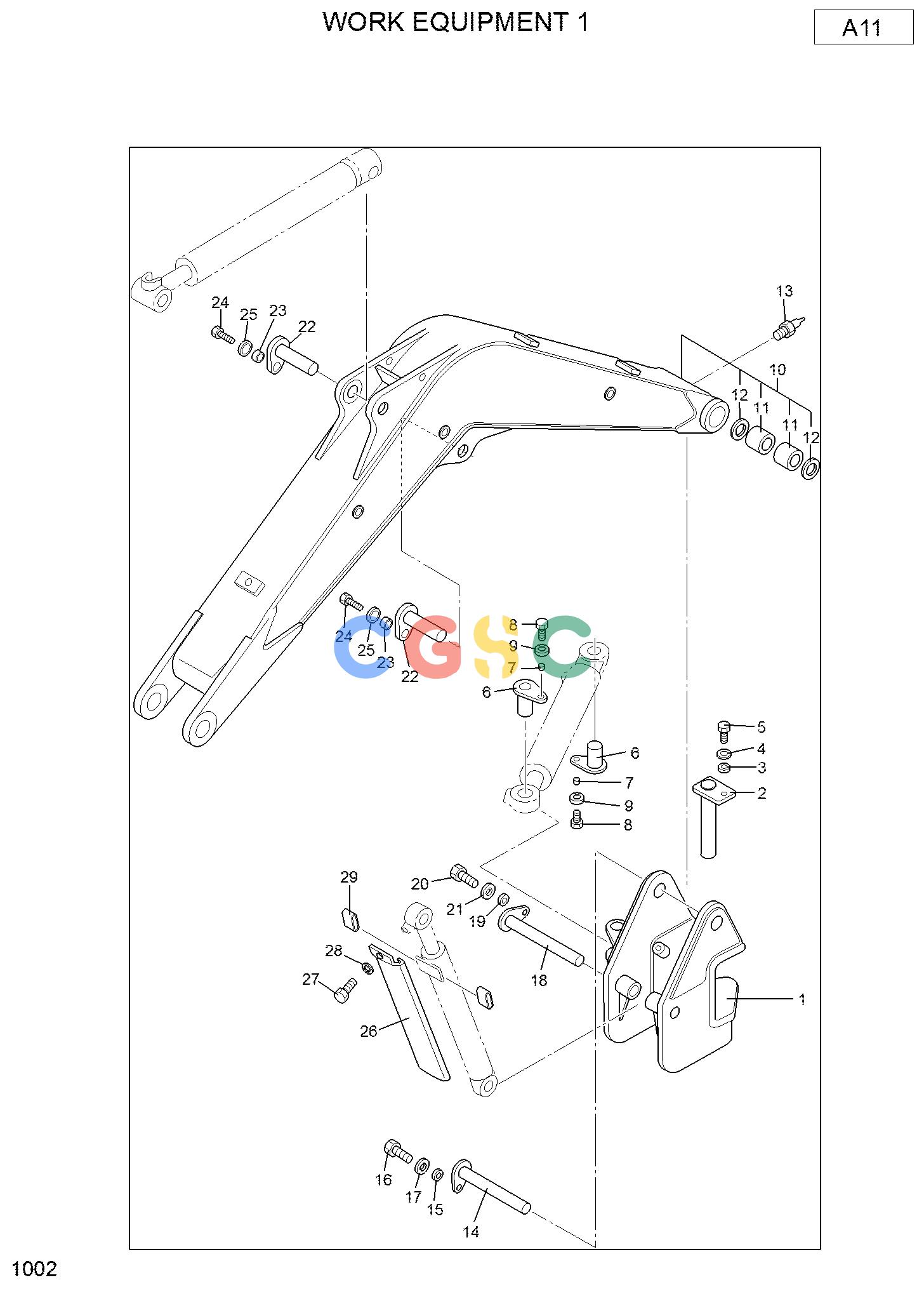

现代零件查询R15-7 WORK EQUIPMENT 1EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01301
|
[1] |
SWING POST
|
|
| 2. |
XJDH-01428
|
[1] |
PIN-SWING POST
|
|
| 3. |
XJDH-01148
|
[1] |
COLLAR-POST PIN
|
|
| 4. |
XJDH-01149
|
[1] |
WASHER
|
|
| 5. |
XJDH-00083
|
[1] |
BOLT
|
|
| 6. |
XJDH-01394
|
[2] |
PIN-DOZER CYLINDER
|
|
| 7. |
XJDH-01181
|
[2] |
COLLAR
|
|
| 8. |
XJDH-00152
|
[2] |
BOLT
|
|
| 9. |
XJDH-00280
|
[2] |
WASHER
|
|
| 10. |
XJDH-03053
|
[1] |
BOOM
|
|
| 11. |
XJDH-01420
|
[2] |
BUSHING
|
|
| 12. |
XJDH-00362
|
[2] |
SEAL-DUST
|
|
| 13. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 14. |
XJDH-01429
|
[1] |
PIN-BOOM
|
|
| 15. |
XJDH-01181
|
[1] |
COLLAR
|
|
| 16. |
XJDH-00152
|
[1] |
BOLT
|
|
| 17. |
XJDH-00280
|
[1] |
WASHER
|
|
| 18. |
XJDH-01430
|
[1] |
PIN-BOOM CYL HEAD
|
|
| 19. |
XJDH-01181
|
[1] |
COLLAR
|
|
| 20. |
XJDH-00152
|
[1] |
BOLT
|
|
| 21. |
XJDH-00280
|
[1] |
WASHER
|
|
| 22. |
XJDH-01307
|
[1] |
PIN-CYLINDER
|
|
| 23. |
XJDH-01181
|
[1] |
COLLAR
|
|
| 24. |
XJDH-00152
|
[1] |
BOLT
|
|
| 25. |
XJDH-00280
|
[1] |
WASHER
|
|
| 26. |
XJDH-01307
|
[1] |
PIN-CYLINDER
|
|
| 27. |
XJDH-01181
|
[1] |
COLLAR
|
|
| 28. |
XJDH-00152
|
[1] |
BOLT
|
|
| 29. |
XJDH-00280
|
[1] |
WASHER
|
|
| 30. |
XJDH-01415
|
[1] |
COVER-BOOM CYLINDER
|
|
| 31. |
XJDH-02886
|
[1] |
BOLT
|
|
| 32. |
XJDH-00280
|
[1] |
WASHER
|
|
| 33. |
XJDH-01524
|
[2] |
TUBE-VINYL
|
|
