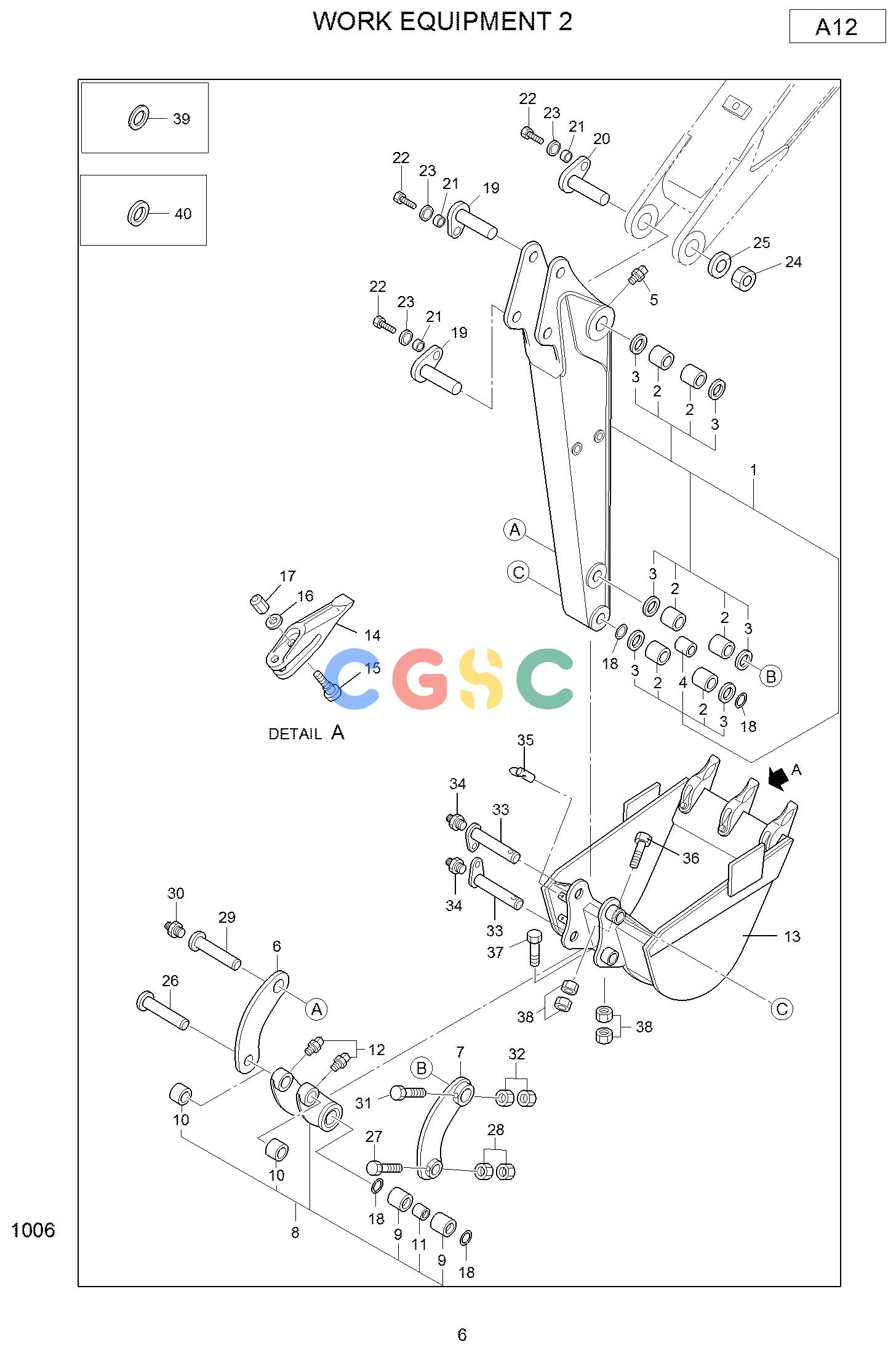

现代零件查询R15-7 WORK EQUIPMENT 2EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 683 次

Pos.	Part No	Qty	Parts name
1.	XJDH-01303	[1]	ARM
2.	XJDH-01420	[2]	BUSHING
3.	XJDH-01421	[4]	BUSHING
4.	XJDH-00362	[2]	SEAL-DUST
5.	XJDH-02924	[4]	SEAL-DUST
6.	XJDH-01304	[1]	PIPE
7.	XJDH-00373	[1]	NIPPLE-GREASE
8.	XJDH-01432	[1]	PIN-ARM CYLINDER ROD
9.	XJDH-01181	[1]	COLLAR
10.	XJDH-00152	[1]	BOLT
11.	XJDH-00280	[1]	WASHER
12.	XJDH-01431	[1]	PIN-BOOM ARM
13.	XJDH-00199	[1]	NUT-U
14.	XJDH-03726	[1]	WASHER
15.	XJDH-01181	[1]	COLLAR
16.	XJDH-00152	[1]	BOLT
17.	XJDH-00280	[1]	WASHER
18.	XJDH-01432	[1]	PIN-ARM CYLINDER ROD
19.	XJDH-01181	[1]	COLLAR
20.	XJDH-00152	[1]	BOLT
21.	XJDH-00280	[1]	WASHER
22.	XJDH-03385	[1]	BUCKET
23.	XJDH-01427	[2]	PIN-BUCKET
24.	XJDH-00373	[2]	NIPPLE-GREASE
25.	XJDH-02870	[2]	BOLT
26.	XJDH-00165	[4]	NUT
27.	XJDH-01422	[1]	LINK-BUCKET (R)
28.	XJDH-01424	[1]	LINK-BUCKET (L)
29.	XJDH-01426	[1]	PIN-BUCKET LINK
30.	XJDH-00373	[1]	NIPPLE-GREASE
31.	XJDH-02870	[1]	BOLT
32.	XJDH-00165	[2]	NUT
33.	XJDH-01425	[1]	PIN-BUCKET CYLINDER
34.	XJDH-02870	[1]	BOLT
35.	XJDH-00165	[2]	NUT
36.	XJDH-01423	[1]	LINK-DUMP
37.	XJDH-01421	[2]	BUSHING
38.	XJDH-02924	[2]	SEAL-DUST
39.	XJDH-00377	[2]	NIPPLE-GREASE 90
40.	XJDH-02923	[4]	O-RING
41.	XJDH-01192	[AR]	SHIM(A, 0.5T)
42.	XJDH-01193	[AR]	SHIM(B, 1.0T)
43.	XJDH-01198	[AR]	SHIM(0.5T)
44.	XJDH-01199	[AR]	SHIM(1.0T)
45.	XJDH-01418	[AR]	SHIM
46.	XJDH-01419	[AR]	SHIM
47.	XJDH-04298	[2]	SIDE CUTTER
48.	XJDH-04300	[3]	TOOTH
