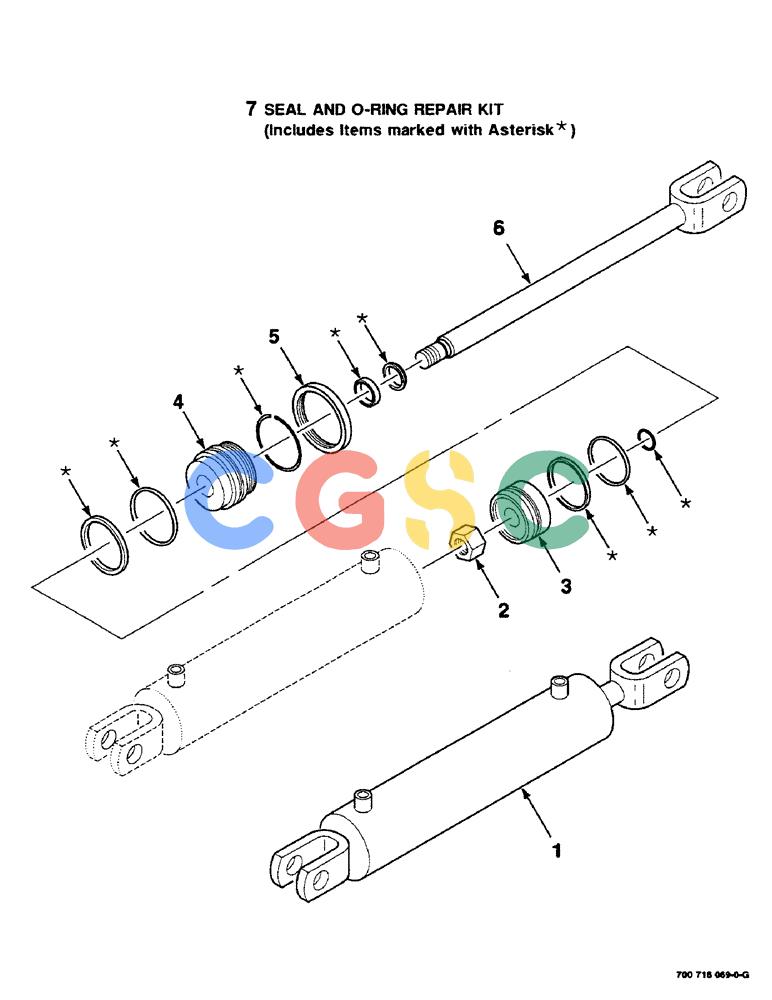

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (8-12) - HYD. CYL. ASSY., UPPER BALE TENSION, 700716069 HYD. CYL. ASSY. COMPLETE, 2-3/4" BORE X 12" STROKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
740 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700719660
|
[1] |
CYLINDER
|
HFI
HYDRAULIC CYLINDER ASM. COMPLETE (2-3/4 Inch Bore x 12 Inch Stroke) Replaces 700716069
|
| 2. |
774315
|
[1] |
NUT
|
CAS
7/8-14 HTLN GR C
|
| 3. |
700716633
|
[1] |
PISTON
|
CAS
|
| 4. |
700718153
|
[1] |
GUIDE
|
CAS
- rod
|
| 5. |
700716637
|
[1] |
NUT
|
CAS
SPANNER NUT
|
| 6. |
700718152
|
[1] |
ROD
|
CAS
- piston
|
| 7. |
700718151
|
[1] |
KIT
|
CAS
SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk
|
