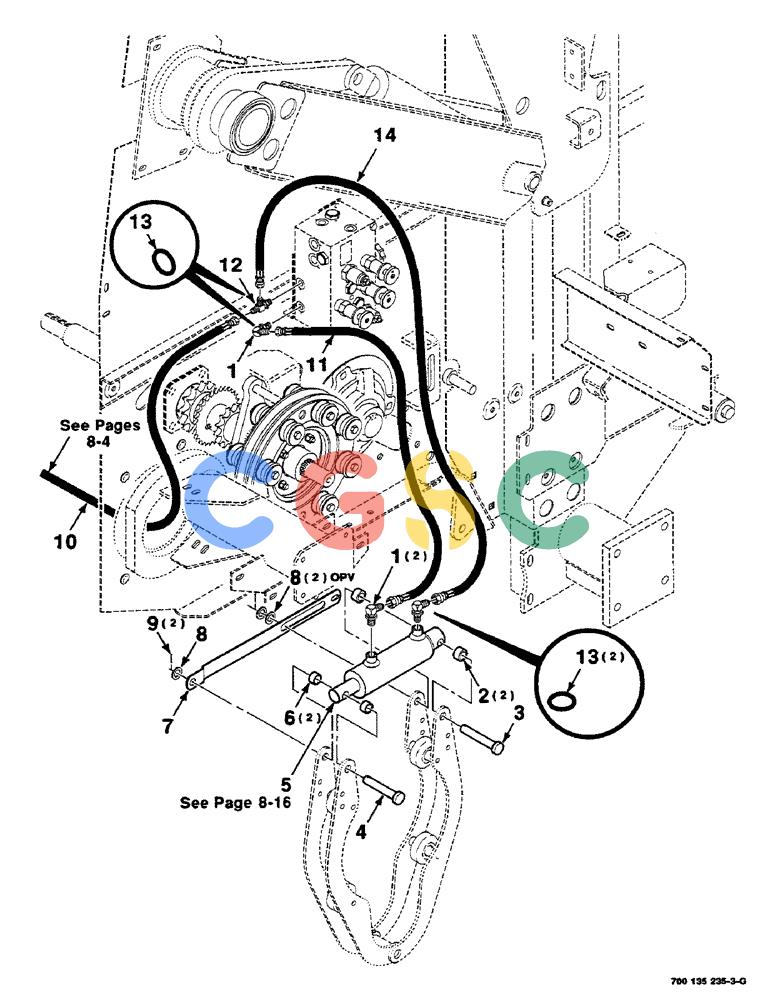

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (8-14) - CLUTCH CONTROL HYDRAULIC ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes item 13) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring Superseded by part number: 76344, 72186128
|
| 2. |
254409
|
[2] |
SPACER
|
HFI
|
| 3. |
439-11060
|
[1] |
HEADED PIN,15.88mm OD x 95.25mm L
|
CAS
5/8 X 3-3/4 CLEVIS PIN
|
| 4. |
863498
|
[1] |
CLEVIS PIN
|
CAS
5/8 X 3-1/2 CLEVIS PIN
|
| 5. |
700711910
|
[1] |
CYLINDER ASSY.
|
IH
CYLINDER ASSEMBLY - hydraulic
|
| 6. |
320993R1
|
[2] |
SPACER,7/8" Tube x 1/2"
|
IH
|
| 7. |
700151475
|
[1] |
SUPPORT
|
HFI
- actuator
|
| 8. |
52233
|
[3] |
BUSHING
|
CAS
5/8 X 14 GAUGE NRMB Superseded by part number: 51200381
|
| 9. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 10. |
700714822
|
[1] |
HYDRAULIC HOSE,0.38" ID x 110.24", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 11. |
700709249
|
[1] |
HYDRAULIC HOSE,6.35 mm ID x 650.00 mm, SAE 100R1
|
CAS
6.35 mm ID x 650.00 mm, SAE 100R1
|
| 12. |
218-5243
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 13) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 13. |
738468
|
[3] |
O-RING
|
IH
|
| 14. |
700714593
|
[1] |
HYDRAULIC HOSE,0.25" ID x 17.72", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
