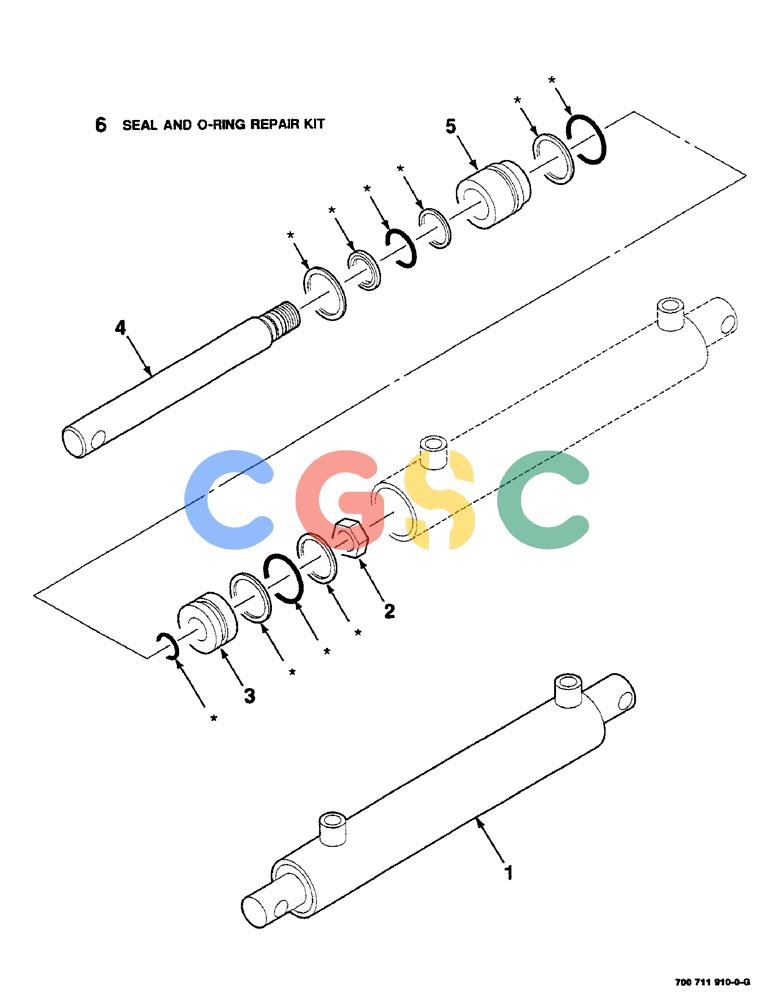

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (8-16) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
494 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700711910
|
[1] |
CYLINDER ASSY.
|
IH
HYDRAULIC CYLINDER ASM. COMPLETE (2 In Bore x 4 In Stroke)
|
| 2. |
700707418
|
[1] |
JAM NUT
|
CAS
7/8-14 UNF HJN
|
| 3. |
700707419
|
[1] |
PISTON
|
CAS
|
| 4. |
700711955
|
[1] |
PISTON ROD
|
CAS
ROD - piston
|
| 5. |
700711112
|
[1] |
GUIDE
|
CAS
- rod
|
| 6. |
700711114
|
[1] |
SEAL KIT
|
L
SEAL AND O-RING REPAIR KI, Includes items in art marked with asterisk
|
