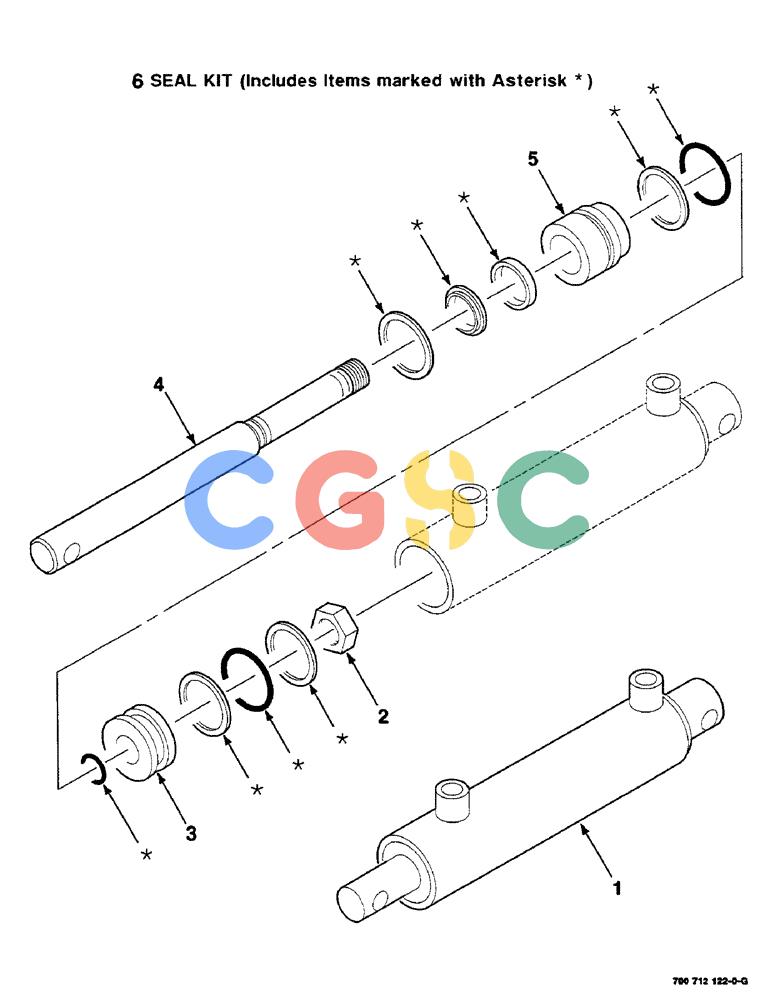

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (8-34) - HYDRAULIC CYLINDER ASSEMBLY, MESH WRAP, 700712122 HYD. CYL. ASSY. COMPLETE, 2" BORE DIA. X 8" STROKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700712122
|
[1] |
CYLINDER
|
CAS
HYDRAULIC CYLINDER ASM. COMPLETE, 2 In. bore diameter x 8 In. stroke
|
| 2. |
700707418
|
[1] |
JAM NUT
|
CAS
7/8-14 HEX JAM NUT
|
| 3. |
700707419
|
[1] |
PISTON
|
CAS
|
| 4. |
700709465
|
[1] |
ROD
|
CAS
|
| 5. |
700711112
|
[1] |
GUIDE
|
CAS
- rod
|
| 6. |
700711114
|
[1] |
SEAL KIT
|
L
SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk
|
