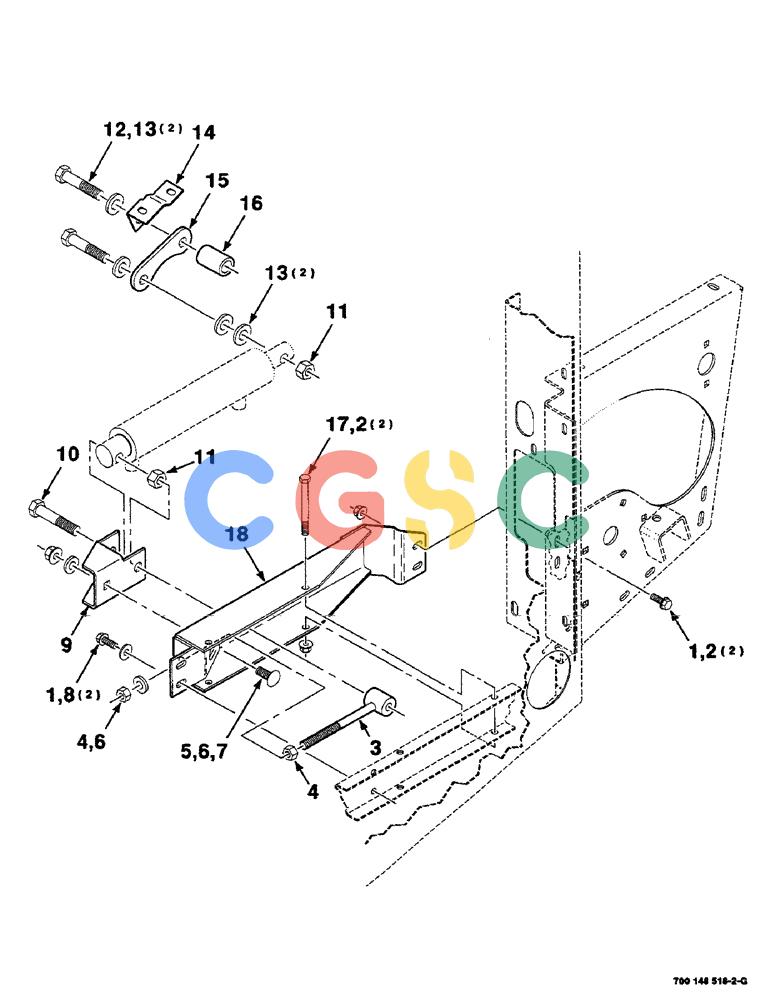

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (8-36) - HYDRAULIC CYLINDER MOUNTING ASSEMBLY, MESH WRAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 2. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
700148800
|
[1] |
SPECIAL BOLT
|
HFI
DRAWBOLT WA
|
| 4. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 5. |
433-820
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 6. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 7. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 8. |
496-81010
|
[2] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 9. |
700148797
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING WA
|
| 10. |
413-1052
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
|
CAS
5/8-11 X 3-1/4 C Superseded by part number: 9827853
|
| 11. |
425-1010
|
[3] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 12. |
413-1048
|
[2] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 13. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 14. |
700148804
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - switch
|
| 15. |
700148801
|
[1] |
REINFORCEMENT
|
HFI
REINF
|
| 16. |
6252563
|
[1] |
SPACER
|
HFI
|
| 17. |
413-664
|
[2] |
BOLT,Hex, 3/8" - 16 x 4", Gr 5
|
CAS
3/8-16 X 4 C Superseded by part number: 80012047
|
| 18. |
700148792
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING WA
|
