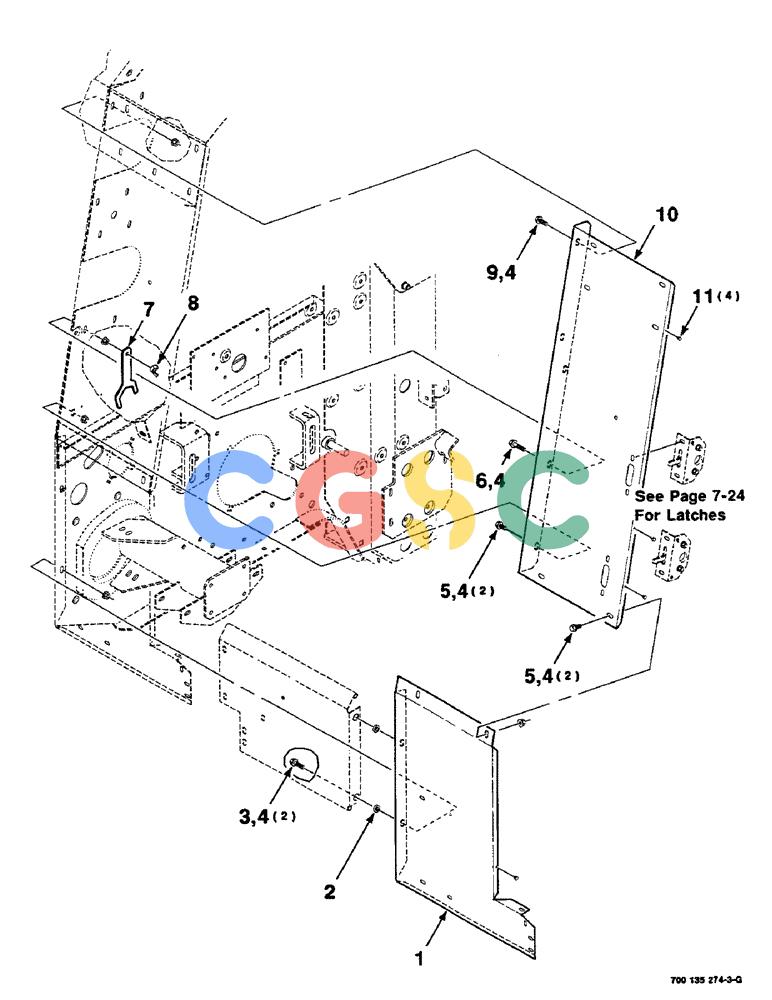

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (7-18) - LATCH SUPPORT ASSEMBLIES, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700135677
|
[1] |
SHIELD
|
HFI
- lower, left
|
| 2. |
700150182
|
[1] |
SPACER
|
HFI
|
| 3. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 4. |
232-5316
|
[8] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 6. |
700711084
|
[1] |
BOLT
|
CAS
3/8-16 X 1-1/2 HFS GR8
|
| 7. |
700135666
|
[1] |
SPECIAL WRENCH
|
HFI
WRENCH
|
| 8. |
129-410
|
[1] |
WING NUT,3/8"-16
|
CAS
3/8-16 WING NUT GR2
|
| 9. |
121-226
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 10. |
700150809
|
[1] |
SHIELD
|
HFI
- upper, left (Includes decals)
|
| 11. |
700715104
|
[4] |
BUMPER
|
CAS
|
