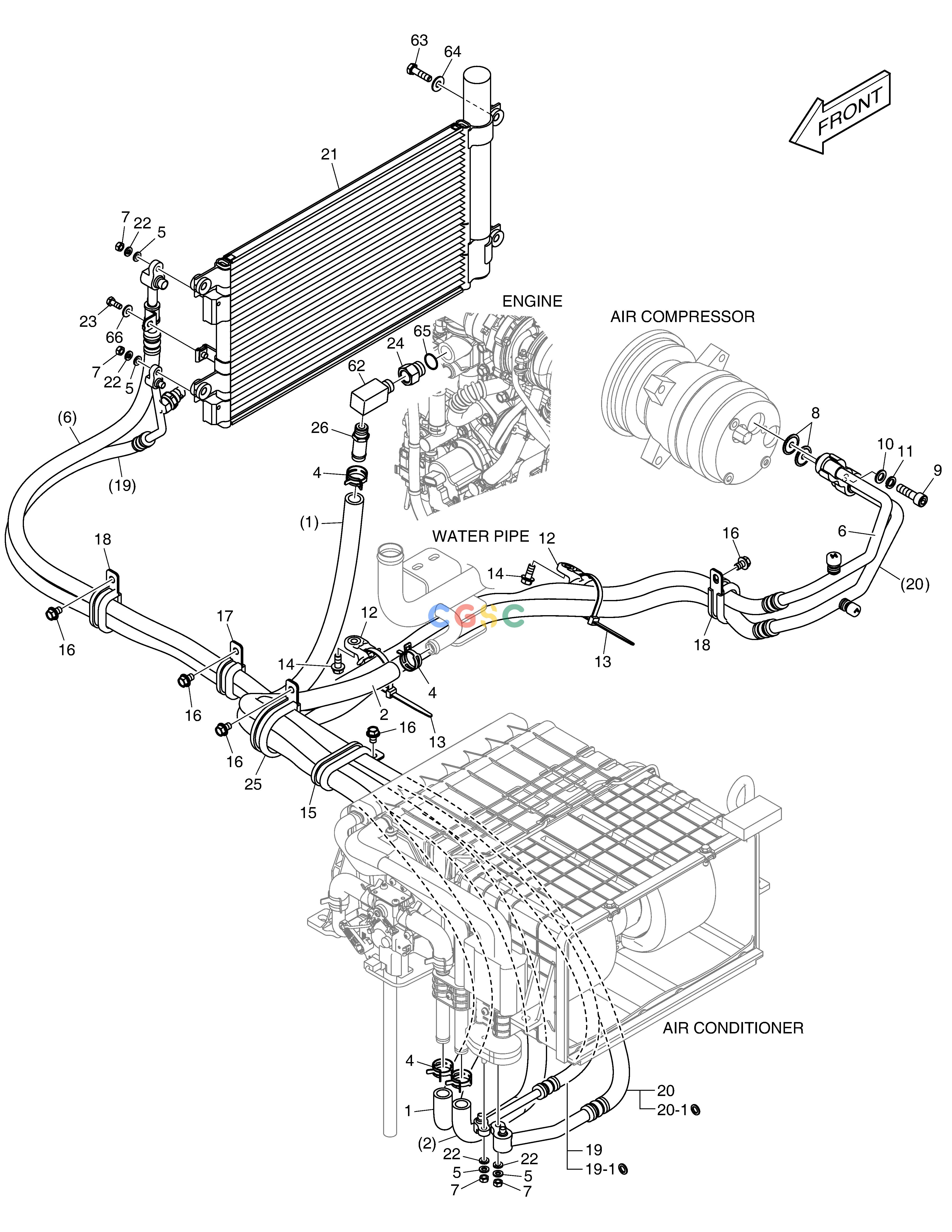

斗山零件查询AIR CONDITIONER - CHASSIS E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
694 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00618
|
[-] |
|
|
| 1. |
420104-00074
|
[1] |
|
|
| 10. |
S5020603
|
[1] |
WASHER;PLAIN M10
|
|
| 11. |
S5110603
|
[1] |
WASHER
|
|
| 12. |
110420-00330
|
[2] |
BRACKET
|
|
| 13. |
310101-00035
|
[2] |
TIE,CABLE
|
|
| 14. |
120106-00596
|
[2] |
BOLT
|
|
| 15. |
124-00209D8
|
[1] |
CLIP
|
|
| 16. |
K1001029
|
[5] |
BOLT
|
|
| 17. |
124-00209D1
|
[1] |
CLIP
|
|
| 18. |
124-00209D4
|
[2] |
CLIP
|
|
| 19. |
420102-00516E
|
[1] |
|
|
| 19-1. |
K1011388
|
[2] |
O-RING
|
|
| 2. |
420109-00721
|
[1] |
|
|
| 20. |
420102-00656
|
[1] |
|
|
| 20-1. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 21. |
440204-00024A
|
[1] |
CONDENSER ASSY
|
|
| 22. |
S5102303
|
[4] |
. WASHER
|
|
| 23. |
S0504666
|
[1] |
BOLT
|
|
| 24. |
430201-00952A
|
[1] |
|
|
| 25. |
124-00208D9
|
[1] |
CLIP
|
|
| 26. |
DS2228013
|
[1] |
|
|
| 4. |
DS2807028
|
[4] |
|
|
| 5. |
S5000313
|
[4] |
WASHER
|
|
| 6. |
420102-00657A
|
[1] |
|
420102-00657B
|
| 6. |
420102-00657B
|
[1] |
|
|
| 62. |
430201-01466
|
[1] |
|
|
| 63. |
S0509266
|
[4] |
BOLT
|
|
| 64. |
DS0401202
|
[4] |
|
|
| 65. |
S8040081
|
[1] |
O-RING
|
|
| 66. |
2114-1058D52
|
[1] |
WASHER
|
|
| 7. |
S4012303
|
[4] |
NUT
|
|
| 8. |
2180-1219
|
[2] |
WASHER;SEAL
|
|
| 9. |
S2212366
|
[1] |
BOLT
|
|
