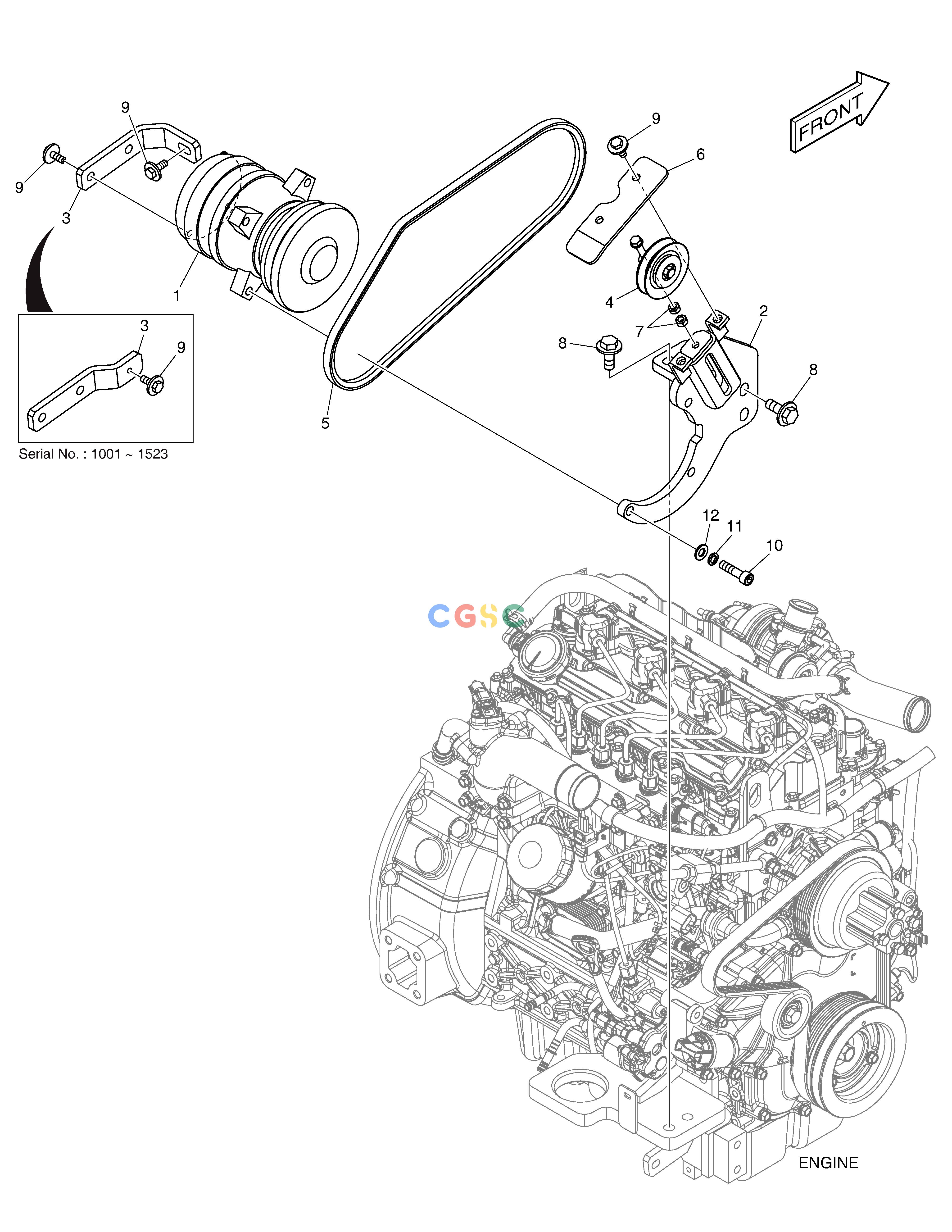

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 440205-00080 | [-] | ||
| 1. | 2208-6012B | [1] | COMPRESSOR ASS'Y | |
| 10. | S2212466 | [3] | BOLT | |
| 11. | S5110603 | [3] | WASHER | |
| 12. | S5010613 | [3] | WASHER | |
| 2. | 110406-02515G | [1] | ||
| 3. | 110406-04953 | [1] | ||
| 3. | 110406-02518E | [1] | ||
| 4. | K1039681 | [1] | PULLEY | |
| 5. | DS3202030 | [1] | V-BELT(1150L) | |
| 6. | 110508-15131A | [1] | ||
| 7. | S4012533 | [2] | NUT | |
| 8. | DS0025027 | [4] | BOLT | |
| 9. | DS0025061 | [5] |
