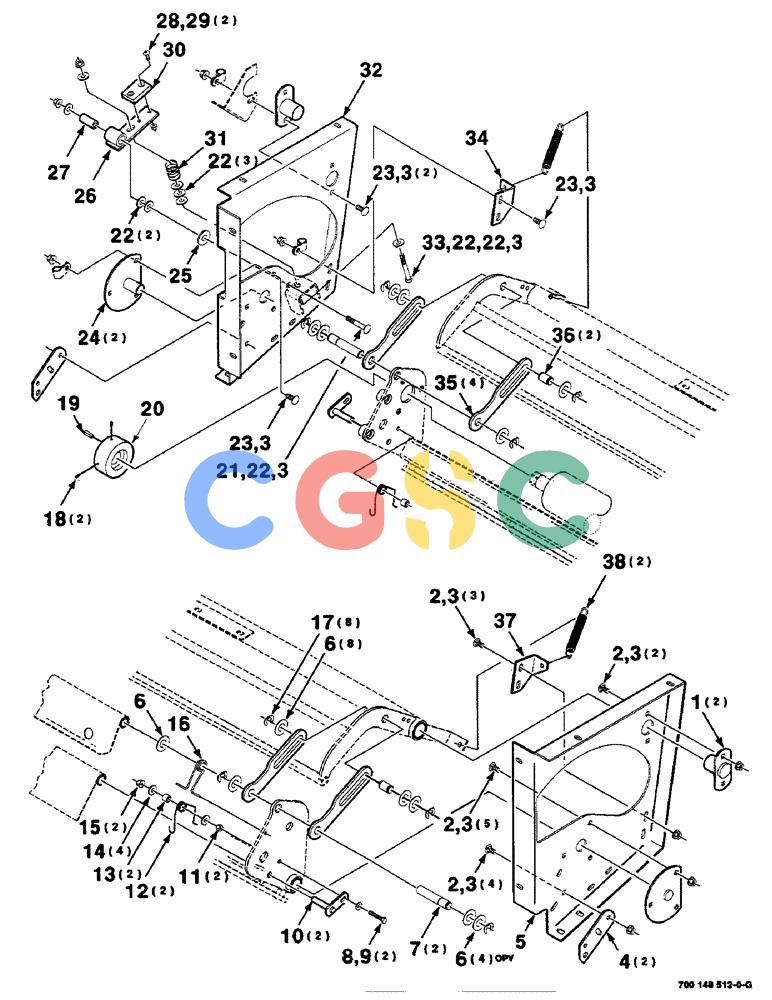

| 1. |
700148550
|
[2] |
MOUNTING PARTS
|
HFI
MOUNTING WA
|
| 2. |
433-612
|
[14] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 3. |
232-5316
|
[20] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700148547
|
[2] |
MOUNTING PARTS
|
HFI
MOUNTING
|
| 5. |
700148539
|
[1] |
PANEL
|
HFI
- L
|
| 6. |
195-2089
|
[13] |
WASHER,25/32" x 1 1/2" x .083"
|
CAS
3/4 X 18 GAUGE WRMB
|
| 7. |
700148543
|
[2] |
PIN
|
HFI
|
| 8. |
7772858
|
[2] |
BOLT,Hex, 5/16" x 1 3/4", Gr 5
|
CAS
5/16-18 X 1-3/4 FTC
|
| 9. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 10. |
700148545
|
[2] |
PIN
|
HFI
WA
|
| 11. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 12. |
700717039
|
[2] |
SPRING
|
CAS
- torsion
|
| 13. |
442178
|
[2] |
BUSHING
|
IH
|
| 14. |
495-61034
|
[4] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 15. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 16. |
700718011
|
[1] |
SPRING
|
CAS
- torsion
|
| 17. |
700718093
|
[8] |
RING
|
CAS
- retaining, Ext
|
| 18. |
83-516
|
[2] |
SET SCREW,Hex Soc, 5/16"-18 x 1"
|
CAS
5/16-18 X 1 CPHSSS NP
|
| 19. |
Q53
|
[1] |
KEY,1/4" Sq x 1", Par
|
IH
|
| 20. |
700148554
|
[1] |
DRUM
|
HFI
- brake
|
| 21. |
433-644
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5
|
CAS
3/8-16 X 2-3/4 RHSNB Superseded by part number: 280628
|
| 22. |
496-81010
|
[8] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 23. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 24. |
700148537
|
[2] |
MOUNTING PARTS
|
HFI
MOUNTING WA
|
| 25. |
700711557
|
[1] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 26. |
700125828
|
[1] |
SUPPORT
|
HFI
WA - brake
|
| 27. |
700109003
|
[1] |
BUSHING
|
CAS
|
| 28. |
440-12512
|
[2] |
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
|
CAS
GR60M Cross Pan Hd, 1/4"-20 x 3/4" Superseded by part number: 86511932
|
| 29. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 30. |
700710930
|
[1] |
PAD
|
CAS
BRAKE - pad
|
| 31. |
58107
|
[1] |
SPRING
|
IH
- compression
|
| 32. |
700148540
|
[1] |
PANEL
|
HFI
WA - R
|
| 33. |
413-644
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 2 3/4", G5 Superseded by part number: 88444
|
| 34. |
700148557
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - R
|
| 35. |
700148549
|
[4] |
STRAP
|
HFI
|
| 36. |
700148548
|
[2] |
PIN
|
HFI
|
| 37. |
700148556
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - L
|
| 38. |
7758220
|
[2] |
SPRING
|
CAS
- tension
|
