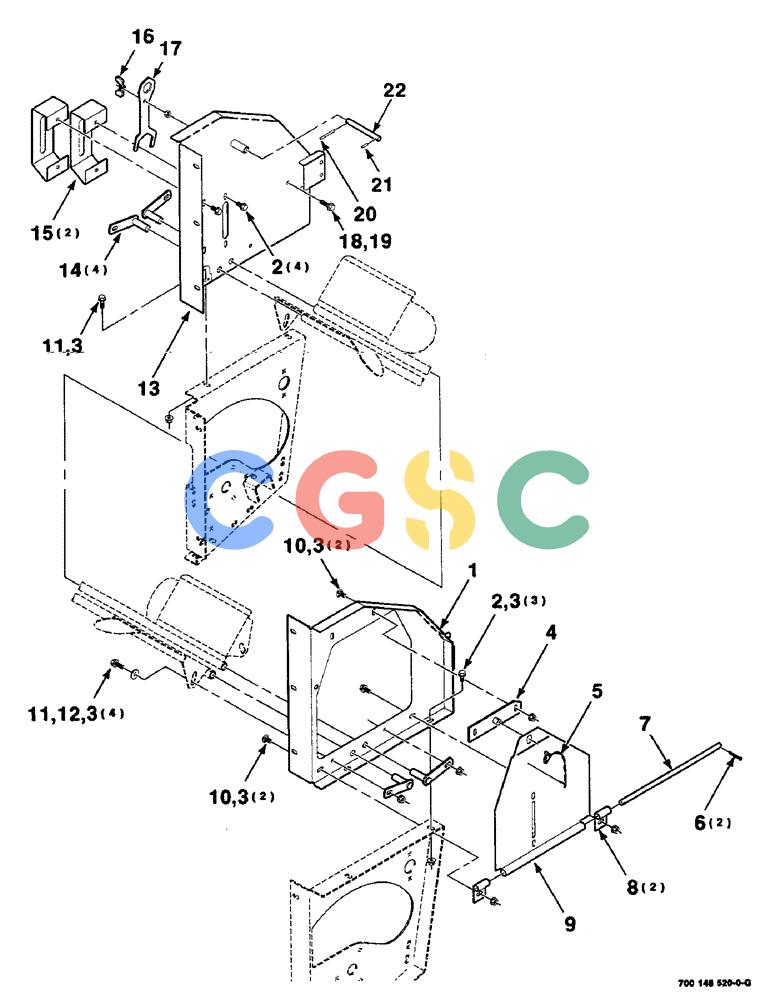

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (7-32) - MESH WRAP FRAME ASSEMBLY, UPPER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700148721
|
[1] |
PANEL
|
HFI
WA - light, upper
|
| 2. |
409-7612
|
[7] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 3. |
232-5316
|
[12] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700148570
|
[1] |
PIN
|
HFI
WA
|
| 5. |
863415
|
[1] |
PIN
|
CAS
KLIK PIN
|
| 6. |
432-816
|
[2] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 7. |
700148576
|
[1] |
PIN
|
HFI
|
| 8. |
700148568
|
[2] |
HINGE
|
HFI
|
| 9. |
700148567
|
[1] |
DOOR
|
HFI
|
| 10. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 11. |
121-226
|
[5] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 12. |
496-81010
|
[4] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 13. |
700148724
|
[1] |
PANEL
|
HFI
WA - right, upper
|
| 14. |
700148564
|
[4] |
BAR
|
HFI
WA
|
| 15. |
700148573
|
[2] |
STOP
|
HFI
WA
|
| 16. |
129-410
|
[1] |
WING NUT,3/8"-16
|
CAS
3/8-16 WING NUT GR2
|
| 17. |
700135666
|
[1] |
SPECIAL WRENCH
|
HFI
WRENCH
|
| 18. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 19. |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 20. |
438-11232
|
[1] |
LOCK PIN,3/16" x 2", Slotted
|
CAS
Pin, 3/16" x 2", Slotted
|
| 21. |
38-31212
|
[1] |
PIN,3/16" x 3/4", Coiled
|
CAS
Superseded by part number: 438-31212
|
| 22. |
700148575
|
[1] |
PIN
|
HFI
|
