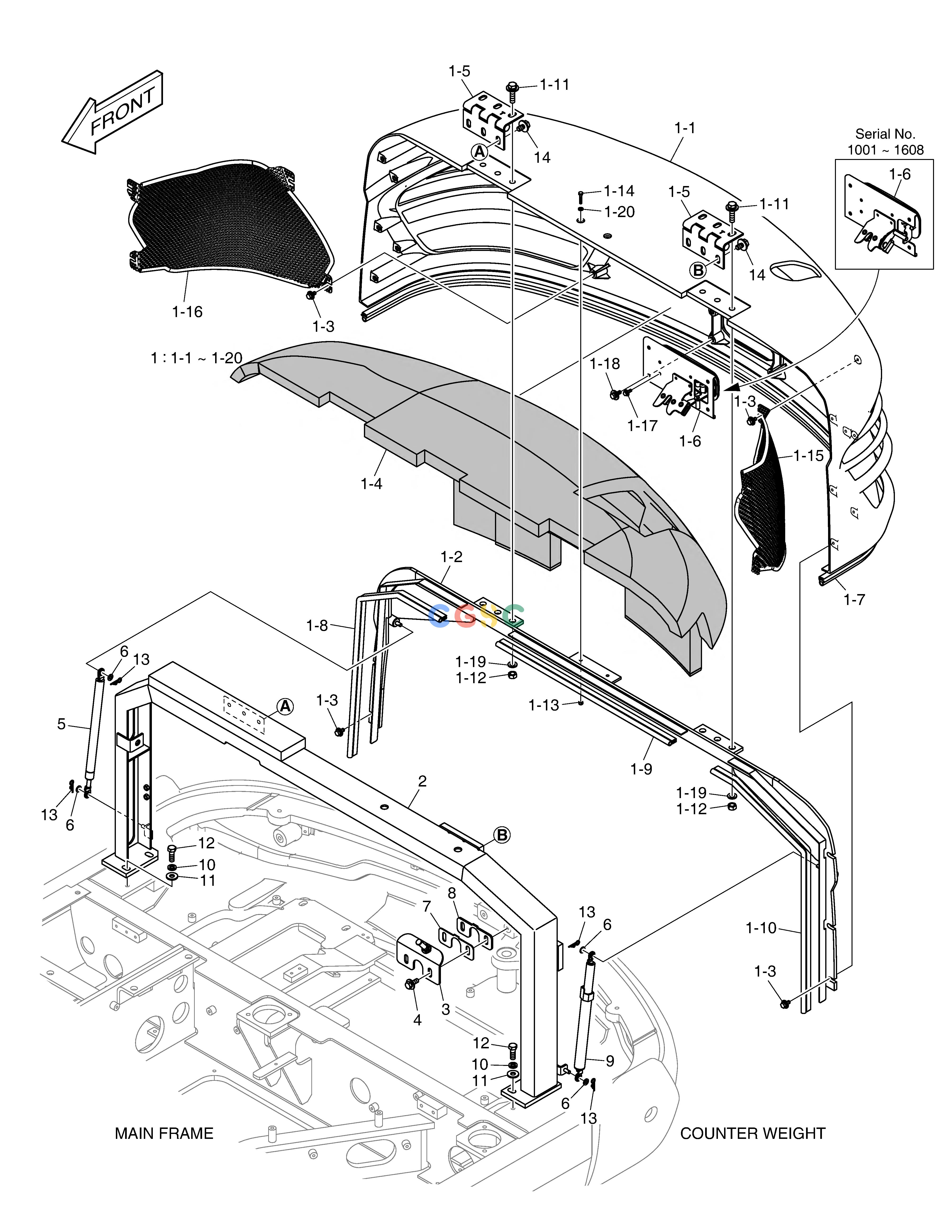

斗山零件查询BONNET E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110501-00396
|
[-] |
|
|
| 1. |
110501-00226K-H
|
[1] |
|
110501-00226M-H
|
| 1. |
110501-00226M-H
|
[1] |
|
|
| 1. |
110501-00226N-H
|
[1] |
|
|
| 1-1. |
110501-00227E-H
|
[1] |
|
|
| 1-10. |
220214-00091
|
[1] |
|
|
| 1-10. |
220214-00091A
|
[1] |
|
|
| 1-11. |
DS0025064
|
[6] |
|
|
| 1-12. |
S4012733
|
[6] |
NUT
|
|
| 1-13. |
121-00042D4
|
[2] |
NUT,LOCK
|
|
| 1-14. |
S0505266
|
[2] |
BOLT
|
|
| 1-15. |
110406-02548B
|
[1] |
|
|
| 1-16. |
110406-02550B
|
[1] |
|
|
| 1-17. |
DS0025056
|
[4] |
BOLT
|
|
| 1-18. |
DS0025032
|
[4] |
BOLT;SET
|
|
| 1-19. |
S5000713
|
[6] |
WASHER;PLAIN
|
|
| 1-2. |
160609-03331E
|
[1] |
|
|
| 1-2. |
160609-03331G
|
[1] |
|
|
| 1-2. |
160609-03331H
|
[1] |
|
|
| 1-20. |
S5010313
|
[2] |
WASHER
|
|
| 1-3. |
DS0025033
|
[14] |
BOLT
|
|
| 1-4. |
180309-00187B
|
[1] |
|
|
| 1-4. |
180309-00187C
|
[1] |
|
|
| 1-5. |
K1027405B
|
[2] |
HINGE
|
|
| 1-6. |
100601-00088A
|
[1] |
|
100601-00088C
|
| 1-6. |
100601-00088C
|
[1] |
|
|
| 1-7. |
220214-00079
|
[1] |
|
|
| 1-8. |
220214-00086
|
[1] |
|
|
| 1-8. |
220214-00086A
|
[1] |
|
|
| 1-9. |
K1040680
|
[1] |
TRIM;RUBBER
|
|
| 10. |
S5102703
|
[4] |
WASHER
|
|
| 11. |
2114-1058D33
|
[4] |
WASHER
|
|
| 12. |
S0515366
|
[4] |
BOLT
|
|
| 13. |
2123-1441D4
|
[4] |
PIN
|
|
| 14. |
DS0025019
|
[6] |
BOLT
|
|
| 2. |
110958-02106K
|
[1] |
|
|
| 3. |
101583-00083B
|
[1] |
|
|
| 4. |
DS0025016
|
[2] |
BOLT
|
|
| 5. |
K1036818
|
[1] |
CYLINDER;GAS
|
|
| 6. |
S5010513
|
[4] |
WASHER
|
|
| 7. |
110951-01161
|
[1] |
|
|
| 8. |
110951-01162
|
[1] |
|
|
| 9. |
400315-00008
|
[1] |
|
|
