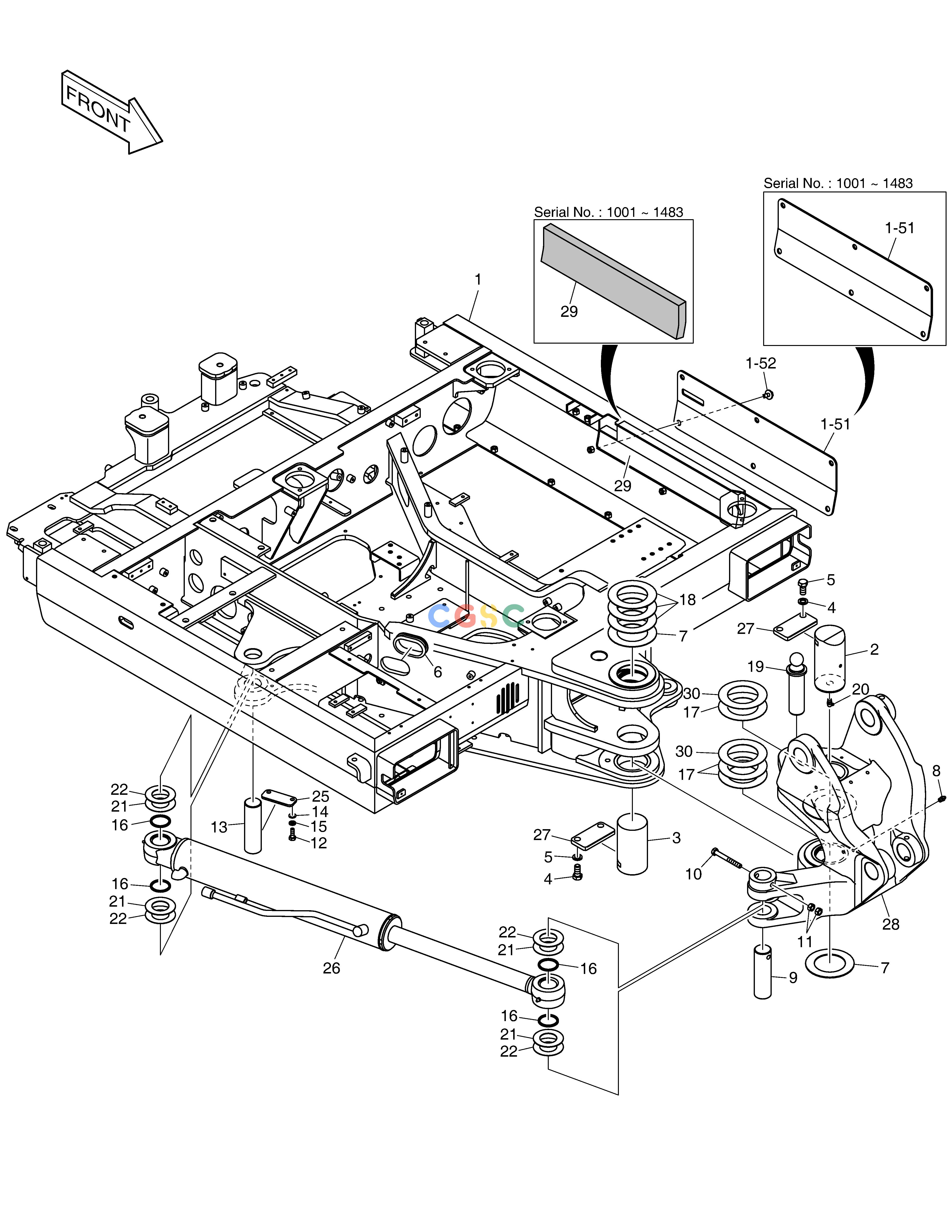

斗山零件查询BOOM SWING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160620-00668
|
[-] |
|
|
| 1. |
160620-00463L-L
|
[1] |
|
|
| 1. |
160620-00463N-L
|
[1] |
|
|
| 1-51. |
110517-00746-L
|
[1] |
|
|
| 1-51. |
110517-01296-L
|
[1] |
|
|
| 1-52. |
DS0025023
|
[6] |
BOLT
|
|
| 10. |
S0561866
|
[1] |
BOLT
|
|
| 11. |
S4012733
|
[2] |
NUT
|
|
| 12. |
S0512266
|
[2] |
BOLT
|
|
| 13. |
120501-02724
|
[1] |
|
|
| 14. |
S5102603
|
[2] |
. WASHER
|
|
| 15. |
S5010613
|
[2] |
WASHER
|
|
| 16. |
2180-1106BD12
|
[4] |
SEAL;DUST
|
|
| 17. |
2114-1059D168
|
[3] |
SHIM
|
|
| 18. |
2114-1059D169
|
[3] |
SHIM
|
|
| 19. |
K1027303
|
[1] |
PIN;LOCK
|
|
| 2. |
120501-00627A
|
[1] |
|
|
| 20. |
S6710101
|
[1] |
NIPPLE;GREASE
|
|
| 21. |
DS7752087
|
[4] |
SHIM
|
|
| 22. |
DS7752088
|
[4] |
SHIM
|
|
| 25. |
250201-03593
|
[1] |
|
|
| 26. |
400333-00001A-L
|
[1] |
|
|
| 27. |
250201-03591-L
|
[2] |
|
|
| 28. |
110404-00015G-L
|
[1] |
|
|
| 29. |
180309-00191
|
[1] |
|
|
| 29. |
180309-00592
|
[1] |
|
|
| 3. |
120501-00628A
|
[1] |
|
|
| 30. |
2114-1059D167
|
[2] |
SHIM
|
|
| 4. |
S0521366
|
[4] |
BOLT
|
|
| 5. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
| 6. |
DS7601095
|
[1] |
GUIDE,RUBBER
|
|
| 7. |
K1033856
|
[2] |
SHIM
|
|
| 8. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 9. |
120501-00911
|
[1] |
|
|
