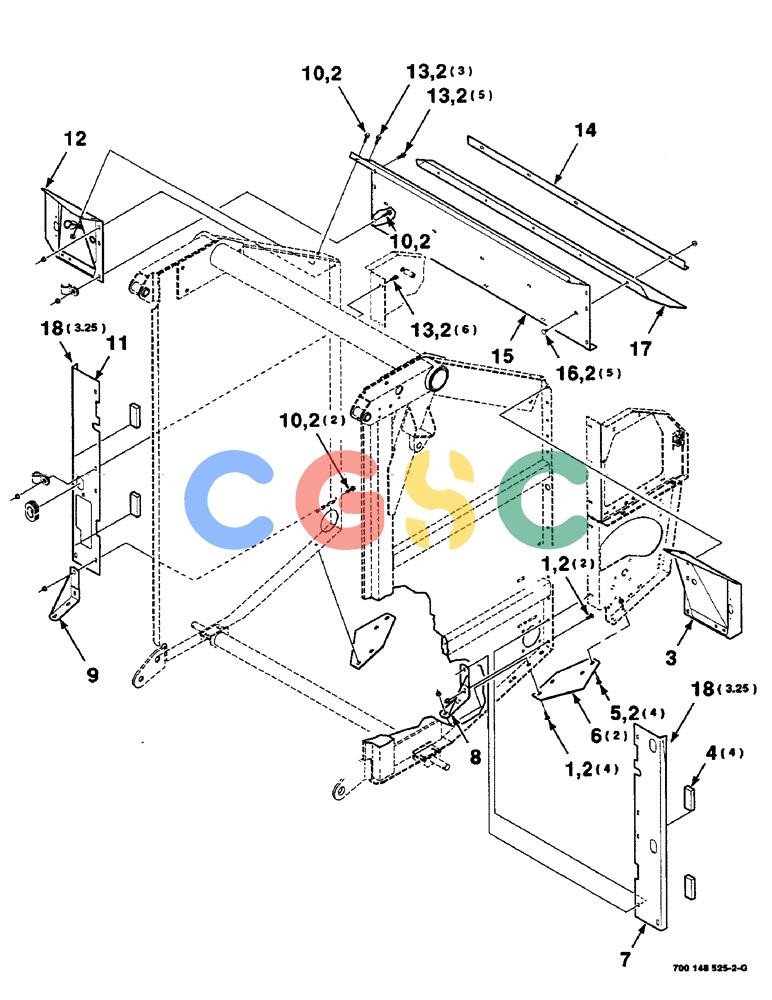

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (7-36) - TAILGATE SHIELDS, WITH MESH WRAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-620
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 2. |
232-5316
|
[33] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
700148671
|
[1] |
SUPPORT
|
HFI
WA - left
|
| 4. |
700717354
|
[4] |
PAD
|
CAS
- foam rubber
|
| 5. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 6. |
700148667
|
[2] |
SUPPORT
|
HFI
|
| 7. |
700148773
|
[1] |
ANGLE
|
HFI
- left
|
| 8. |
700151518
|
[1] |
SUPPORT
|
HFI
WA - left
|
| 9. |
700151519
|
[1] |
SUPPORT
|
HFI
WA - right
|
| 10. |
121-237
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 11. |
700148774
|
[1] |
ANGLE
|
HFI
- right
|
| 12. |
700148672
|
[1] |
SUPPORT
|
HFI
WA - right
|
| 13. |
121-226
|
[14] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 14. |
700148712
|
[1] |
ANGLE
|
HFI
|
| 15. |
700148711
|
[1] |
SUPPORT
|
HFI
- upper
|
| 16. |
433-612
|
[5] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 17. |
700717428
|
[1] |
SHIELD
|
CAS
- rubber
|
| 18. |
700717353
|
[6.5] |
TAPE
|
CAS
- 3M adhesive (Ft)
|
