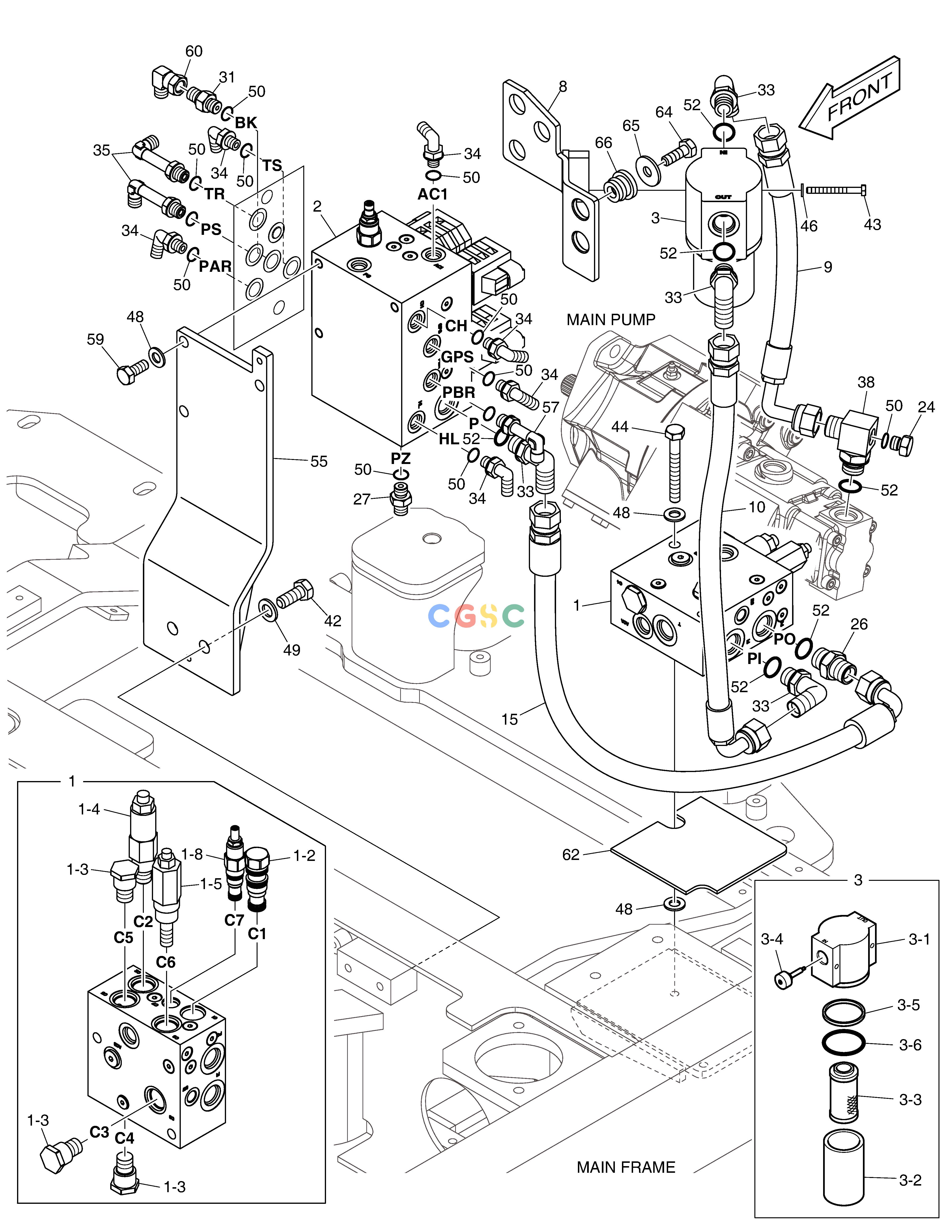

斗山零件查询BRAKE PIPING(3) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09585
|
[-] |
|
|
| 1. |
410102-00052B
|
[1] |
|
|
| 1-2. |
1.420-00069
|
[1] |
VALVE;LOGIC
|
|
| 1-3. |
K9002251
|
[3] |
VALVE;CHECK
|
|
| 1-4. |
410127-00432
|
[1] |
|
|
| 1-5. |
410146-00021
|
[1] |
|
|
| 1-8. |
410127-00431
|
[1] |
|
|
| 10. |
DS2055636
|
[1] |
HOSE
|
|
| 15. |
DS2055317
|
[1] |
HOSE
|
|
| 2. |
410135-00700A
|
[1] |
|
|
| 24. |
2181-1950D1
|
[1] |
PLUG
|
|
| 26. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 3. |
400407-00008
|
[1] |
FILTER,PILOT
|
|
| 3-1. |
NA00509
|
[1] |
. HEAD
|
|
| 3-2. |
110913-00333
|
[1] |
|
|
| 3-3. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 3-4. |
410128-00073
|
[1] |
|
|
| 3-5. |
401002-01472
|
[1] |
. O-RING
|
|
| 3-6. |
401002-01473
|
[1] |
. O-RING
|
|
| 31. |
181-00144D25
|
[1] |
ORIFICE
|
|
| 33. |
2181-1702D2
|
[4] |
ELBOW
|
|
| 34. |
2181-1702D4
|
[6] |
ELBOW
|
|
| 35. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 38. |
K1040063
|
[1] |
TEE
|
|
| 42. |
S0515266
|
[2] |
BOLT
|
|
| 43. |
S0553753
|
[2] |
BOLT
|
|
| 44. |
S0559166
|
[2] |
. BOLT M10X1.5X80
|
|
| 46. |
S5010316
|
[2] |
|
|
| 48. |
120804-00076
|
[7] |
WASHER
|
|
| 49. |
120804-00077
|
[2] |
WASHER
|
|
| 50. |
S8000111
|
[12] |
O-RING
|
|
| 52. |
S8000181
|
[6] |
O-RING
|
|
| 55. |
110425-00284A
|
[1] |
|
|
| 57. |
DS2281082
|
[1] |
ELBOW
|
|
| 59. |
S0512066
|
[3] |
. BOLT
|
|
| 60. |
181-00709
|
[1] |
ELBOW;UNION
|
|
| 62. |
180308-00568
|
[1] |
|
|
| 64. |
S0512266
|
[2] |
BOLT
|
|
| 65. |
2114-1058D10
|
[2] |
WASHER
|
|
| 66. |
198-00016
|
[2] |
RUBBER
|
|
| 8. |
110413-00162C
|
[1] |
|
|
| 9. |
DS2055748
|
[1] |
HOSE PF1/2-320L
|
|
