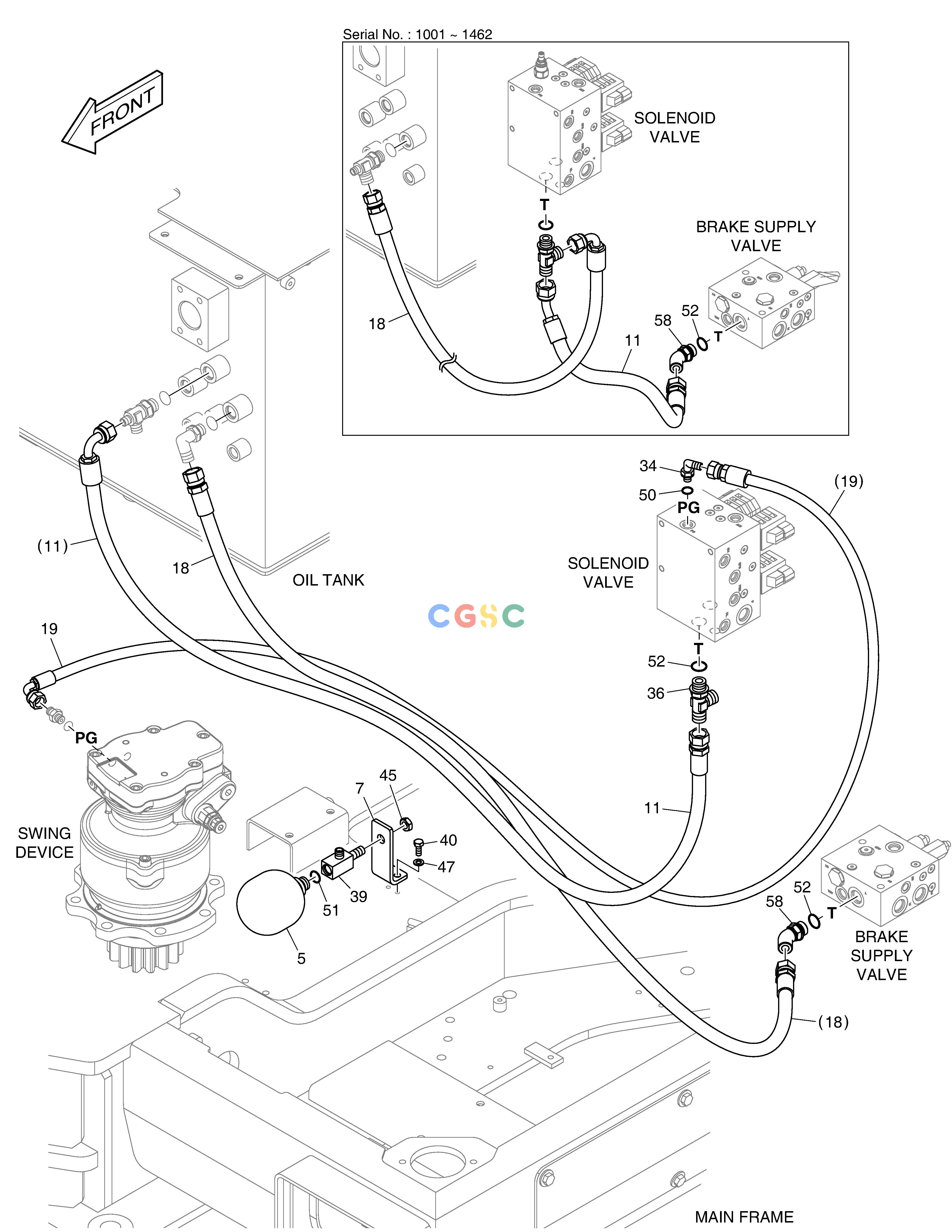

斗山零件查询BRAKE PIPING(2) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09585
|
[-] |
|
|
| 11. |
DS2054341
|
[1] |
HOSE
|
|
| 11. |
DS2053827
|
[1] |
HOSE
|
|
| 18. |
DS2055971
|
[1] |
|
|
| 18. |
DS2055318
|
[1] |
HOSE
|
|
| 19. |
DS20551415
|
[1] |
|
|
| 34. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 36. |
2181-1951D5
|
[1] |
TEE
|
|
| 36. |
2181-1951D19
|
[1] |
TEE
|
|
| 39. |
K1051925
|
[1] |
|
|
| 40. |
S0508866
|
[2] |
BOLT
|
|
| 45. |
121-00010D7
|
[1] |
NUT
|
|
| 47. |
S5020516
|
[2] |
|
|
| 5. |
2460-9054
|
[1] |
ACCUMULATOR
|
|
| 50. |
S8000111
|
[1] |
O-RING
|
|
| 51. |
S8000141
|
[1] |
O-RING
|
|
| 52. |
S8000181
|
[2] |
O-RING
|
|
| 58. |
2181-2419D3
|
[1] |
ELBOW
|
|
| 7. |
110406-03108
|
[1] |
|
|
